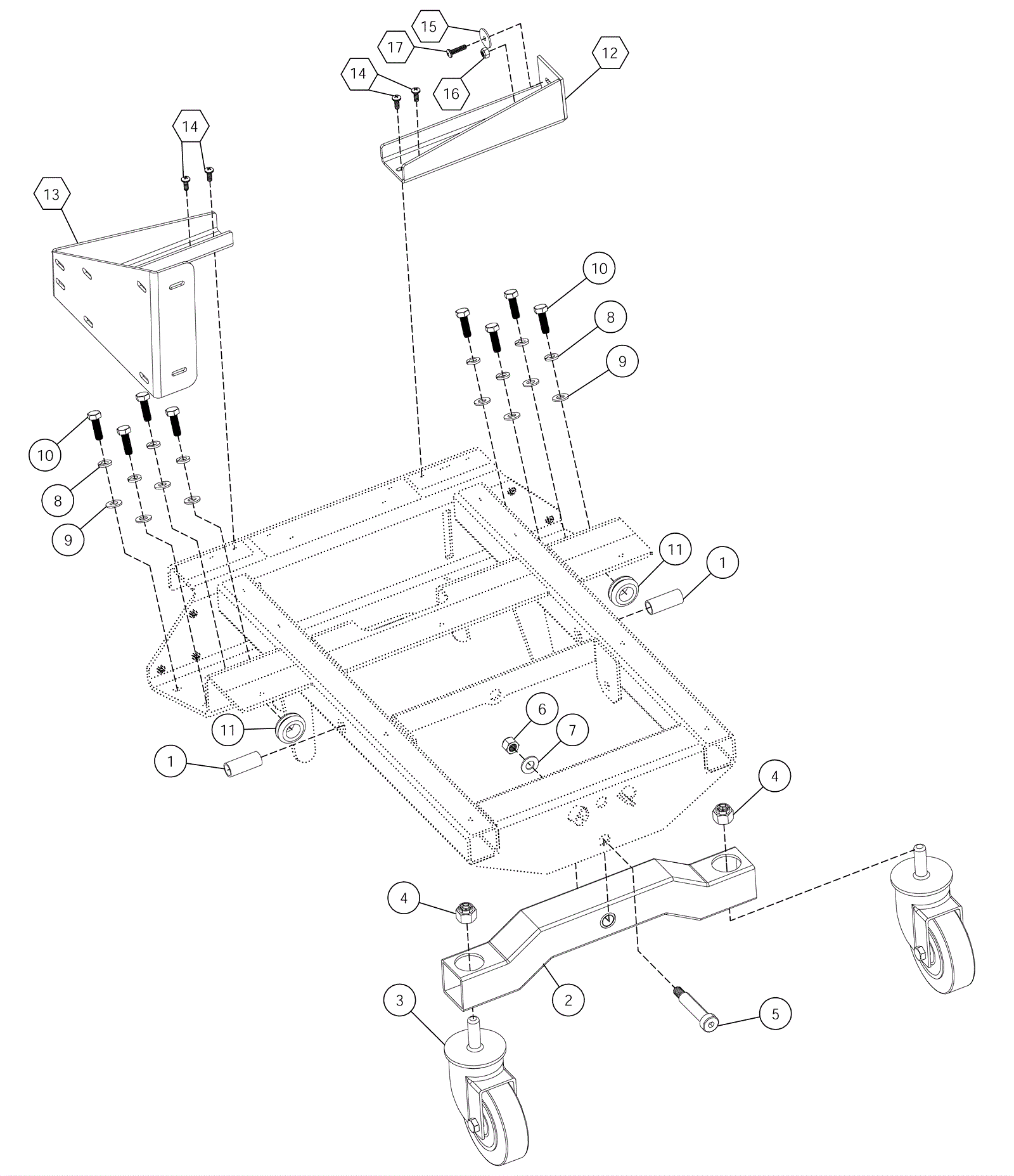

AEROBOT Rolling Chassis Subframe Assembly (2100025) -1

#PartDescriptionPriceReqNotesAvailability
1 292-9053 Bearing 1/2 x 5/8 inch Call for price 2 usually ships 30-75 days
2 292-9054 Caster pivot weldment Call for price 1 usually ships 30-75 days
3 292-9055 Caster swivel conductive wheel Call for price 2 usually ships 30-75 days
4 292-9056 Nut hex 1/2-13 Flex top expanding Call for price 2 usually ships 30-75 days
5 292-9057 Shoulder bolt socket 3/8-16 x 2 inch Call for price 1 usually ships 30-75 days
6 292-9058 Nut nylon insert 3/8-16 inch Call for price 1 usually ships 30-75 days
7 292-9059 3/8 inch Washer flat Call for price 1 usually ships 30-75 days
8 292-8856 Washer lock spring .31 Call for price 8 usually ships 30-75 days
9 292-8991 Washer flat 5/16 inch Call for price 8 usually ships 30-75 days
10 292-9060 Bolt hex m8-1.25mm x 25mm Call for price 8 usually ships 30-75 days
11 292-8828 Grommet panel $2.67 2 usually ships 30-75 days
12 292-9061 Lower tank brace Call for price 1 usually ships 30-75 days
13 292-9062 Left hand lower tank support Call for price 1 usually ships 30-75 days
14 292-8723 Phillips screw #10-24 x 1/2 inch Call for price 4 usually ships 30-75 days
15 292-8798 Washer flat Call for price 1 usually ships 30-75 days
16 292-8721 Nut, Nylon insert #10-24 Call for price 1 usually ships 30-75 days
17 292-9063 Screw machine pan phillips #10-24 x 0.75 Call for price 1 usually ships 30-75 days
