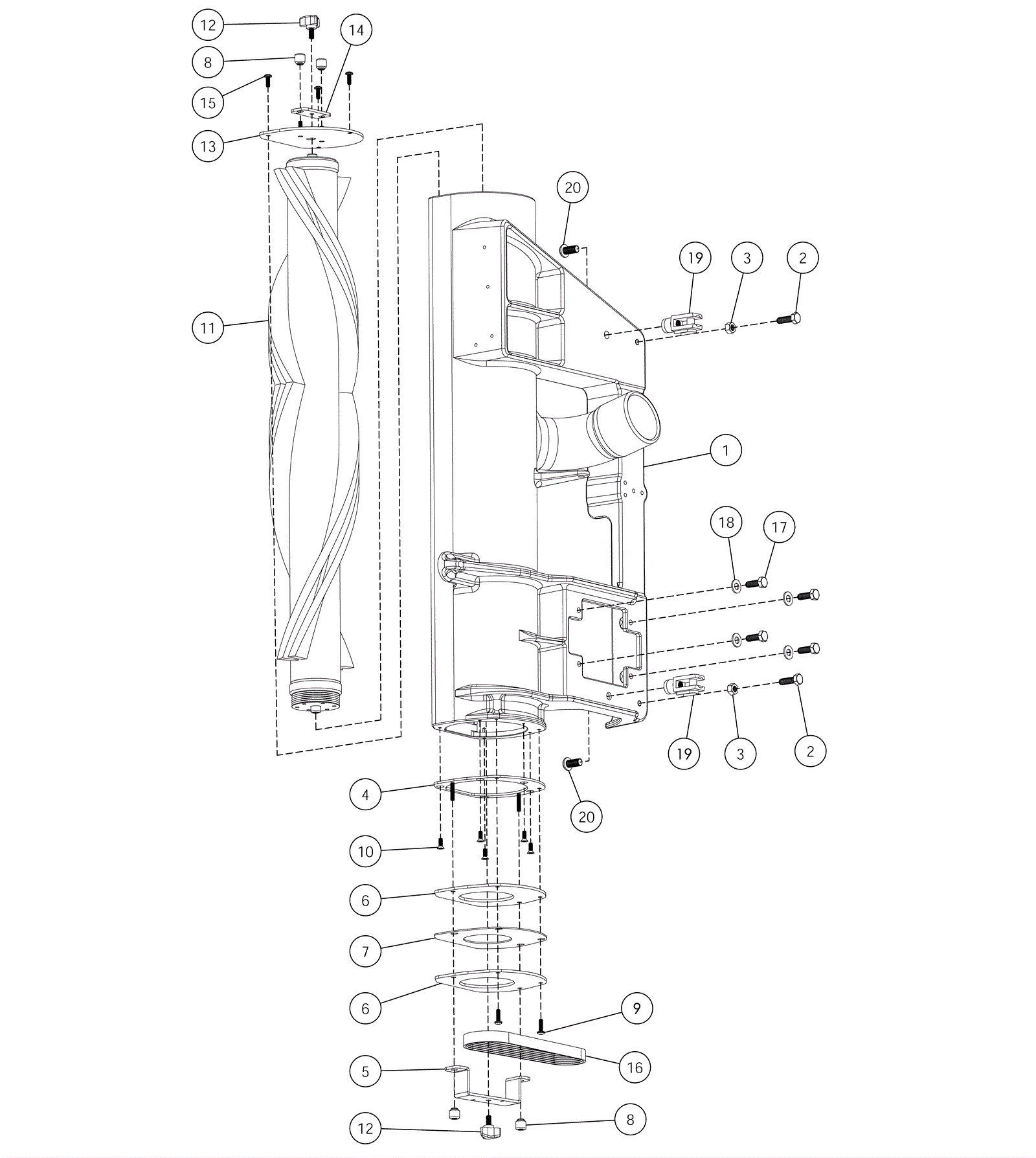

AEROBOT Vacuum Head Assembly (2100026) - 1

#PartDescriptionPriceReqNotesAvailability
1 292-8999 Vac head body complete Call for price 1 usually ships 30-75 days
2 292-9000 Bolt hex 5/16-18 X 1 inch Call for price 2 usually ships 30-75 days
3 292-8857 Nut hex 5/16"-18 Call for price 2 usually ships 30-75 days
4 292-9001 Left hand side plate weldment Call for price 1 usually ships 30-75 days
5 292-9002 Vacuum head side plate Call for price 1 usually ships 30-75 days
6 292-9003 Brush head end cap Call for price 2 usually ships 30-75 days
7 292-9004 Agitator end seal Call for price 1 usually ships 30-75 days
8 292-9005 Nut captive 10-32 Call for price 4 usually ships 30-75 days
9 292-8892 Machine screw pan phillips #10-24 x 5/8" Call for price 2 usually ships 30-75 days
10 292-8983 Screw machine flat phillips #10-24 x 1/2 inch Call for price 5 usually ships 30-75 days
11 292-9006 Brush vacuum beater bar Call for price 1 usually ships 30-75 days
12 292-9007 Knob 1/4-20 x 1/2 inch long - vac main broom Call for price 2 usually ships 30-75 days
13 292-9008 Right hand side plate weldment Call for price 1 usually ships 30-75 days
14 292-9009 Vacuum head formed side plate Call for price 1 usually ships 30-75 days
15 292-8723 Phillips screw #10-24 x 1/2 inch Call for price 3 usually ships 30-75 days
16 292-9010 Belt - main brush drive Call for price 1 usually ships 30-75 days
17 292-9011 Bolt - hex 5/16-18 x 7/8 inch Call for price 4 usually ships 30-75 days
18 292-8991 Washer flat 5/16 inch Call for price 4 usually ships 30-75 days
19 292-9012 3/8 inch Clevis rod end easy adapt $80.64 2 usually ships 30-75 days
20 292-9013 Socket cap screw hex socket 3/8 -24 x 3/4 inch Call for price 2 usually ships 30-75 days
