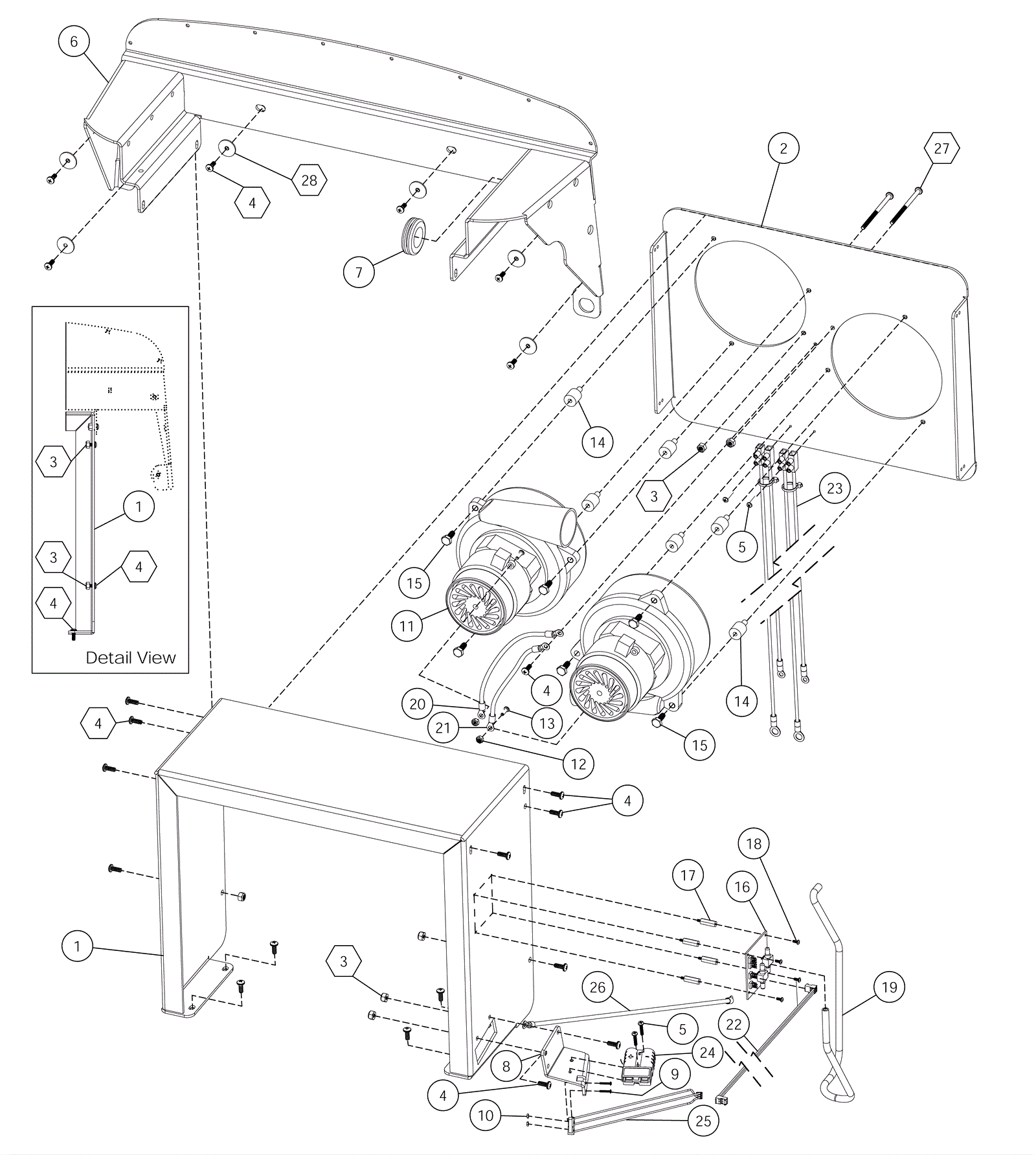

AEROBOT Rear Vacuum Motor Assembly (2100041) - Rear Interior

#PartDescriptionPriceReqNotesAvailability
1 292-8929 Rear support bracket Call for price 1 usually ships 30-75 days
2 292-8930 Suction motor mount plate Call for price 1 usually ships 30-75 days
3 292-8721 Nut, Nylon insert #10-24 Call for price 12 usually ships 30-75 days
4 292-8723 Phillips screw #10-24 x 1/2 inch Call for price 21 usually ships 30-75 days
5 292-8931 Screw machine pan phillips #6-32 x 3/4" Call for price 4 usually ships 30-75 days
6 292-8932 Control panel support weldment Call for price 1 usually ships 30-75 days
7 292-8824 Grommet 1 3/4" OD - 1/8" Call for price 1 usually ships 30-75 days
8 292-8933 Charger plug mount bracket Call for price 1 usually ships 30-75 days
9 292-8934 Screw machine pan phillips #2-56 x 1/2" Call for price 2 usually ships 30-75 days
10 292-8935 Nut hex #2-56 Call for price 2 usually ships 30-75 days
11 292-8936 Vacuum motor assembly Call for price 2 usually ships 30-75 days
12 292-8937 Nut nylon insert #6-32 Call for price 2 usually ships 30-75 days
13 292-8938 Screw machine pan philips #6-32 x 1/2" Call for price 2 usually ships 30-75 days
14 292-8939 Standoff round 0.25" x 0.625" $14.72 6 usually ships 30-75 days
15 292-8940 Bolt hex 1/4"-20 x 5/8" Call for price 6 usually ships 30-75 days
16 292-8941 Board - pressure sensor Call for price 1 usually ships 30-75 days
17 292-8811 Standoff hex $7.48 4 usually ships 30-75 days
18 292-8733 Phillips screw #4-40 x 1/4 inch Call for price 4 usually ships 30-75 days
19 292-8942 Hose Call for price 1 usually ships 30-75 days
20 292-8943 Vac motor ground wire harness Call for price 1 (for vac tank left motor) usually ships 30-75 days
21 292-8943 Vac motor ground wire harness Call for price 1 (for vac tank right motor) usually ships 30-75 days
22 292-8945 Vac pressure sensor board Call for price 1 usually ships 30-75 days
23 292-8946 Wire harness - vacuum motor (OBSOLETE) Call for price 2 usually ships 30-75 days
24 292-8947 Wire harness - charging $192.50 1 usually ships 30-75 days
25 292-8948 Wire harness - switch Call for price 1 usually ships 30-75 days
26 292-8949 Rear chassic ground wire harness Call for price 1 usually ships 30-75 days
27 292-8950 Screw machine pan phillips #10-24x 3" Call for price 2 usually ships 30-75 days
28 292-8798 Washer flat Call for price 6 usually ships 30-75 days
