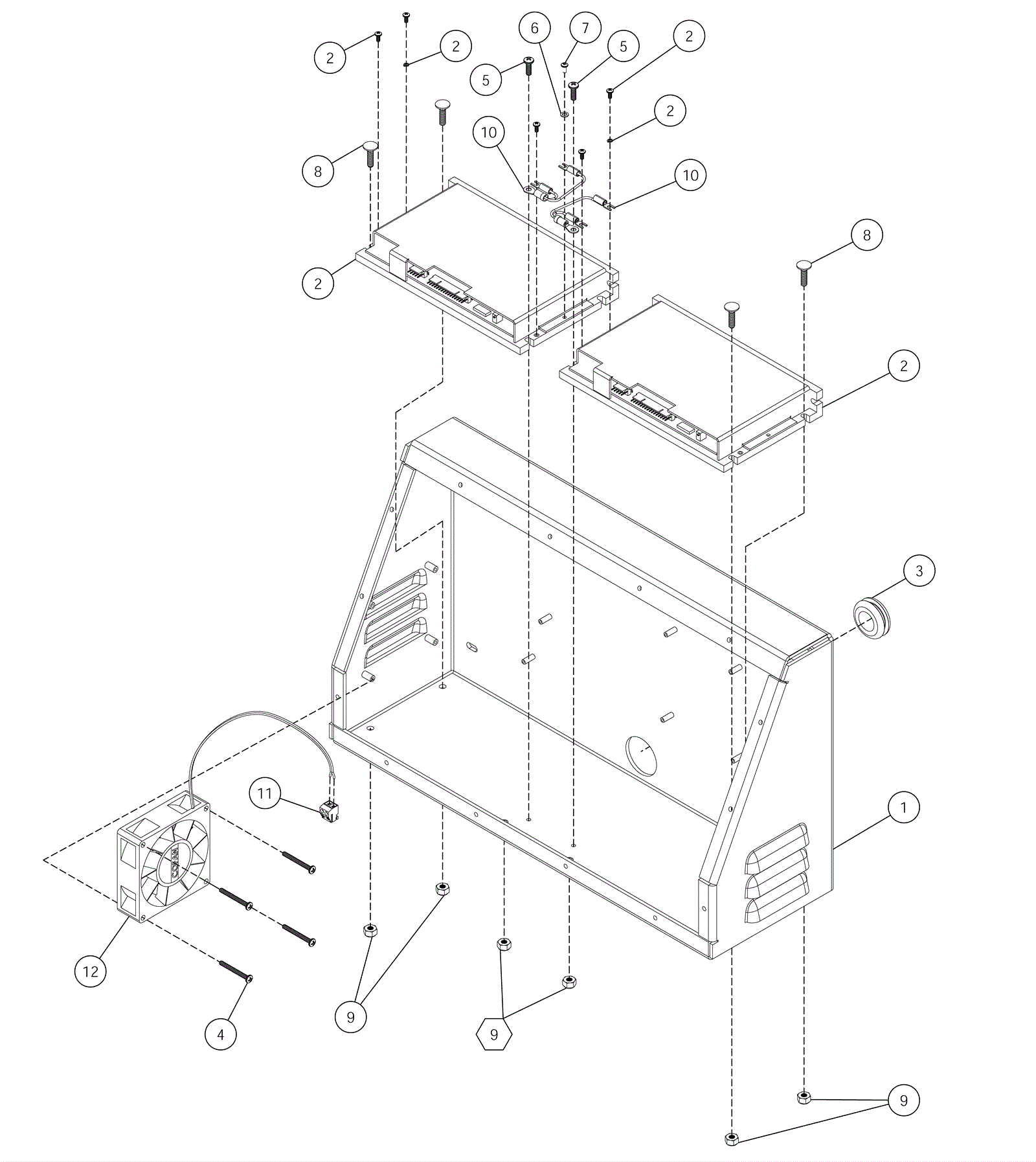

AEROBOT Electrical Enclosure Assembly (1100031) -3

#PartDescriptionPriceReqNotesAvailability
1 292-8805 Electrical enclosure weldment Call for price 1 usually ships 30-75 days
2 292-8827 Drive amplifier board Call for price 2 usually ships 30-75 days
3 292-8828 Grommet panel $2.67 1 usually ships 30-75 days
4 292-8829 Screw pan phillips #6-32 x 1 1/4" Call for price 4 usually ships 30-75 days
5 292-8706 Screw #8-32 x ½ phillips Call for price 2 usually ships 30-75 days
6 292-8830 Washer lock spring #6 Call for price 1 usually ships 30-75 days
7 292-8733 Phillips screw #4-40 x 1/4 inch Call for price 2 usually ships 30-75 days
8 292-8831 Screw carriage #10-24 x 3/4" Call for price 4 usually ships 30-75 days
9 292-8721 Nut, Nylon insert #10-24 Call for price 6 usually ships 30-75 days
10 292-8832 Drive AMP ground wire harness Call for price 2 usually ships 30-75 days
11 292-8814 Connector plugable $5.50 1 usually ships 30-75 days
12 292-8833 Cooling fan 80x80 54CFM 24 V Call for price 1 usually ships 30-75 days
