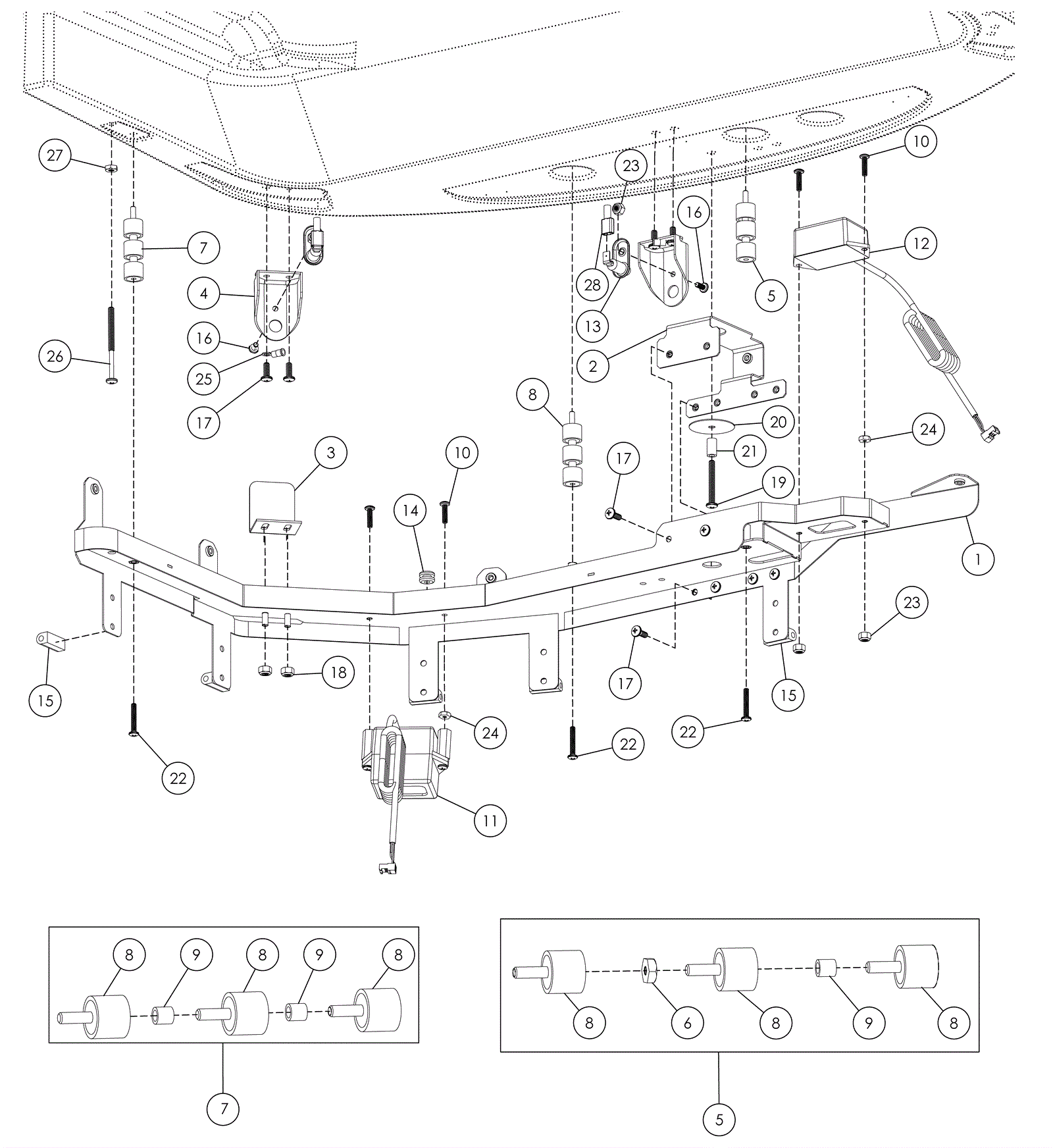

AEROBOT Left Hand Front MOV Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-8767 Left vacuum moveable bracket assembly Call for price 1 usually ships 30-75 days
2 292-8768 Center moveable bracket assembly Call for price 1 usually ships 30-75 days
3 292-8769 Target frame touch shield Call for price 1 usually ships 30-75 days
4 292-8770 Mount bracket pin switch Call for price 2 usually ships 30-75 days
5 292-8771 Isolation mount stack assembly Call for price 1 (includes 6, 8-9 usually ships 30-75 days
6 292-8772 Nut- Hex #8-32 Call for price 1 usually ships 30-75 days
7 292-8758 Isolation mount stack Call for price 2 (includes 8-9) usually ships 30-75 days
8 292-8759 Damping mount - 1/2" x 5/8" $13.87 9 usually ships 30-75 days
9 292-8760 Standoff - round Call for price 5 usually ships 30-75 days
10 292-8773 Screw pan phillips #8-32 x 5/8" Call for price 4 usually ships 30-75 days
11 292-8774 Front downward IR sensor assembly Call for price 1 usually ships 30-75 days
12 292-8775 Front downward IR sensor assembly - side brush vac Call for price 1 usually ships 30-75 days
13 292-8762 Pin switch Call for price 2 usually ships 30-75 days
14 292-8776 Gromment .187 x 0.93 x .281 Call for price 1 usually ships 30-75 days
15 292-8766 Gasket Call for price 5 usually ships 30-75 days
16 292-8751 Phillips screw #8-32 x 3/8" Call for price 2 usually ships 30-75 days
17 292-8723 Phillips screw #10-24 x 1/2 inch Call for price 10 usually ships 30-75 days
18 292-8721 Nut, Nylon insert #10-24 Call for price 2 usually ships 30-75 days
19 292-8779 Screw pan phillips #10-24 x 1 1/2" Call for price 1 usually ships 30-75 days
20 292-8780 Flat washer Call for price 1 usually ships 30-75 days
21 292-8781 Round standoff Call for price 1 usually ships 30-75 days
22 292-8782 Screw pan phillips Call for price 3 usually ships 30-75 days
23 292-8761 Nut, nylon insert Call for price 4 usually ships 30-75 days
24 292-8772 Nut- Hex #8-32 Call for price 2 usually ships 30-75 days
25 292-8763 Terminal ring insulated Call for price 2 usually ships 30-75 days
26 292-8764 Screw phillips #10-24 x 2 1/2" Call for price 1 usually ships 30-75 days
27 292-8736 Nut #10-24 hex Call for price 1 usually ships 30-75 days
29 292-8765 Connector Call for price 2 usually ships 30-75 days
