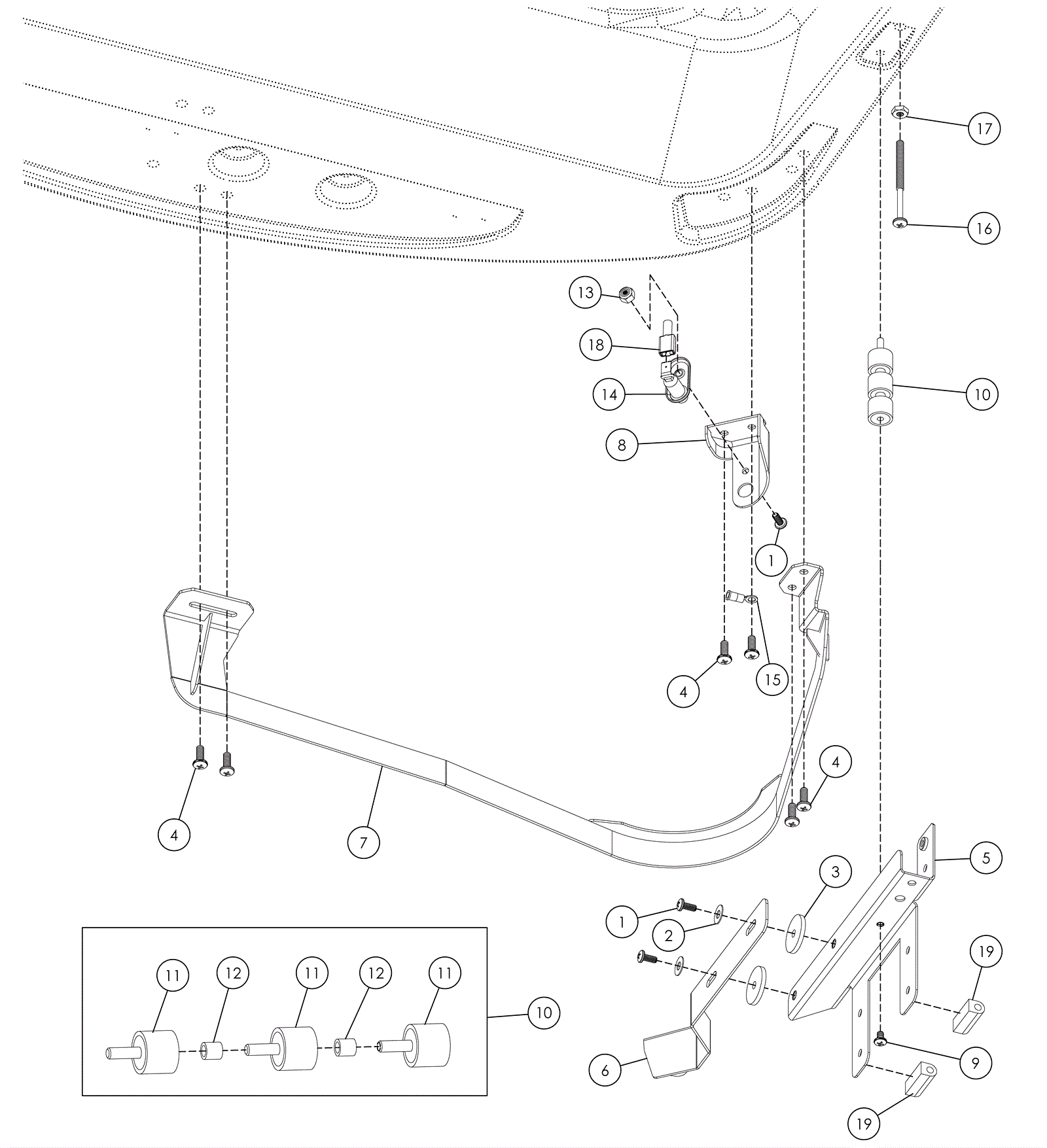

AEROBOT Right Hand Front MOV Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 292-8751 Phillips screw #8-32 x 3/8" Call for price 3 usually ships 30-75 days
2 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
3 292-8752 Flat washer Call for price 2 usually ships 30-75 days
4 292-8723 Phillips screw #10-24 x 1/2 inch Call for price 6 usually ships 30-75 days
5 292-8753 Moveable bracket assembly Call for price 1 usually ships 30-75 days
6 292-8754 Target frame Call for price 1 usually ships 30-75 days
7 292-8755 Safety frame assembly Call for price 1 usually ships 30-75 days
8 292-8756 Mount bracket Call for price 1 usually ships 30-75 days
9 292-8757 Phillips screw #8-32 x .25 LG Call for price 1 usually ships 30-75 days
10 292-8758 Isolation mount stack Call for price 1 (includes 11-12) usually ships 30-75 days
11 292-8759 Damping mount - 1/2" x 5/8" $13.87 3 usually ships 30-75 days
12 292-8760 Standoff - round Call for price 2 usually ships 30-75 days
13 292-8761 Nut, nylon insert Call for price 1 usually ships 30-75 days
14 292-8762 Pin switch Call for price 1 usually ships 30-75 days
15 292-8763 Terminal ring insulated Call for price 1 usually ships 30-75 days
16 292-8764 Screw phillips #10-24 x 2 1/2" Call for price 1 usually ships 30-75 days
17 292-8736 Nut #10-24 hex Call for price 1 usually ships 30-75 days
18 292-8765 Connector Call for price 1 usually ships 30-75 days
19 292-8766 Gasket Call for price 2 usually ships 30-75 days
