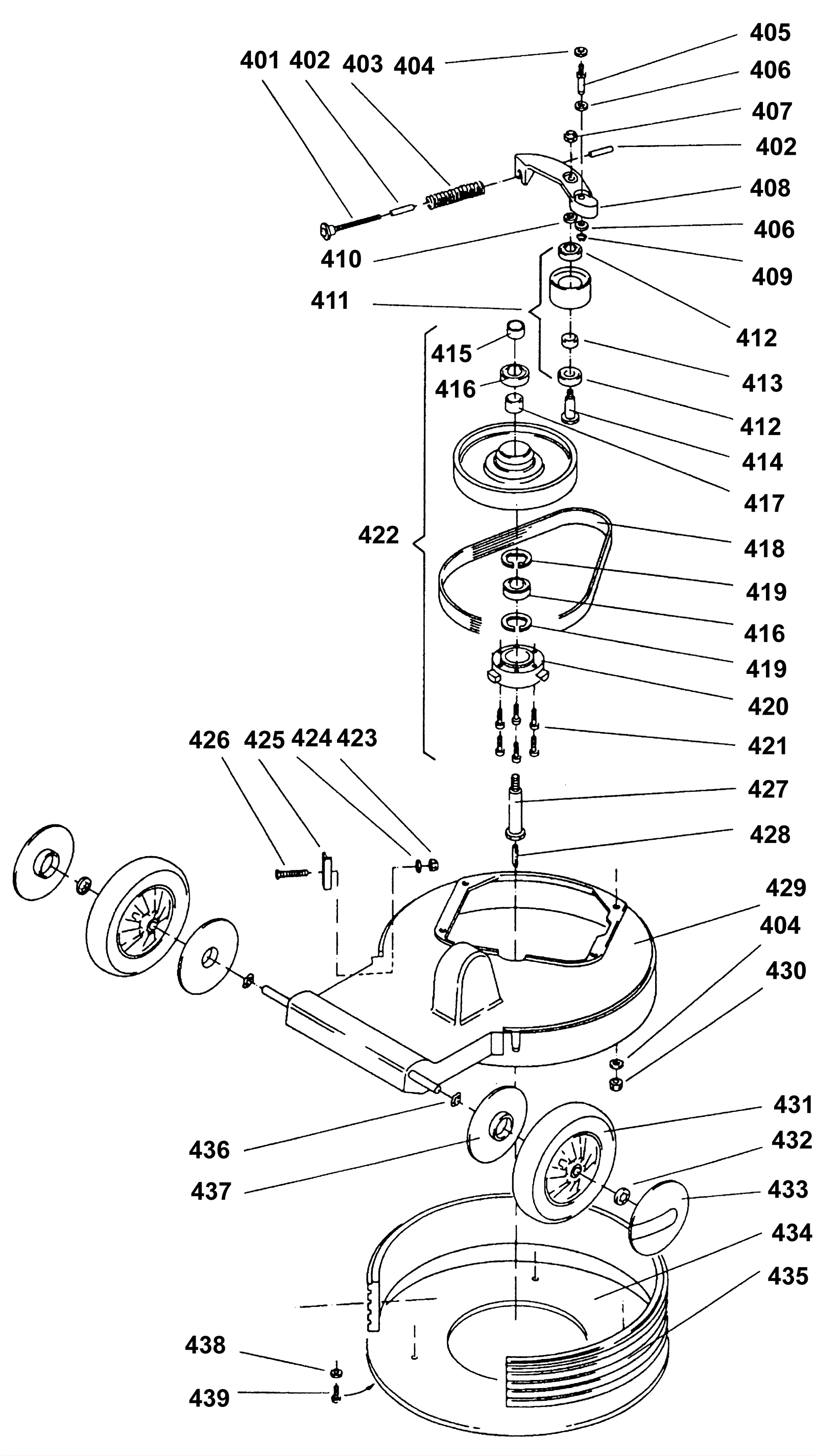

RANGER 200 Base Assembly

#PartDescriptionPriceReqNotesAvailability
0.9835 192-0467 Lite thread lock compound $237.19 usually ships 1-5 days
401 192-4639 Jockey stud cap (OBSOLETE) $11.81 1 usually ships 1-5 days
402 192-4582 Insulating tube $2.44 2 usually ships 1-5 days
403 192-5667 Pressure spring (OBSOLETE) $3.01 1 usually ships 1-5 days
404 192-0105 Washer M8 $2.44 1 ships same day
405 192-1810 Axle (OBSOLETE) $9.93 1 usually ships 1-5 days
406 192-0291 Washer $2.44 2 usually ships 1-5 days
407 192-1135 Nut M10 hex $2.44 1 ships same day
408 192-4633 Jockey arm (OBSOLETE) $44.07 1 usually ships 1-5 days
409 192-2775 Snap ring for shaft $2.68 1 usually ships 30-75 days
410 192-0496 Washer M10 $2.44 1 ships same day
411 192-4638 Complete jockey pulley (OBSOLETE) $63.07 1 usually ships 1-5 days
412 192-0306 Ball bearing $4.96 2 usually ships 1-5 days
413 N/A Not available Call for price Spacer usually ships 3-26 days
414 192-1811 Axle (OBSOLETE) $13.86 1 usually ships 1-5 days
415 192-6528 Spacer (OBSOLETE) $5.97 1 usually ships 1-5 days
416 192-0806 Ball bearing (OBSOLETE) $9.56 2 usually ships 1-5 days
417 N/A Not available Call for price usually ships 3-26 days
418 192-2003 Belt $46.71 1 ships same day
419 192-0805 Retaining ring (OBSOLETE) $2.20 2 usually ships 1-5 days
420 N/A Not available Call for price 1 Drive dog moulding usually ships 3-26 days
421 192-0066 Screw M6 x 25mm socket head cap $3.49 6 ships same day
422 192-4991 Main pulley assembly (OBSOLETE) $435.70 1 usually ships 1-5 days
423 192-6345 Nut M6 self locking $2.44 2 ships same day
424 192-0200 Washer M6 $3.12 2 ships same day
425 192-5584 Clamp plate (OBSOLETE) $2.96 2 usually ships 1-5 days
426 192-3000 Screw M6 x 30 countersunk head $2.44 2 usually ships 1-5 days
427 192-6388 Main pulley shaft (OBSOLETE) $37.03 1 usually ships 1-5 days
428 N/A Not available Call for price 1 Drip tube usually ships 3-26 days
429 192-4505 Housing (OBSOLETE) $380.50 1 usually ships 1-5 days
430 192-0510 Nut M8 self locking $2.44 4 ships same day
431 N/A Not available Call for price 2 Wheel usually ships 3-26 days
432 192-6669 Star cap $2.44 2 ships same day
433 192-7512 Wheel cover $9.85 2 usually ships 30-75 days
434 N/A Not available Call for price 1 Bottom cover usually ships 3-26 days
435 192-2339 Bumper band (OBSOLETE) $91.45 1 usually ships 1-5 days
436 192-7440 Washer wave $2.44 2 ships same day
437 N/A Not available Call for price 2 (Cover) usually ships 3-26 days
438 192-1975 Washer 5 5/16 /10 belleville (OBSOLETE) $2.20 3 usually ships 1-5 days
439 192-0631 Screw raised head $2.44 3 usually ships 30-75 days
