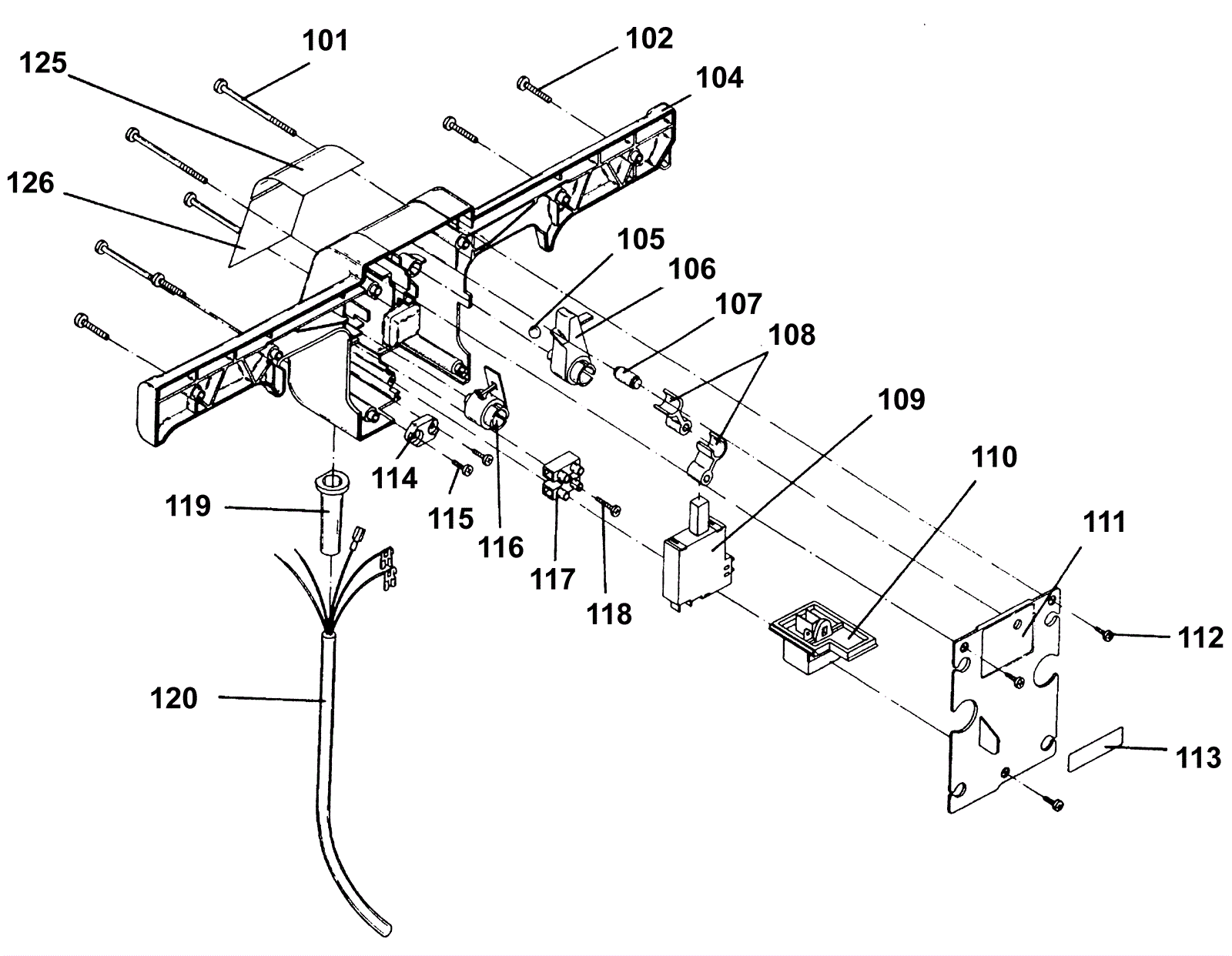

MONO 42DS Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-2771 Screw M4 x 60 cheese head $2.20 4 usually ships 30-75 days
102 192-2768 Screw M4 x 20 cheese head $2.44 4 usually ships 1-5 days
104a 192-4152 Handle set $423.15 1 (includes 104b-104d) usually ships 1-5 days
104b 192-4168 Front bowl handle $273.70 1 usually ships 30-75 days
104c 192-4161 Back bowl handle $158.19 1 usually ships 30-75 days
104d 192-6286 Screw KA 40 x 18 $2.44 4 usually ships 30-75 days
105 192-0566 Ball $2.44 1 usually ships 30-75 days
106 192-6974 Switching finger $3.11 1 ships same day
107 192-1756 Axle $12.10 1 usually ships 30-75 days
108 192-4669 Knee lever $5.03 2 usually ships 30-75 days
109 192-5794 Protective motor switch 12.amp $45.38 1 usually ships 1-5 days
110 192-1418 Male plug replacement kit (OBSOLETE) $7.67 1 usually ships 30-75 days
111 192-3168 Plate cover $10.43 1 usually ships 30-75 days
112 192-0548 Screw KA 35 x 10 $2.44 3 ships same day
113 N/A Not available Call for price 1 (Label) usually ships 3-26 days
114 192-2497 Cable clamp (OBSOLETE) $2.20 1 usually ships 1-5 days
115 192-5921 Screw M4 x 12 raised cheese head $6.23 2 ships same day
116 192-6977 Switching spring $3.71 1 ships same day
117 192-2895 2 way connection block $2.44 1 usually ships 30-75 days
118 192-0452 Screw for plastic KA 30 x 16mm $2.44 1 usually ships 30-75 days
119 192-2533 Cable grommet (OBSOLETE) $7.80 1 usually ships 30-75 days
125 192-1663 Aluminum band (OBSOLETE) $3.49 usually ships 1-5 days
126 192-8449 Informating label Call for price 1 usually ships 1-5 days
