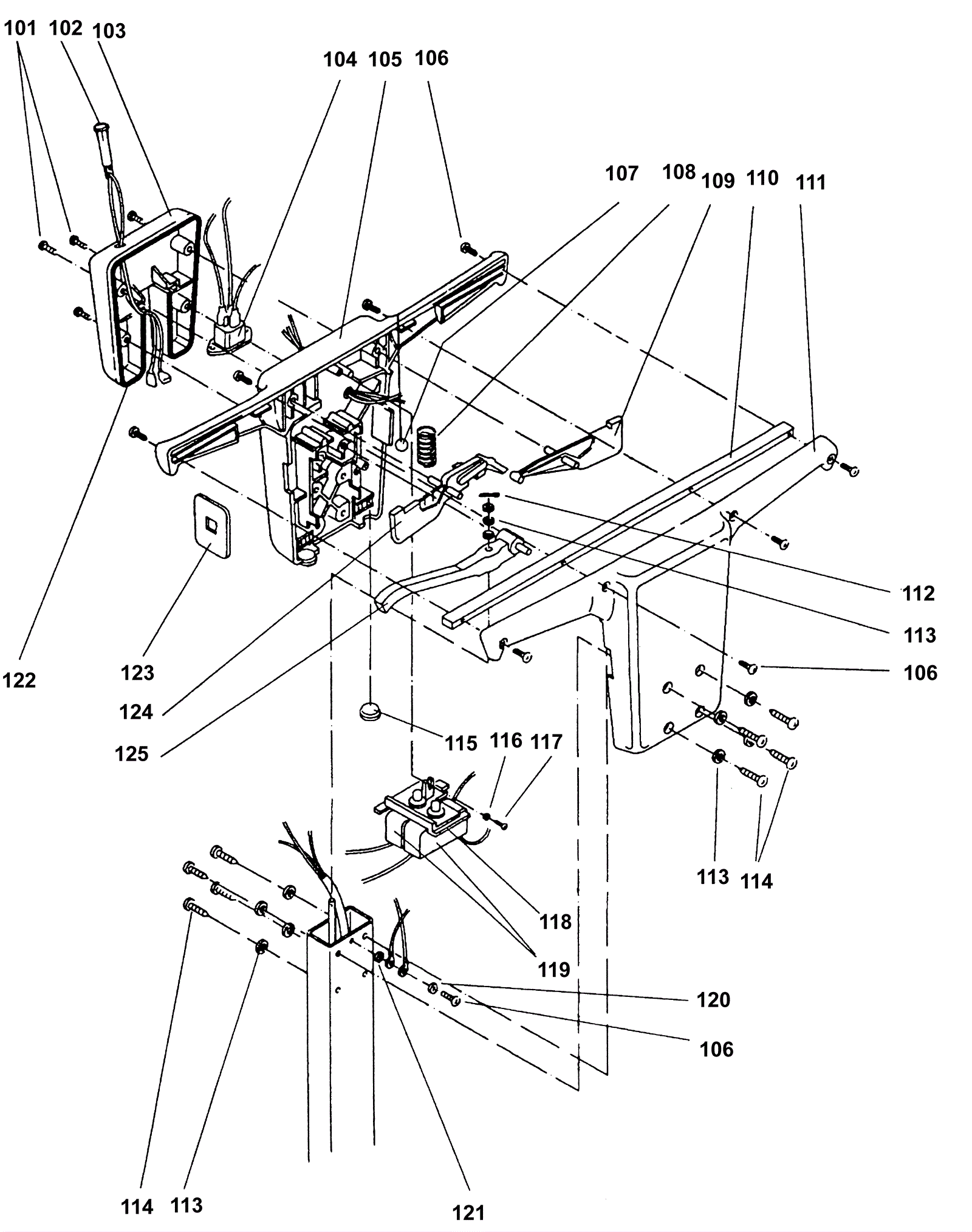

RANGER 200 Top Handle Assembly

#PartDescriptionPriceReqNotesAvailability
0.9835 192-0467 Lite thread lock compound $237.19 usually ships 1-5 days
101 192-5442 Screw 3 1/2 x 13 pan head tapping $2.56 4 ships same day
102 192-4545 Indicator neon 120 volt (OBSOLETE) $50.26 1 usually ships 1-5 days
103 192-3131 Cover (OBSOLETE) $18.33 1 usually ships 30-75 days
104 192-6465 Socket (OBSOLETE) $4.25 1 usually ships 1-5 days
105 N/A Not available Call for price 1 Handle bowl rear usually ships 3-26 days
106 192-0060 Screw M4 x 8 self tapping forming $2.44 9 usually ships 30-75 days
107 192-1849 Ball (1/2 in) (OBSOLETE) $2.20 1 usually ships 1-5 days
108 192-5668 Pressure spring $9.02 1 usually ships 30-75 days
109 192-6957 Left hand switch lever (OBSOLETE) $6.67 1 usually ships 1-5 days
110 N/A Not available Call for price 1 (Insert) usually ships 3-26 days
112 192-2968 Cotter pin (OBSOLETE) $2.20 1 usually ships 1-5 days
113 192-0206 Washer M5 $1.80 10 ships same day
114 N/A Not available Call for price 8 Screw usually ships 3-26 days
115 192-4056 Grommet (OBSOLETE) $2.20 2 usually ships 1-5 days
116 192-0677 Washer M3 $2.44 1 usually ships 30-75 days
117 192-5453 Screw BZ 2 13/16 x 13 pan head tapp. (OBSOLETE) $2.20 1 usually ships 1-5 days
118 192-4260 Holder (OBSOLETE) $5.38 1 usually ships 1-5 days
119 192-6929 Switch (OBSOLETE) $85.70 2 usually ships 30-75 days
120 192-0281 Spring washer $2.44 1 usually ships 1-5 days
121 999-0315 Washer #8 external star lock zinc plated $0.99 1 ships same day
122 N/A Not available Call for price 1 (gasket) usually ships 3-26 days
123 N/A Not available Call for price 1 Baffle usually ships 3-26 days
124 192-6961 Right hand switch lever $8.09 1 usually ships 30-75 days
125 N/A Not available Call for price 1 (Disengaging lever) usually ships 3-26 days
