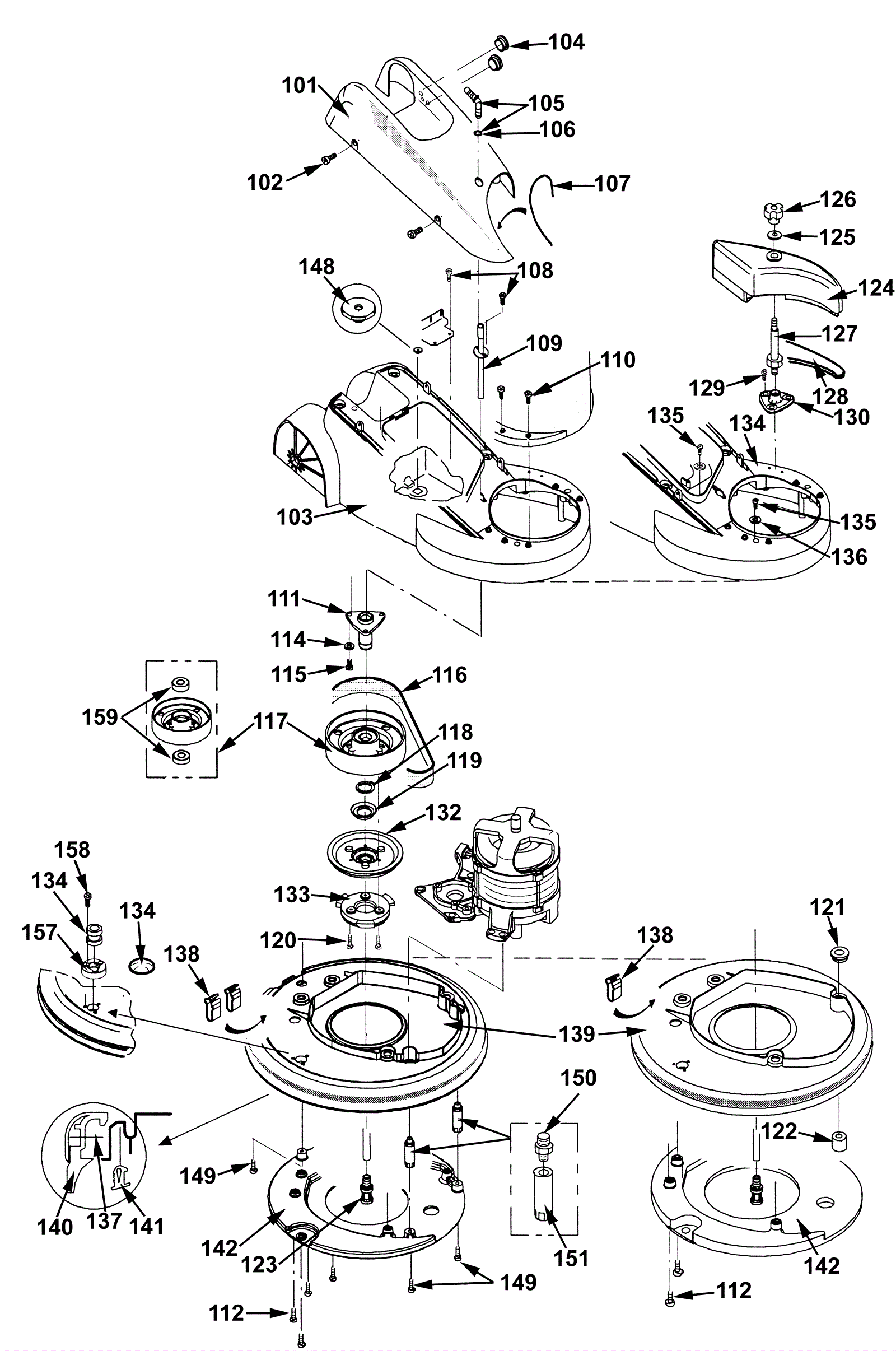

ERGODISC 400 Drive Assembly 1 - Series 1 and Series 2

#PartDescriptionPriceReqNotesAvailability
101 192-3492 Cover $26.69 1 usually ships 30-75 days
102 192-0706 Screw M50 x 16mm for plastic $2.64 4 ships same day
103 192-4030 Gear housing $129.62 1 ships same day
104 192-6769 Plug $2.93 2 usually ships 1-5 days
105 192-4424 Hose nipple with o-ring $8.87 1 ships same day
106 192-1603 O-ring $2.44 1 usually ships 30-75 days
107 192-6319 Sealing gasket (sold by the inch) $14.45 10 in usually ships 30-75 days
108 192-0547 Screw KA 40 x 14 $2.44 6 ships same day
109 192-5162 Nipple $5.45 1 usually ships 30-75 days
110 192-0625 Screw 50 x 25 for plastic $3.49 6 ships same day
111 192-0590 Pulley axle $12.69 1 ships same day
112 192-1509 Screw 60 x 25 torx head $4.35 10 ships same day
114 192-0105 Washer M8 $2.44 3 ships same day
115 192-0278 Screw M8 x 25mm socket head $0.89 3 ships same day
116 192-1414 Belt $40.41 1 ships same day
117a 192-5836 Pulley with bearings $49.16 1 (165, 175, and 200) (bearings not available separately) ships same day
117b 192-0608 Pulley with bearings $60.45 1 (238, 300, 400, 438, and duo) ships same day
118 192-0503 Retaining ring $2.44 1 ships same day
119 192-6320 Sealing ring $2.44 1 ships same day
120 192-6291 Screw 50 x 30 for plastic handle lever $3.54 3 ships same day
121 192-0624 Grommet $2.44 4 usually ships 30-75 days
122 192-2812 Clamp bushing $5.32 1 usually ships 30-75 days
123 192-2727 Center plug $3.54 1 ships same day
124 192-7446 Weight $98.90 1 usually ships 30-75 days
125 192-7424 Washer 8.4/20 $2.44 1 usually ships 30-75 days
126 192-1355 Star knob M6 $2.93 1 usually ships 30-75 days
127 192-6559 Spindle $9.28 1 usually ships 30-75 days
128 192-5544 Plate $8.62 1 ships same day
129 192-0706 Screw M50 x 16mm for plastic $2.64 3 ships same day
130 192-3710 Flange $5.84 1 ships same day
132 192-4610 Intermediate ring $29.30 1 ships same day
133 192-1425 Coupling flange $5.32 1 ships same day
134a 192-6195 Rubber ring $9.35 1 usually ships 30-75 days
134b 192-0614 Dummy plate $2.44 1 usually ships 30-75 days
135 192-5934 Screw M6 x 35mm raised cheese head $2.44 3 usually ships 1-5 days
136 192-7420 Washer 6/16 $4.71 3 usually ships 30-75 days
137 192-0612 Screw 3.5 x 12 pan head tap (OBSOLETE) $2.64 20 usually ships 1-5 days
138 N/A Not available Call for price 1 (support clamp assembly) usually ships 3-26 days
139a 192-2280 15 inch brush housing assembly $156.73 1 (15 inch) usually ships 30-75 days
139b 192-2282 17 inch brush housing assembly $154.02 1 (17 inch) ships same day
139c 192-2283 20 inch brush housing assembly $163.74 1 (20 inch) ships same day
140a N/A Not available Call for price 49 in (17 inch) (bumper profile) usually ships 3-26 days
140b N/A Not available Call for price 61 inch (20 inch) (bumper profile) usually ships 3-26 days
141a 192-6319 Sealing gasket (sold by the inch) $14.45 47 in (17 inch) usually ships 30-75 days
141b 192-6319 Sealing gasket (sold by the inch) $14.45 58 in (20 inch) usually ships 30-75 days
142a 192-7454 Weight 43 (16.69 lb) $160.31 1 (17 inch) usually ships 30-75 days
142b 192-7455 Weight 50 $166.25 1 (20 inch) usually ships 30-75 days
148 192-5331 Nut M6 $10.13 1 usually ships 1-5 days
149 192-0007 Screw M6 x 16mm socket head cap $2.44 3 ships same day
150 192-6810 Axle stud $9.41 2 usually ships 30-75 days
151 192-2073 Bolt $3.78 2 ships same day
157 192-3337 Spacer disc $8.01 1 usually ships 30-75 days
158 192-0706 Screw M50 x 16mm for plastic $2.64 3 ships same day
159 192-1872 Grease $11.99 1 ships same day
N/S 192-0467 Lite thread lock compound $237.19 1 usually ships 1-5 days
N/S 192-9446 20 inch pad driver (molded with clutch) $228.57 1 ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
