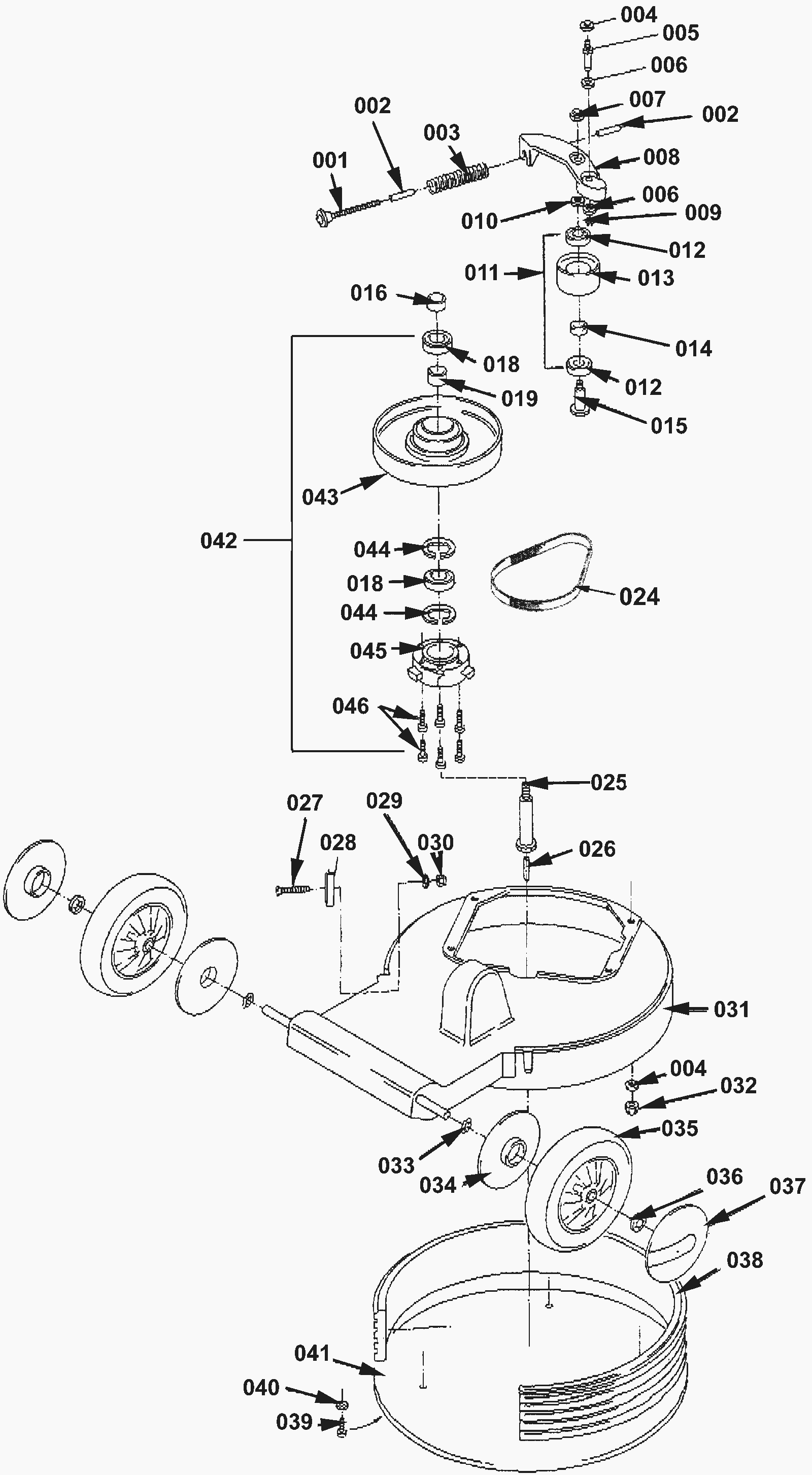

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
192-4639
|
Jockey stud cap (OBSOLETE) |
1 |
|
|
002 |
192-4582
|
Insulating tube |
2 |
|
|
003 |
192-5667
|
Pressure spring (OBSOLETE) |
1 |
|
|
004 |
N/A
|
Not available |
5 |
WASHER, M8 |
|
005 |
192-1810
|
Axle (OBSOLETE) |
1 |
|
|
006 |
192-0291
|
Washer |
2 |
|
|
007 |
N/A
|
Not available |
1 |
NUTM10 |
|
008 |
N/A
|
Not available |
1 |
JOCKEY ARM |
|
009 |
192-2775
|
Snap ring for shaft |
1 |
|
|
010 |
N/A
|
Not available |
1 |
WASHER |
|
011 |
N/A
|
Not available |
1 |
ASSEMBLY, JOCKEY PULLEY |
|
012 |
192-0306
|
Ball bearing |
2 |
|
|
013 |
N/A
|
Not available |
1 |
PULLEY, JOCKEY |
|
014 |
192-3191
|
Covering rail (OBSOLETE) |
1 |
|
|
015 |
192-1811
|
Axle (OBSOLETE) |
1 |
|
|
016 |
192-6528
|
Spacer (OBSOLETE) |
1 |
|
|
018 |
192-0806
|
Ball bearing (OBSOLETE) |
2 |
|
|
019 |
N/A
|
Not available |
1 |
SPACER, MAIN PULLEY |
|
024 |
192-2003
|
Belt |
1 |
|
|
025 |
192-6388
|
Main pulley shaft (OBSOLETE) |
1 |
|
|
026 |
N/A
|
Not available |
1 |
DRIP TUBE |
|
027 |
N/A
|
Not available |
2 |
SCREW, M6 x 30 CSK |
|
028 |
192-5584
|
Clamp plate (OBSOLETE) |
2 |
|
|
029 |
192-0200
|
Washer M6 |
2 |
|
|
030 |
192-0563
|
Nut M6 self-locking |
2 |
|
|
031 |
192-4505
|
Housing (OBSOLETE) |
1 |
|
|
032 |
192-0510
|
Nut M8 self locking |
4 |
|
|
033 |
192-7440
|
Washer wave |
2 |
|
|
034 |
N/A
|
Not available |
2 |
(Cover) |
|
035 |
N/A
|
Not available |
2 |
Wheel |
|
036 |
192-6669
|
Star cap |
2 |
|
|
037 |
192-7512
|
Wheel cover |
2 |
|
|
038 |
192-2339
|
Bumper band (OBSOLETE) |
1 |
|
|
039 |
192-0631
|
Screw raised head |
3 |
|
|
040 |
192-0880
|
Washer M5 |
3 |
|
|
041 |
N/A
|
Not available |
1 |
|
|
042 |
N/A
|
Not available |
1 |
MAIN PULLEY (SELF ENGAGING) |
|
043 |
N/A
|
Not available |
1 |
PULLEY |
|
044 |
192-0805
|
Retaining ring (OBSOLETE) |
2 |
|
|
045 |
N/A
|
Not available |
1 |
Drive dog moulding |
|
046 |
192-0066
|
Screw M6 x 25mm socket head cap |
6 |
|
|
