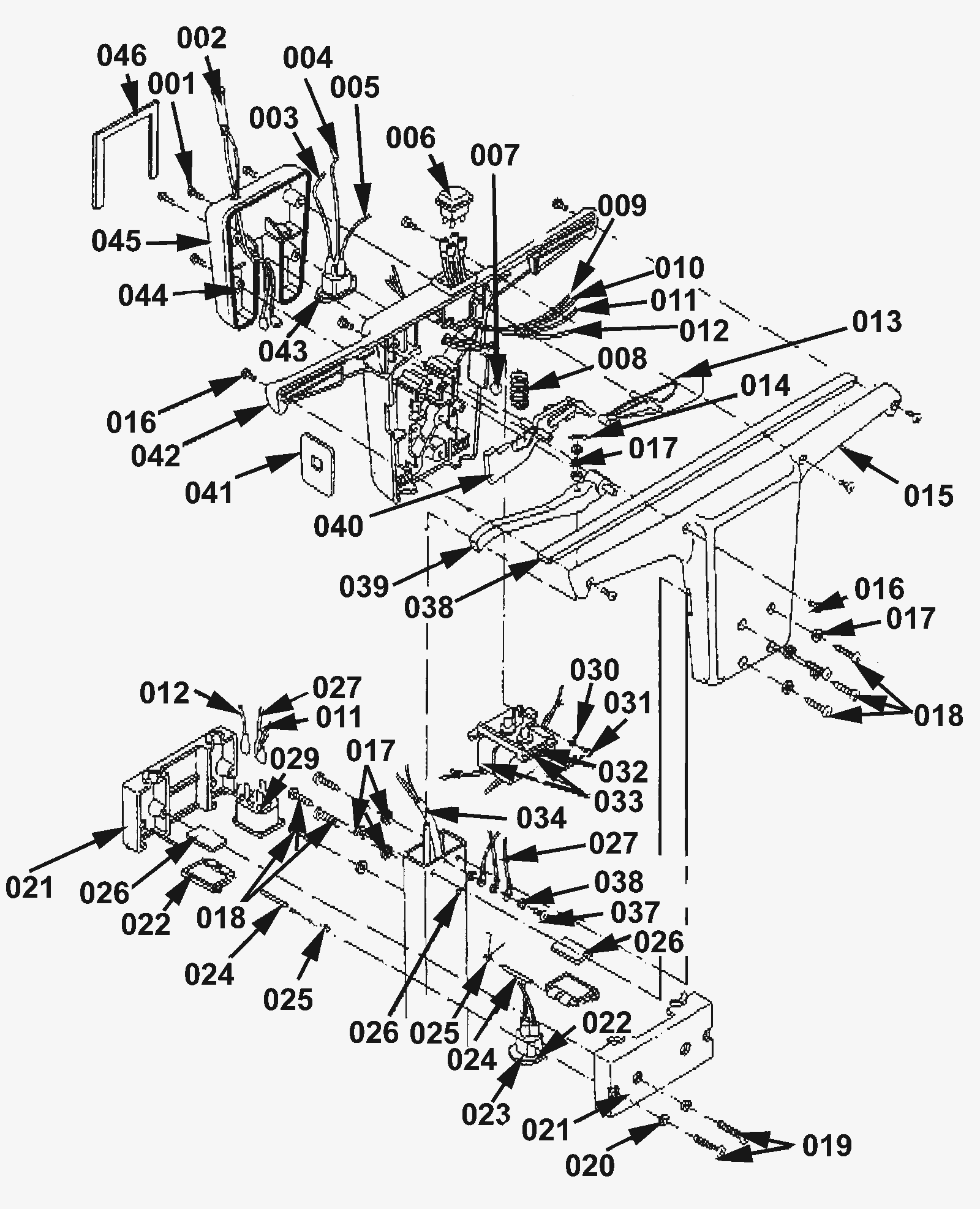

Upper Handle Assembly

#PartDescription ReqNotesAvailability
001 192-5442 Screw 3 1/2 x 13 pan head tapping 4
002 192-4545 Indicator neon 120 volt (OBSOLETE)
003 N/A Not available 1 Wire
004 N/A Not available 1 Wire
005 N/A Not available 1 Wire
006 192-6930 Switch (OBSOLETE) 1
007 192-1849 Ball (1/2 in) (OBSOLETE) 1
008 192-5668 Pressure spring 1
009 N/A Not available 1 Wire
010 N/A Not available 1 Wire
011 N/A Not available 1 Wire
012 N/A Not available 1 Wire
013 192-6957 Left hand switch lever (OBSOLETE) 1
014 192-2968 Cotter pin (OBSOLETE) 1
015 N/A Not available 1 (Handle bowl front)
016a 192-0060 Screw M4 x 8 self tapping forming 8
016b N/A Not available 8 Screw 10 x 1/2
017 192-0206 Washer M5 10
018 N/A Not available 8 Screw
019 N/A Not available 4 Screw M5 x 30mm pan head
020 N/A Not available 4 Shakeproof washer 2BA
021 192-4508 Housing (OBSOLETE) 2
022 192-0544 Flap 2
023 192-1736 Socket assembly (OBSOLETE) 1
024 192-0546 Pin 2 x 36 2
025 192-6606 Spring (OBSOLETE) 2
026 999-0315 Washer #8 external star lock zinc plated 1
027 N/A Not available 1 Wire
028 192-0543 Gasket 2
029 192-0542 Socket 1
030 192-0677 Washer M3 1
031 N/A Not available 1 Screw 4 x 1/2 pan head
032 192-4260 Holder (OBSOLETE) 1
033 192-6929 Switch (OBSOLETE) 2
034 N/A Not available Internal lead
036 N/A Not available 1 Washer M4 spring
037 192-0060 Screw M4 x 8 self tapping forming 1
038a N/A Not available 1 (Insert)
038b N/A Not available 4 Handle insert
039 N/A Not available 1 (Disengaging lever)
040 192-6961 Right hand switch lever 1
041 N/A Not available 1 Switchbox baffle
042 N/A Not available 1 (Handle bowl rear) (Part number 192-4163 can be used to replace this part. However, the hardware and the opening for the spray switch located under reference number 006 will not be available)
043a N/A Not available Main lead socket
043b 192-0542 Socket
044 N/A Not available 1 Socket housing seal
045 192-3131 Cover (OBSOLETE)
046 N/A Not available 1 Plug cover gasket
