| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
192-9447
|
Solution tank |
1 |
|
|
2 |
192-9448
|
Electric spray device (OBSOLETE) |
1 |
|
|
3 |
192-1440
|
Foam generator |
1 |
|
|
4 |
192-9454
|
9 foot upholstery hose and brush |
1 |
(accessory for the Foamer) |
|
5 |
192-9455
|
Vacuum unit |
1 |
|
|
6 |
192-9456
|
Micro-filter (pkg of 5) |
1 |
|
|
7 |
192-9457
|
HEPA filter |
1 |
|
|
8 |
192-7337
|

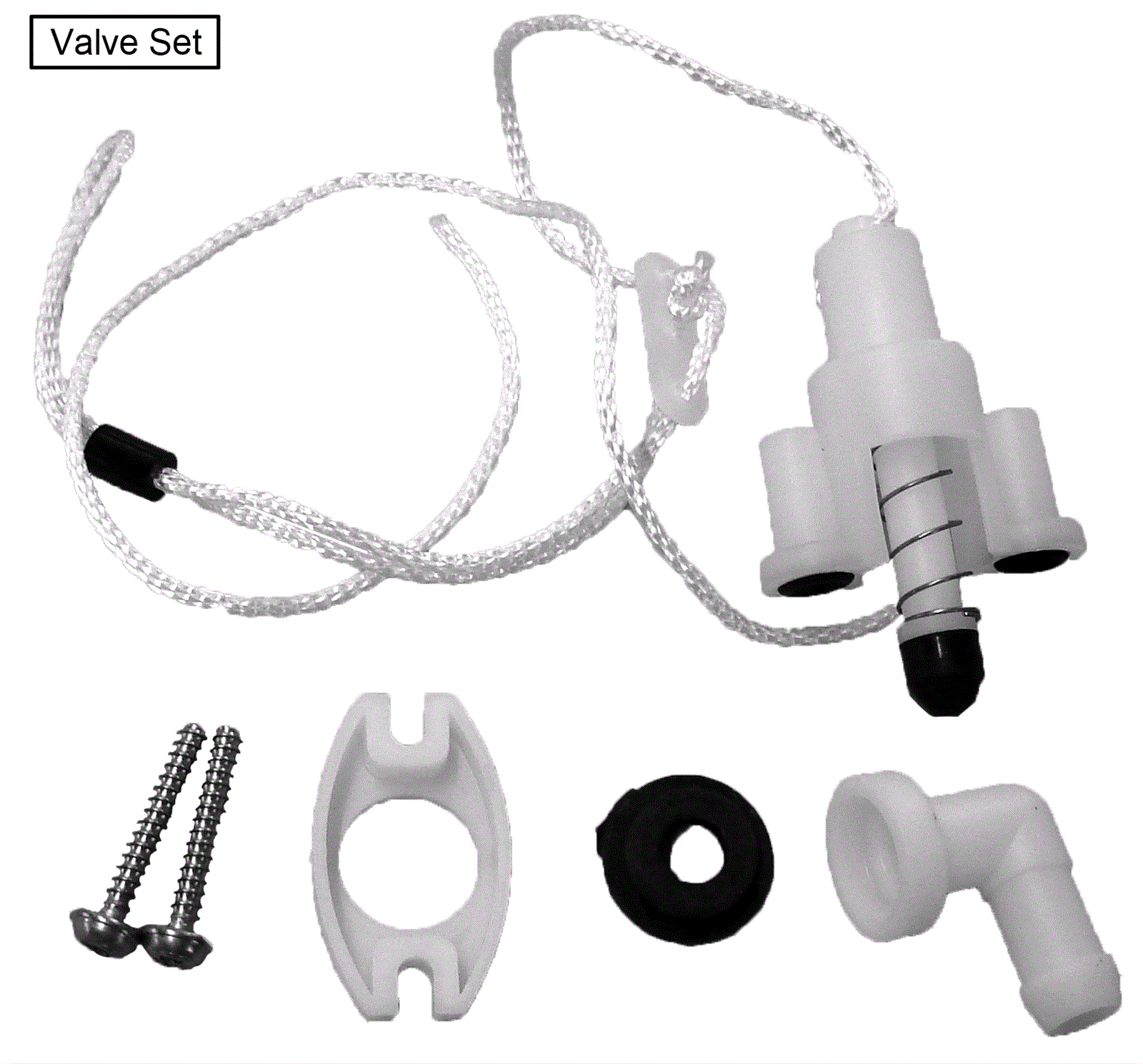

Valve set |
1 |
(for solution tank before 01/2006. Old style tank will not have 2 pegs on the bottom) |
|
8.1 |
192-6762
|
Stopper |
1 |
(for solution tank) |
|
8.2 |
192-9013
|
Valve set |
1 |
(for solution tank after 01/2006. New style tank will have 2 pegs on the bottom.) |
|
9 |
192-8723
|
17 inch suction skirt housing |
1 |
(Ergodisc 200) |
|
10 |
192-9500
|
20 inch suction skirt housing |
1 |
(Ergodisc 175) |
|
11 |
192-6681
|
Screw M8 star (OBSOLETE) |
1 |
(for hot wax device) |
|
12 |
192-6812
|
Stud for hox wax device, mono (OBSOLETE) |
1 |
(for hot wax device) |
|
