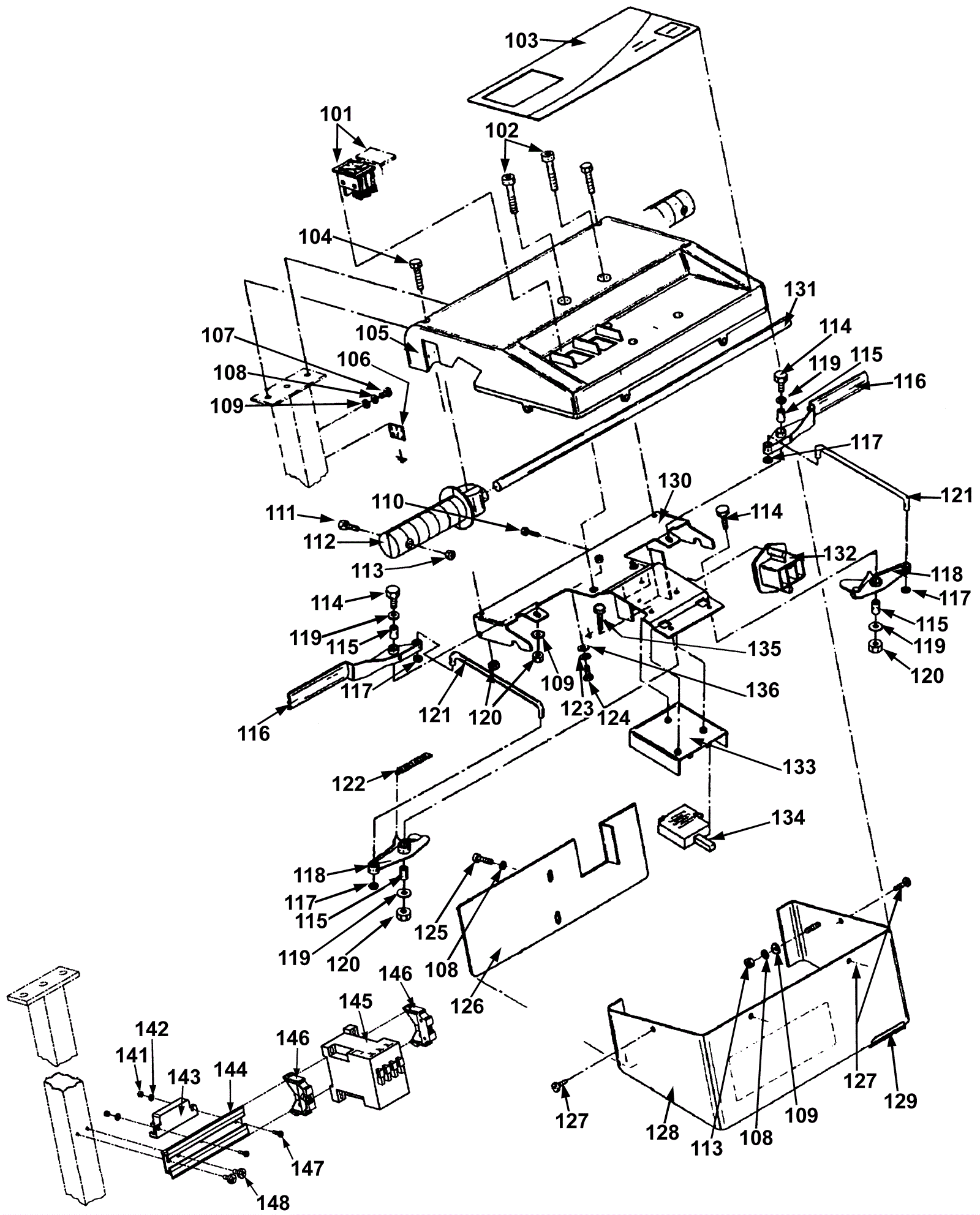

COMBIMAT 1000E Control Board - Series 03

#PartDescriptionPriceReqNotesAvailability
101 192-6098 Rocker switch $4.28 2 usually ships 30-75 days
102 192-1542 Screw M8 x 50mm socket head cap $4.47 2 ships same day
103 192-4689 Label (OBSOLETE) $26.72 1 usually ships 1-5 days
104 192-0412 Screw M5-1 x M30 hex head $2.44 2 usually ships 1-5 days
105 192-4486 Housing (OBSOLETE) $501.09 1 usually ships 1-5 days
106 192-3434 Earth symbol (OBSOLETE) $2.44 1 usually ships 1-5 days
107 192-0377 Screw M5 x 10mm self-tapping $2.44 1 usually ships 30-75 days
108 192-1537 Washer M5 serrated lock $2.44 4 ships same day
109 192-0880 Washer M5 $0.89 4 ships same day
110 192-0941 Screw M40 x M10 for plastic $4.35 2 usually ships 30-75 days
111 192-5930 Screw M5 x 25 raised cheese head $2.44 2 usually ships 30-75 days
112 192-4176 Half handle (OBSOLETE) $6.03 4 usually ships 30-75 days
113 192-0383 Nut M5 hex $0.89 3 ships same day
114 192-1003 Screw M5 x 35mm raised cheese head torx $2.44 4 ships same day
115 192-2376 Bushing $4.13 4 usually ships 30-75 days
116 192-4126 Handle lever $8.91 2 usually ships 30-75 days
117 N/A Not available Call for price 4 (Elastic ring) usually ships 3-26 days
118 192-4751 Lever (OBSOLETE) $5.31 2 usually ships 1-5 days
119 192-0615 Washer $1.91 4 ships same day
120 192-0340 Nut M5 hex self locking $2.93 6 usually ships 30-75 days
121 192-2889 Connecting rod (OBSOLETE) $2.20 2 usually ships 1-5 days
122 192-7074 Tension spring $2.68 1 usually ships 30-75 days
123a 192-1537 Washer M5 serrated lock $2.44 1 after 04.2001 ships same day
123b 192-0382 Washer lock $2.44 1 before 04. 2001 usually ships 30-75 days
124a 192-0162 Screw M5 x 8 self tapping forming $2.88 1 after 04.2001 ships same day
124b 192-0160 Screw M5 x 10mm raised head $3.49 2 before 04.2001 usually ships 30-75 days
125 192-0160 Screw M5 x 10mm raised head $3.49 3 usually ships 30-75 days
126 192-3071 Cover (OBSOLETE) $40.89 1 usually ships 1-5 days
127 192-0148 Screw M4 x 10mm raised cheese head $2.44 4 usually ships 30-75 days
128 192-2682 Casing (OBSOLETE) $143.69 1 usually ships 30-75 days
129 192-2352 Bumper profile (Sold by the inch) (OBSOLETE) $14.40 22 in usually ships 1-5 days
130 192-2151 Bracket (OBSOLETE) $94.70 1 usually ships 1-5 days
131 192-1885 Handle bar $9.21 1 usually ships 30-75 days
132 192-0938 Socket plug $8.20 1 ships same day
133 192-4519 Switch housing (OBSOLETE) $7.48 1 usually ships 30-75 days
134 N/A Not available Call for price 1 (Switch) usually ships 3-26 days
135 192-0548 Screw KA 35 x 10 $2.44 3 ships same day
136a 192-0880 Washer M5 $0.89 1 ships same day
136b 192-0973 3 1/4 inch cable tie $2.44 1 usually ships 30-75 days
141 192-0015 Nut M3 self locking $5.01 2 usually ships 1-5 days
142 192-0677 Washer M3 $2.44 2 usually ships 30-75 days
143 192-5413 15 Amp overload switch (OBSOLETE) $104.31 1 usually ships 30-75 days
144 192-7555 Mounting rail (OBSOLETE) $10.52 1 usually ships 1-5 days
145 192-2939 Contactor $600.31 1 usually ships 30-75 days
146 192-2804 Clamp (OBSOLETE) $4.30 2 usually ships 1-5 days
147 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
148 192-0377 Screw M5 x 10mm self-tapping $2.44 2 usually ships 30-75 days
