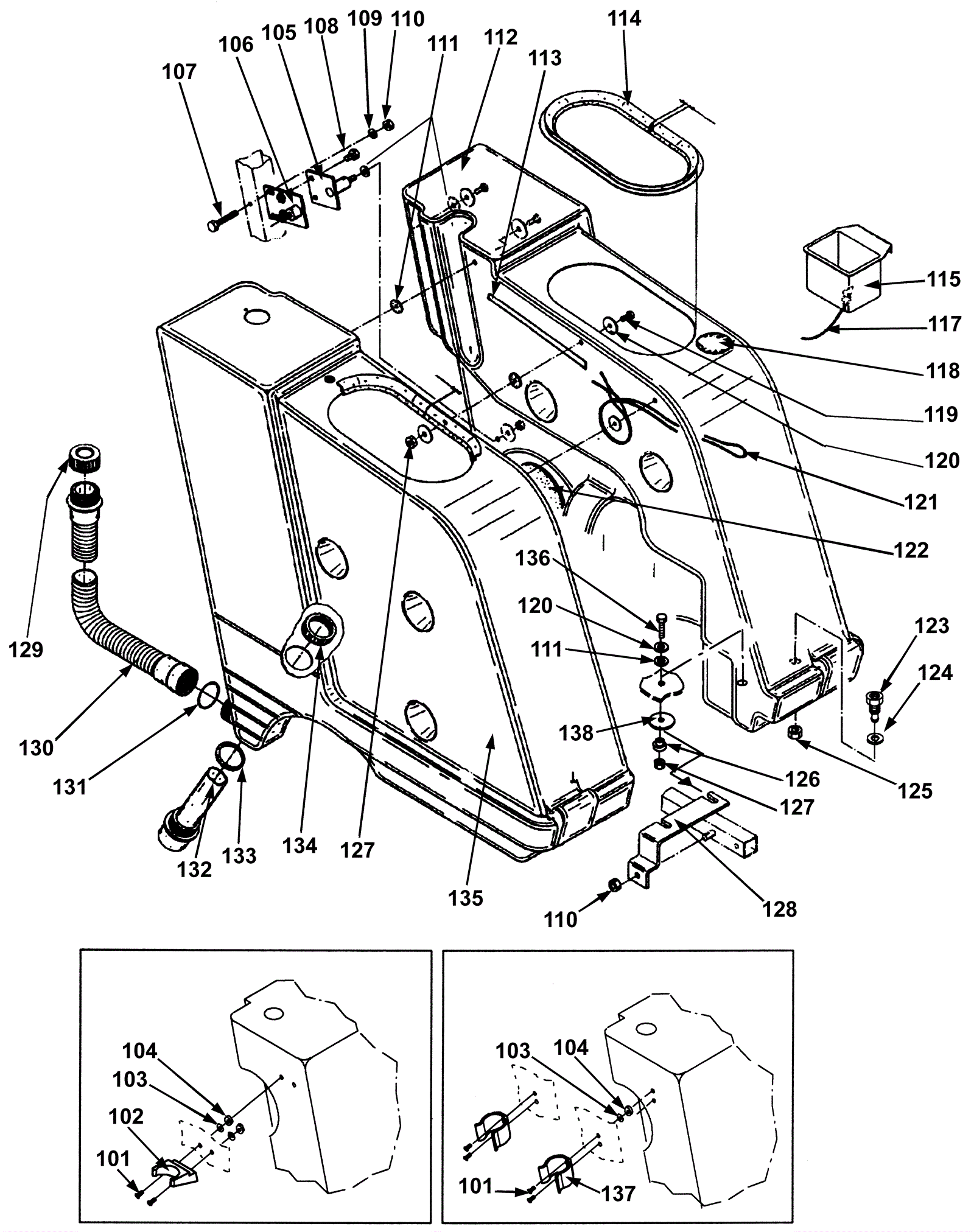

COMBIMAT 1000E Tank Assembly - Series 03

#PartDescriptionPriceReqNotesAvailability
101 192-0723 Screw M5 x 6mm $2.56 4 usually ships 19-25 days
102 N/A Not available Call for price 2 (hose holder) usually ships 3-26 days
103 192-0880 Washer M5 $0.89 4 ships same day
104 192-0383 Nut M5 hex $0.89 4 ships same day
105 192-3718 Flange $77.68 1 usually ships 19-25 days
106 192-3716 Flange $91.87 1 usually ships 19-25 days
107 192-0605 Screw 8 x 45 hex $4.95 2 usually ships 1-5 days
108 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 2 ships same day
109 192-0079 Washer $0.89 2 ships same day
110 192-0347 Nut M8 hex $0.89 3 ships same day
111 192-1294 Rubber washer $2.56 7 ships same day
112 192-6509 Solution tank (OBSOLETE) $539.19 1 usually ships 1-5 days
113 192-0740 Molding (Sold by the inch) (OBSOLETE) $13.71 39 in usually ships 1-5 days
114 192-0741 Gasket material (this piece is 39 iches) (OBSOLETE) $17.88 30 in usually ships 19-25 days
115 192-3358 Measuring cup (OBSOLETE) $10.44 1 usually ships 1-5 days
117 192-0714 Cord (sold by the inch) $2.56 10 in ships same day
118 192-0185 Decal (blue) $2.56 1 usually ships 19-25 days
119 192-4229 Screw M8 x 25 hex $2.20 3 usually ships 19-25 days
120 192-0248 Washer M8 $2.70 10 ships same day
121 192-0714 Cord (sold by the inch) $2.56 24 in ships same day
122 192-3295 Disc (OBSOLETE) $4.30 1 usually ships 1-5 days
123 192-5169 Nipple (OBSOLETE) $21.59 1 usually ships 1-5 days
124 192-3922 Gasket (OBSOLETE) $2.20 1 usually ships 1-5 days
125 192-4205 Nut M16 x 1-1/2 hex $2.56 1 usually ships 19-25 days
126a 192-2383 Bushing $6.15 2 Before 04.2001 usually ships 1-5 days
126b 192-6396 Shoulder bushing (OBSOLETE) $5.31 2 After 04.2001 usually ships 1-5 days
127 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
128 192-2156 Bracket (OBSOLETE) $85.11 1 usually ships 1-5 days
129a 192-0236 Threaded cap (blue) $2.56 1 ships same day
129b 192-0237 Threaded cap (red) $2.56 1 ships same day
130 192-4302 Hose (OBSOLETE) $25.06 2 usually ships 19-25 days
131 192-0115 O-ring $2.82 2 usually ships 19-25 days
132 192-4586 Intake $163.98 1 usually ships 1-5 days
133 192-0737 Gasket $3.74 1 usually ships 19-25 days
134 192-0187 Threaded collar $2.77 1 ships same day
135 192-6999 Tank $641.91 1 usually ships 1-5 days
136 192-9220 Screw M8 x 35 socket head cap $1.22 2 ships same day
137 192-0347 Nut M8 hex $0.89 2 Before 02.1993 ships same day
138 192-0099 Hose holder $1.79 2 After 04.2001 ships same day
N/S 192-3296 Disc (OBSOLETE) $20.68 2 After 04.2001 usually ships 1-5 days
N/S N/A Not available Call for price 1 Tank cover, before 04.1997 usually ships 3-26 days
