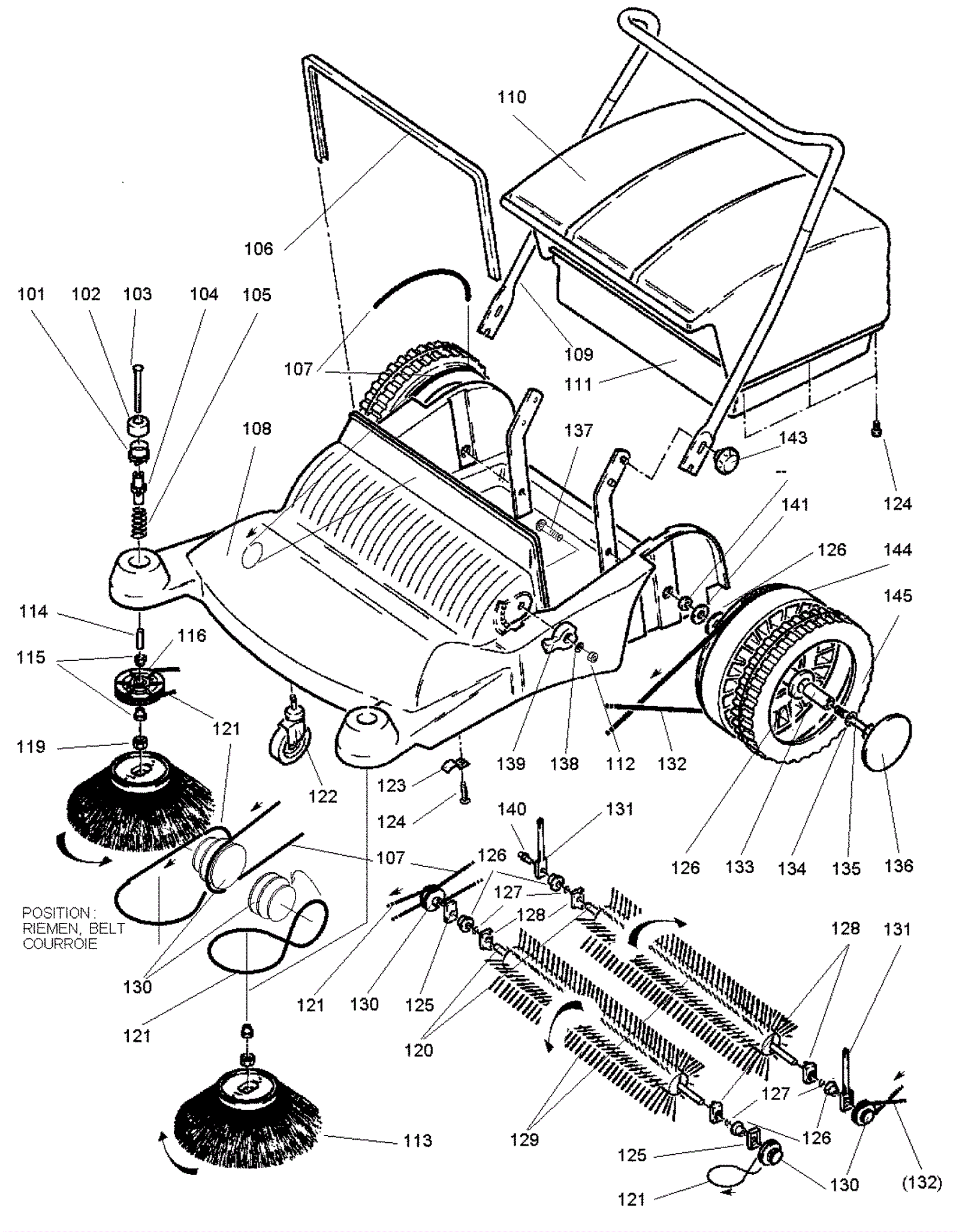

Entire Assembly

#PartDescription ReqNotesAvailability
101 192-5296 Notched socket 2
102 192-1641 Adjustment handle 2
103 192-8247 Bolt M8 x 130 mushroom head 2
104 192-8248 Adjustment part 2
105 192-5665 Pressure spring 2
106 192-5724 Profiled gasket 1
107 192-6152 Right hand round belt 1
108 192-3836 Frame balimat 45 1
109 292-9119 Bracket 1
110 192-3421 Upper hopper 1
111 192-3420 Lower hopper 1
112 192-0340 Nut M5 hex self locking 2
113 192-6418 Side brush 2
114 192-6525 Spacer 2
115 192-1860 Ball bearing 4
116 192-7477 Pulley 2
119 192-0510 Nut M8 self locking 2
120 192-1809 Axle 2
121 192-6150 Round belt 2
122 192-2699 Caster 1
123 192-2809 Clamp 1 x 12 2
124 192-0549 Screw KA 35 x 20 12
125 192-3850 Front bushing bearing 2
126 192-1861 Ball bearing 14 8
127 192-4836 Locking ring 2
128 192-3400 Driving plate 4
129 192-3226 Cylindrical brush balimat 45 2
130 192-5820 Pulley 3
131 192-1827 Back brush bearing 2
132 192-6151 Left hand round belt 1
133 192-6526 Spacer 2
134 192-6618 Spring washer (OBSOLETE) 2
135 192-4216 Screw M10 x 55 hex 2
136 192-4538 Hub cap 2
137 192-5153 Bolt M5 x 25 mushroom head 2
138 192-0615 Washer 2
139 192-7373 Vertical adjustment handle 1
140 192-2426 Bushing bearing 1
141 192-0112 Washer 2
143 192-6674 Star knob 2
144 192-7478 Wheel 2
145 192-5721 Tire 2
