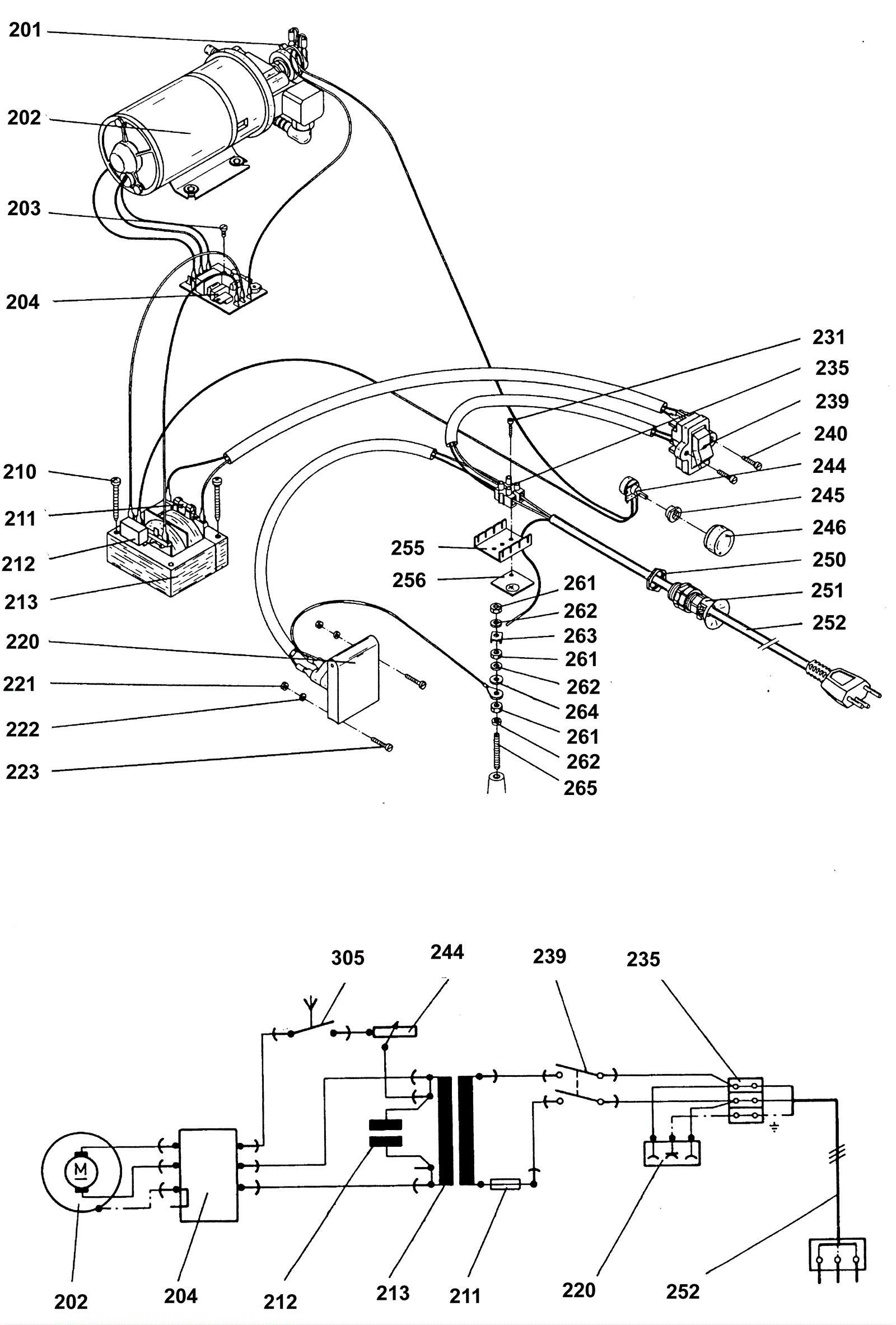

AQUAMAT 25 Electrical Parts Diagram

#PartDescriptionPriceReqNotesAvailability
201 192-0102 7 3/4 inch cable tie $2.44 1 usually ships 30-75 days
202 192-8344 Pump preassembled (OBSOLETE) Call for price 1 usually ships 1-5 days
203 192-0680 Screw 4mmx6 socket head cap (OBSOLETE) $2.20 1 usually ships 1-5 days
204 192-3501 Electronic speed regulator (OBSOLETE) $205.18 1 usually ships 1-5 days
210 192-8348 Screw 4-13/64 x 38 pan head tapp Call for price 4 usually ships 1-5 days
211 192-3686 Fine wire fuse 0,4 A semi-T-L (OBSOLETE) $4.03 1 usually ships 1-5 days
212 192-0713 Noise support condenser (OBSOLETE) $8.02 1 usually ships 1-5 days
213 192-4570 Insulating transformer 220 /235 volt (OBSOLETE) $284.36 1 usually ships 1-5 days
220a 192-1705 Schuko appliance inlet (OBSOLETE) $72.97 1 usually ships 1-5 days
220b 192-1704 Appliance inlet , type 13 (OBSOLETE) $135.59 1 usually ships 1-5 days
221 192-0048 Nut M3 hex $2.44 2 usually ships 30-75 days
222 192-0677 Washer M3 $2.44 2 usually ships 30-75 days
223 192-0294 Screw M3 x 20 raised cheese head $2.44 2 usually ships 30-75 days
231 192-5454 Screw BZ 2 13/16 x 16 pan head tapp. (OBSOLETE) $2.20 1 usually ships 1-5 days
235a 192-0954 3 way connection block $3.78 1 usually ships 30-75 days
235b 192-2895 2 way connection block $2.44 1 usually ships 30-75 days
239 N/A Not available Call for price 1 Rocking switch usually ships 3-26 days
240 192-3228 Cylindrical screw M 3-1/2 x 16 (OBSOLETE) $2.20 2 usually ships 1-5 days
244 192-5632 Potentiometer 100 kOhm (OBSOLETE) $44.12 1 usually ships 1-5 days
245 N/A Not available Call for price 1 Nut usually ships 3-26 days
246 N/A Not available Call for price 1 Turning knob usually ships 3-26 days
250 192-0891 Lock nut (OBSOLETE) $2.20 1 usually ships 1-5 days
251 192-2491 Cable bushing pg 9 (OBSOLETE) $47.33 1 usually ships 1-5 days
252a 192-4925 Main cord $64.67 1 usually ships 1-5 days
252b 192-4907 Main cord $53.12 1 usually ships 1-5 days
255 192-8356 Wire guiding profile Call for price 1 usually ships 1-5 days
256 192-8357 Earth symbol Call for price 1 usually ships 1-5 days
261 192-0383 Nut M5 hex $0.89 3 ships same day
262 192-0179 Washer M6 serrated lock $2.44 3 usually ships 30-75 days
263 192-8358 Tightening piece Call for price 1 usually ships 1-5 days
264 192-0880 Washer M5 $0.89 1 ships same day
265 192-8359 Screw M5 x 30 grub Call for price 1 usually ships 1-5 days
N/S 192-2466 Cable 1 mm (black) (OBSOLETE) $2.20 usually ships 1-5 days
N/S 192-2467 Cable 1 mm2 (blue) (OBSOLETE) $2.20 usually ships 1-5 days
N/S 192-2470 Yellow/green cable 1 mm2 (OBSOLETE) $2.20 usually ships 1-5 days
N/S 192-2555 Cable lug 5- din 46237 $2.44 usually ships 1-5 days
N/S 192-3587 Female plate clip 4 (OBSOLETE) $2.20 usually ships 1-5 days
N/S 192-3590 Female plate clip 6,3 -1 (OBSOLETE) $2.20 usually ships 1-5 days
N/S 192-3598 Female plate clip B2,8-1 (OBSOLETE) $2.20 usually ships 1-5 days
N/S 192-8362 Isulating tube D12 Call for price usually ships 1-5 days
N/S 192-8363 Taped bushing M4 Call for price Only necessary when mounting usually ships 1-5 days
N/S N/A Not available Call for price Insulating tube D 7 usually ships 3-26 days
