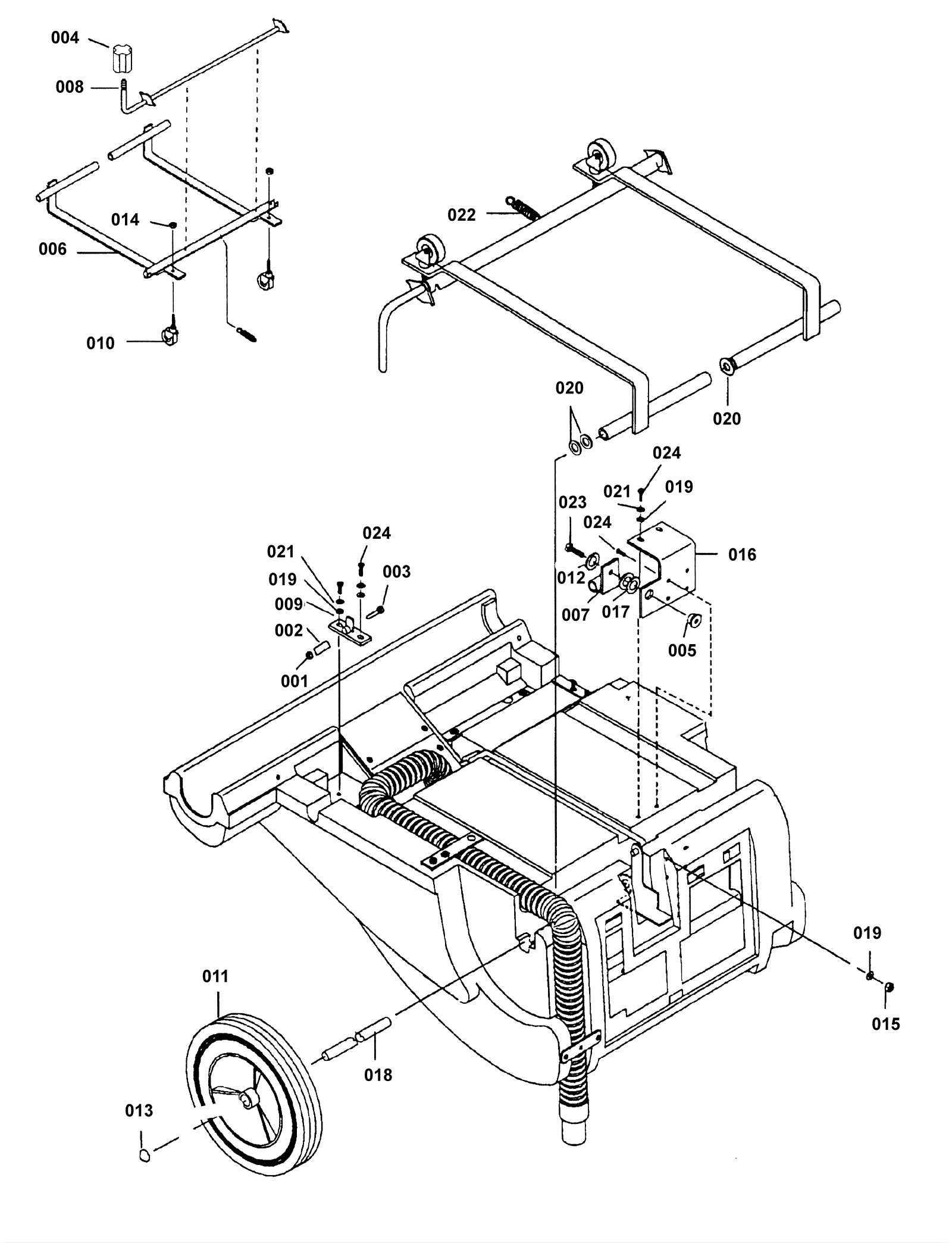

Tapiset 70 Body Assembly 351/2

#PartDescriptionPriceReqNotesAvailability
001 192-8171 Nut 1/4-20 x 12 mm hex barrel $24.32 1 usually ships 30-75 days
002 192-8170 Spacer 1/2 x 3/8 x 7/16 stainless steel $43.22 1 usually ships 1-5 days
003 192-8181 Screw 1/4-20 x 1/2 button head cap Call for price 1 usually ships 1-5 days
004 192-8182 Knob 1/2-13 $120.52 1 usually ships 1-5 days
005 192-8183 Thread bushing 3/4 x 3/8 -18 Call for price 1 usually ships 1-5 days
006 192-8184 Frame weldment Call for price 1 usually ships 1-5 days
007 192-8185 Axle hanger bracket Call for price 1 usually ships 1-5 days
008 192-8186 Height adjustment bar Call for price 1 usually ships 1-5 days
009 192-8187 Right height adjustment bracket Call for price 1 usually ships 1-5 days
010 192-7481 Wheel $170.70 2 usually ships 1-5 days
011 192-7483 Wheel 10 inch $275.95 2 usually ships 1-5 days
012 192-8188 Washer 3/8 split lock plated Call for price 1 usually ships 1-5 days
013 192-4540 Hubcap 5/8 inch $9.47 2 usually ships 1-5 days
014 192-6337 Nut 3/8-16 self locking $3.98 2 usually ships 30-75 days
015 192-7746 Nut 1/4-20 hex nylock (OBSOLETE) $2.20 4 usually ships 1-5 days
016 192-8189 Axle mounting plate Call for price 1 usually ships 1-5 days
017 192-7728 Washer 3/4 x1-1/4 nylon (OBSOLETE) $4.03 2 usually ships 1-5 days
018 192-8190 Rod 5/8 x 25-19/64 Call for price 1 usually ships 1-5 days
019 192-8191 Washer 1/4 x 3/4 Call for price 8 usually ships 1-5 days
020 192-8192 Washer 3/4 x 1 Call for price 3 usually ships 1-5 days
021 192-7633 Washer 1/4 lock external star stainless steel Call for price 4 usually ships 1-5 days
022 192-6612 Spring $17.83 1 usually ships 1-5 days
023 192-8193 Screw 3/8-16 x 3/4 hex head cap grade 5 Call for price 1 usually ships 1-5 days
024 192-8166 Screw 1/4-20 x 1 hex head cap plated (OBSOLETE) $2.20 8 usually ships 1-5 days
