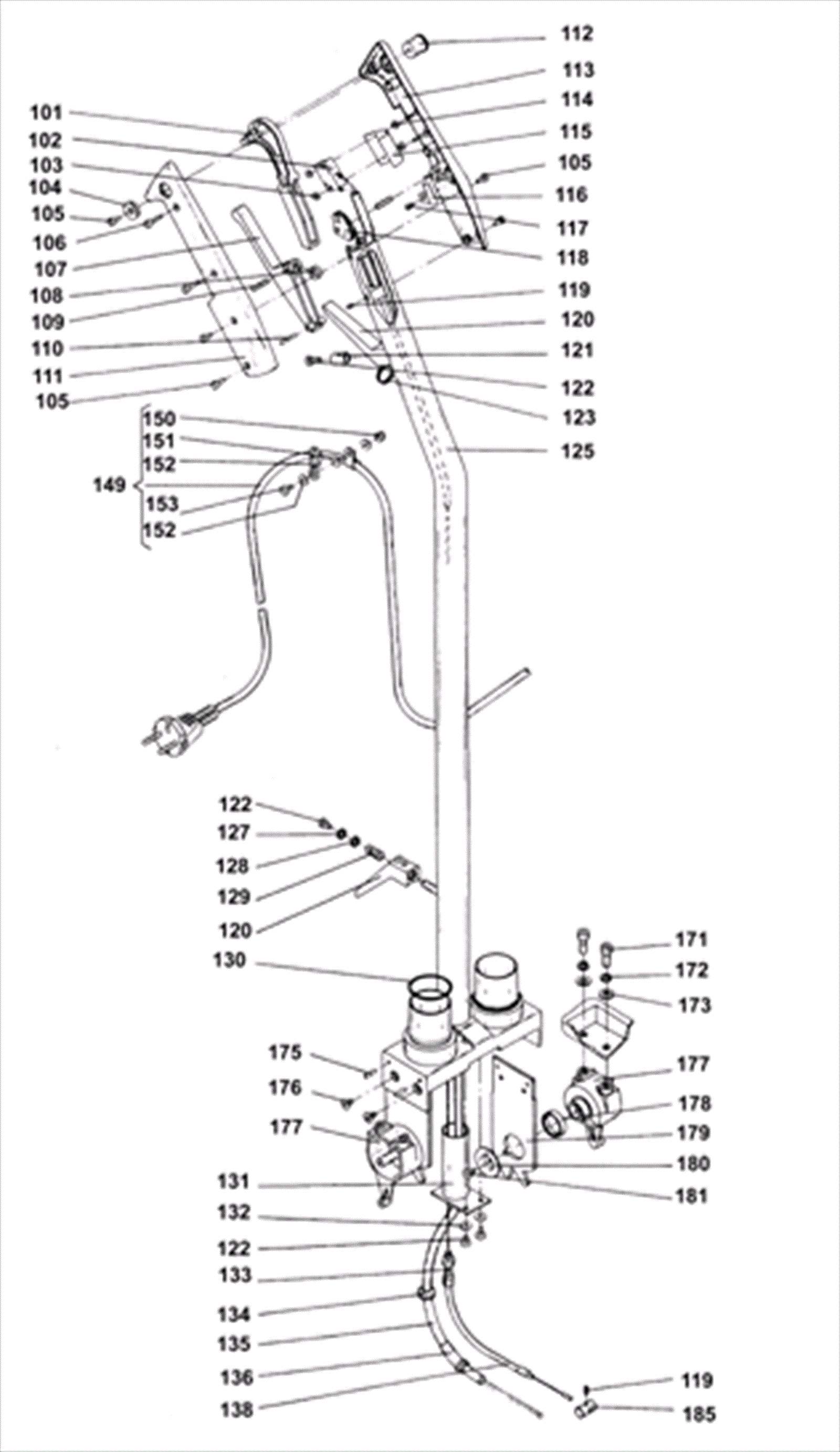

TAPISET 55 Guide Bar Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-6952 Switch lever $46.71 1 usually ships 30-75 days
102 192-5026 Microswitch $19.66 1 usually ships 30-75 days
103 192-0048 Nut M3 hex $2.44 2 usually ships 30-75 days
104 192-5979 Reduction disc (OBSOLETE) $8.33 1 usually ships 30-75 days
105 192-3237 Cylindrical screw M4 x 8 (OBSOLETE) $2.57 5 usually ships 1-5 days
106 192-3234 Cylindrical screw M4 x 16 (OBSOLETE) $5.21 2 usually ships 30-75 days
107 192-3315 Disengaging lever (OBSOLETE) $26.43 1 usually ships 1-5 days
108 192-2933 Contact roller (OBSOLETE) $2.20 1 usually ships 1-5 days
109 192-3381 Dowel pin 5 x 20 (OBSOLETE) $2.20 2 usually ships 1-5 days
110 192-3378 Dowel pin 3 x 20 (OBSOLETE) $2.20 1 usually ships 1-5 days
111 192-4170 Right bowl handle (OBSOLETE) $42.02 1 usually ships 1-5 days
112 192-7029 Tapped bushing (OBSOLETE) $21.44 1 usually ships 1-5 days
113 192-4169 Left bowl handle (OBSOLETE) $42.61 1 usually ships 1-5 days
114 192-7392 Washer (OBSOLETE) $2.20 2 usually ships 1-5 days
115 192-4580 Insulating strip (OBSOLETE) $2.20 1 usually ships 1-5 days
116 192-2963 Clamp cord (OBSOLETE) $2.20 1 usually ships 1-5 days
117 192-0013 Screw 3 x 5 raised head $4.59 1 usually ships 30-75 days
118 192-6333 Segment (OBSOLETE) $8.39 1 usually ships 1-5 days
119 192-4195 Screw M4 x 6 hex head grub $2.44 2 usually ships 1-5 days
120 192-2965 Cord hook (OBSOLETE) $7.41 2 usually ships 1-5 days
121 192-2364 Bushing (OBSOLETE) $5.06 1 usually ships 1-5 days
122 192-1140 Screw M4 x 8mm self tapping form $2.44 4 ships same day
123 192-1242 Key ring 16 $2.44 1 usually ships 30-75 days
125 192-4085 Complete guide bar (OBSOLETE) $1,635.70 1 usually ships 1-5 days
127 192-7893 Stopping washer Call for price 1 usually ships 1-5 days
128 192-7894 Washer Call for price 1 usually ships 1-5 days
129 192-5653 Pressure spring (OBSOLETE) $2.35 1 usually ships 1-5 days
130 192-5376 O-ring (OBSOLETE) $2.20 2 usually ships 1-5 days
131 192-5989 Reinforcement tube (OBSOLETE) $49.65 1 usually ships 1-5 days
132 192-1195 Washer M4 $2.44 5 ships same day
133 192-5983 Regulating screw (OBSOLETE) $11.88 1 usually ships 1-5 days
134 192-4059 Grommet (OBSOLETE) $2.20 1 usually ships 1-5 days
136 192-7896 Cable grommet (OBSOLETE) $2.89 1 usually ships 1-5 days
138 192-2129 Bowden cable (OBSOLETE) $50.04 1 usually ships 1-5 days
149a N/A Not available Call for price 1 Main cord SEA usually ships 3-26 days
149b N/A Not available Call for price 1 Main cord Schuko usually ships 3-26 days
150 192-6342 Nut M4 self locking $0.94 1 usually ships 30-75 days
151 192-0715 P clamp $2.44 1 usually ships 1-5 days
152 192-1189 Snap hook $2.44 1 usually ships 30-75 days
153 192-7898 Screw M5 x 8 counters head cap Call for price 1 usually ships 1-5 days
171 192-6489 Screw M6 x 16 socket head cap $2.44 4 usually ships 1-5 days
172 192-6620 Washer spring $4.52 4 usually ships 1-5 days
173 192-0200 Washer M6 $3.12 4 ships same day
175 192-0882 Extensible pin (OBSOLETE) $2.20 4 usually ships 1-5 days
176 192-7898 Screw M5 x 8 counters head cap Call for price 4 usually ships 1-5 days
177 192-1948 Bearing body (OBSOLETE) $43.90 2 usually ships 1-5 days
178 192-1960 Bearing ring (OBSOLETE) $12.20 2 usually ships 1-5 days
179 192-2716 Catch piece (OBSOLETE) $49.60 2 usually ships 1-5 days
180 192-6241 Safety disc (OBSOLETE) $3.86 2 usually ships 1-5 days
181 192-5929 Screw M4 x 8mm raised cheese head $0.89 2 ships same day
185 192-2566 Stop cable (OBSOLETE) $14.77 1 usually ships 1-5 days
