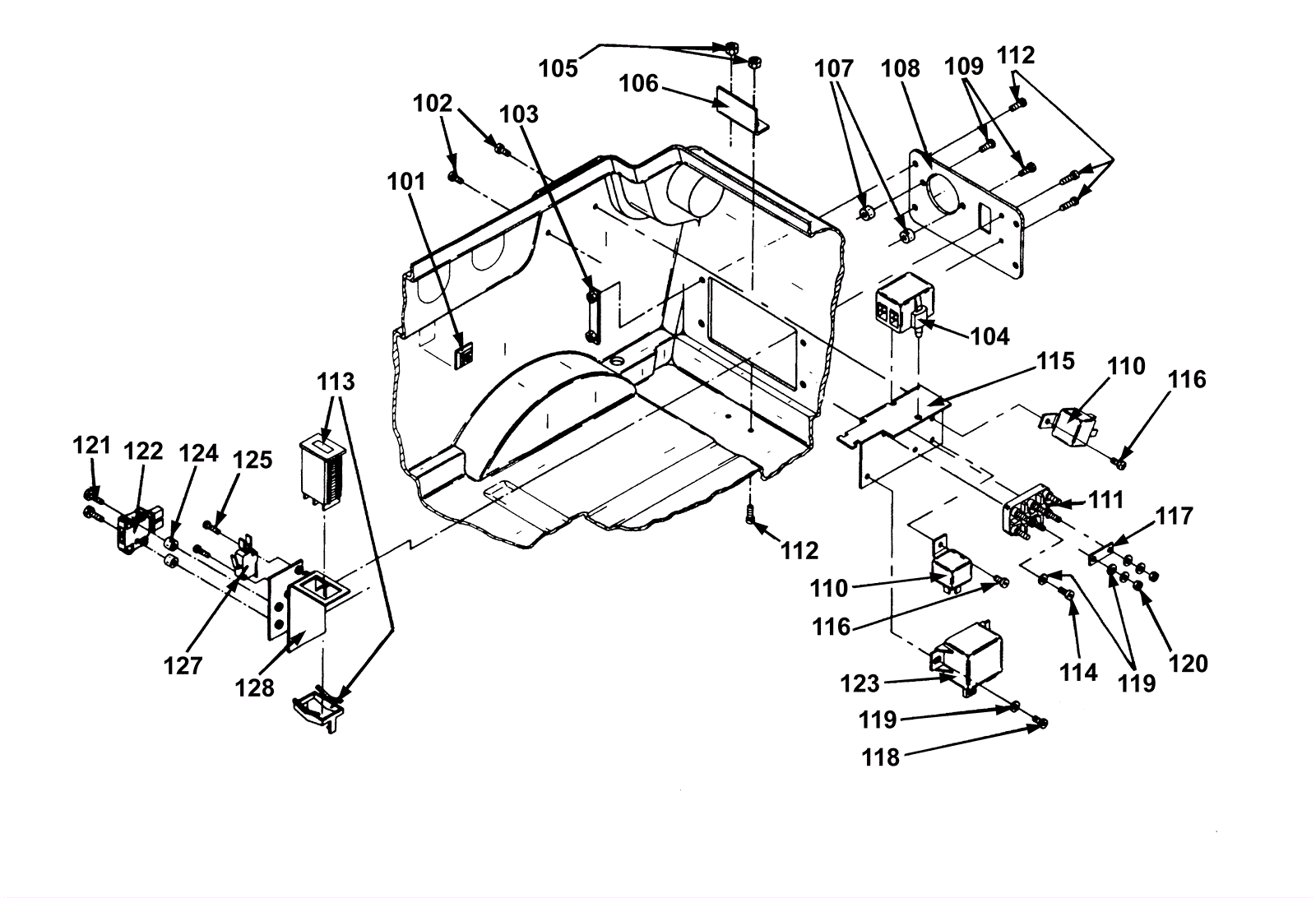

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
192-0008
|
Self-adhesive plate (OBSOLETE) |
8 |
|
|
102 |
192-8301
|
Screw M5 x 10 raised cheese head |
2 |
|
|
103 |
192-1263
|
Plate (OBSOLETE) |
2 |
|
|
104a |
192-3896
|
Fuse holder set (OBSOLETE) |
1 |
|
|
104b |
N/A
|
Not available |
1 |
(25amp bullet fuse) |
|
104c |
N/A
|
Not available |
1 |
Fuse 40 amp |
|
105 |
192-0039
|
Nut M4 hex |
2 |
|
|
106 |
N/A
|
Not available |
1 |
Bracket |
|
107 |
192-1264
|
Bushing (OBSOLETE) |
2 |
|
|
108 |
192-1265
|
Plate (OBSOLETE) |
1 |
|
|
109 |
192-1105
|
Screw M4 x 20mm socket head |
2 |
|
|
110 |
192-6000
|
Relay 24 volt 20amp (OBSOLETE) |
2 |
|
|
111 |
N/A
|
Not available |
1 |
Connection plate |
|
112 |
192-5921
|
Screw M4 x 12 raised cheese head |
8 |
|
|
113 |
192-0033
|
24V hour meter |
1 |
|
|
114 |
N/A
|
Not available |
2 |
Screw M5 x 12 cheese head |
|
115 |
N/A
|
Not available |
1 |
Plate |
|
116 |
N/A
|
Not available |
2 |
Screw M5 x 6 cheese head |
|
117 |
N/A
|
Not available |
1 |
Plate |
|
118 |
192-1240
|
Screw M5 x 10mm raised cheese head |
2 |
|
|
119 |
192-0880
|
Washer M5 |
8 |
|
|
120 |
192-0383
|
Nut M5 hex |
2 |
|
|
121 |
192-0294
|
Screw M3 x 20 raised cheese head |
2 |
|
|
122 |
192-8655
|
Charger jack housing |
1 |
|
|
123 |
192-0374
|
Relay 24V |
1 |
|
|
124 |
N/A
|
Not available |
1 |
Bushing |
|
125 |
192-0054
|
Screw M3 x 16mm raised cheese head |
2 |
|
|
127 |
192-1268
|
Microswitch (OBSOLETE) |
1 |
|
|
128 |
192-1269
|
Holder (OBSOLETE) |
1 |
|
|
