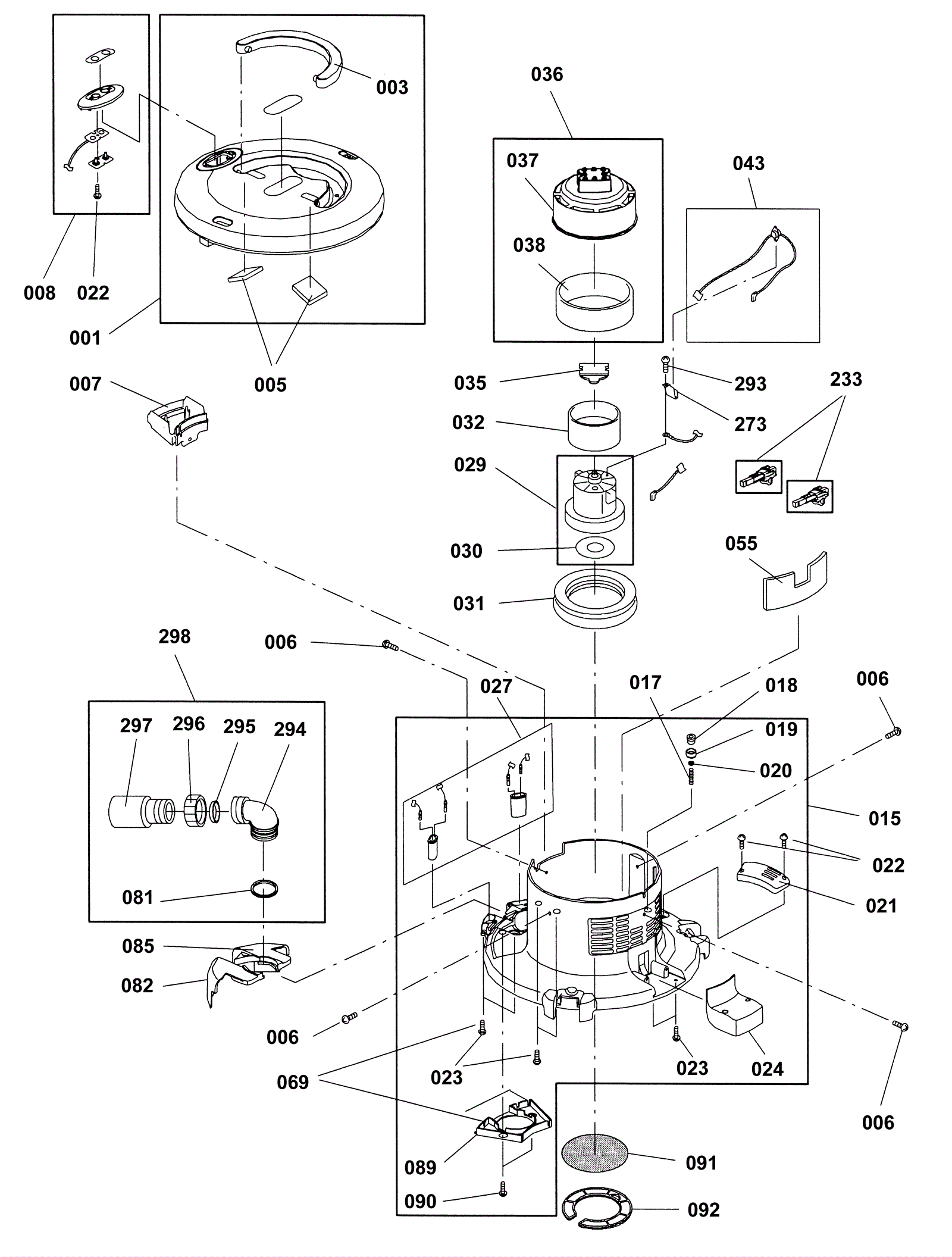

SMART Chassis Assembly 3

#PartDescriptionPriceReqNotesAvailability
001 192-7230 Upper case assembly (OBSOLETE) $108.89 1 usually ships 1-5 days
003 192-4151 Handle (OBSOLETE) $3.49 1 usually ships 1-5 days
005 192-8524 Canopy piece Call for price 2 usually ships 1-5 days
006 192-8482 Screw 4 x 16 pack of 10 (OBSOLETE) $2.20 4 usually ships 1-5 days
007 192-8525 Mount switch Call for price 1 usually ships 1-5 days
008 192-6941 Switch assembly (OBSOLETE) $39.33 1 usually ships 1-5 days
015 192-8526 Inside case with valve Call for price 1 usually ships 1-5 days
017 192-8527 Spring Call for price 1 usually ships 1-5 days
018 192-8528 Cylinder (OBSOLETE) Call for price 1 usually ships 24-40 days
019 192-8529 Cap Call for price 1 usually ships 1-5 days
020 192-8530 Piston Call for price 1 usually ships 1-5 days
021 N/A Not available Call for price 1 (Cover) usually ships 3-26 days
022 192-8483 Screw 3 x 8 Call for price 3 usually ships 1-5 days
023 192-8532 Screw M4 x 10 Call for price 4 usually ships 24-40 days
024 192-8533 Cover Call for price 1 usually ships 1-5 days
027 192-8534 Connection housing Call for price 1 usually ships 1-5 days
029 192-7245 Vacuum motor (OBSOLETE) $190.23 1 usually ships 1-5 days
030 192-8535 Silence ring (OBSOLETE) $3.40 1 usually ships 1-5 days
031 192-8536 Motor cushion Call for price 1 usually ships 1-5 days
032 192-8537 Silence pipe assembly Call for price 1 usually ships 1-5 days
035 192-8538 Motor support Call for price 1 usually ships 1-5 days
036 192-8539 Motor cover assembly Call for price 1 usually ships 1-5 days
037 192-8540 Motor cover Call for price 1 usually ships 1-5 days
038 192-8541 Silence ring (OBSOLETE) Call for price 1 usually ships 24-40 days
043 192-8542 Protector assembly (OBSOLETE) $19.68 1 usually ships 1-5 days
055 192-8543 Exhaust filter (OBSOLETE) $5.82 1 usually ships 1-5 days
069 N/A Not available Call for price usually ships 3-26 days
081 192-8544 Ring seal Call for price 1 usually ships 1-5 days
082 192-3172 Right hand cover $631.28 1 usually ships 1-5 days
085 192-3167 Left hand cover (OBSOLETE) $2.20 1 usually ships 1-5 days
089 192-8545 Cover Call for price 1 usually ships 1-5 days
090 192-8484 Screw 4 x 12 pack of 10 Call for price 2 usually ships 1-5 days
091 192-3649 Filter (OBSOLETE) $2.20 1 usually ships 1-5 days
092 192-3677 Filter stopper (OBSOLETE) $2.20 1 usually ships 1-5 days
233 192-8546 Carbon brush 1 pair (OBSOLETE) $14.01 1 usually ships 24-40 days
273 192-8547 Thermal switch (OBSOLETE) Call for price 1 usually ships 24-40 days
293 192-8548 Screw Call for price 1 usually ships 24-40 days
294 192-8549 Socket hose Call for price 1 usually ships 1-5 days
295 192-8550 Ring stopper Call for price 1 usually ships 1-5 days
296 192-8551 Connection dial Call for price 1 usually ships 1-5 days
297 192-8552 Hose joint Call for price 1 usually ships 1-5 days
298 192-4455 Complete socket hose (OBSOLETE) $14.40 usually ships 1-5 days
