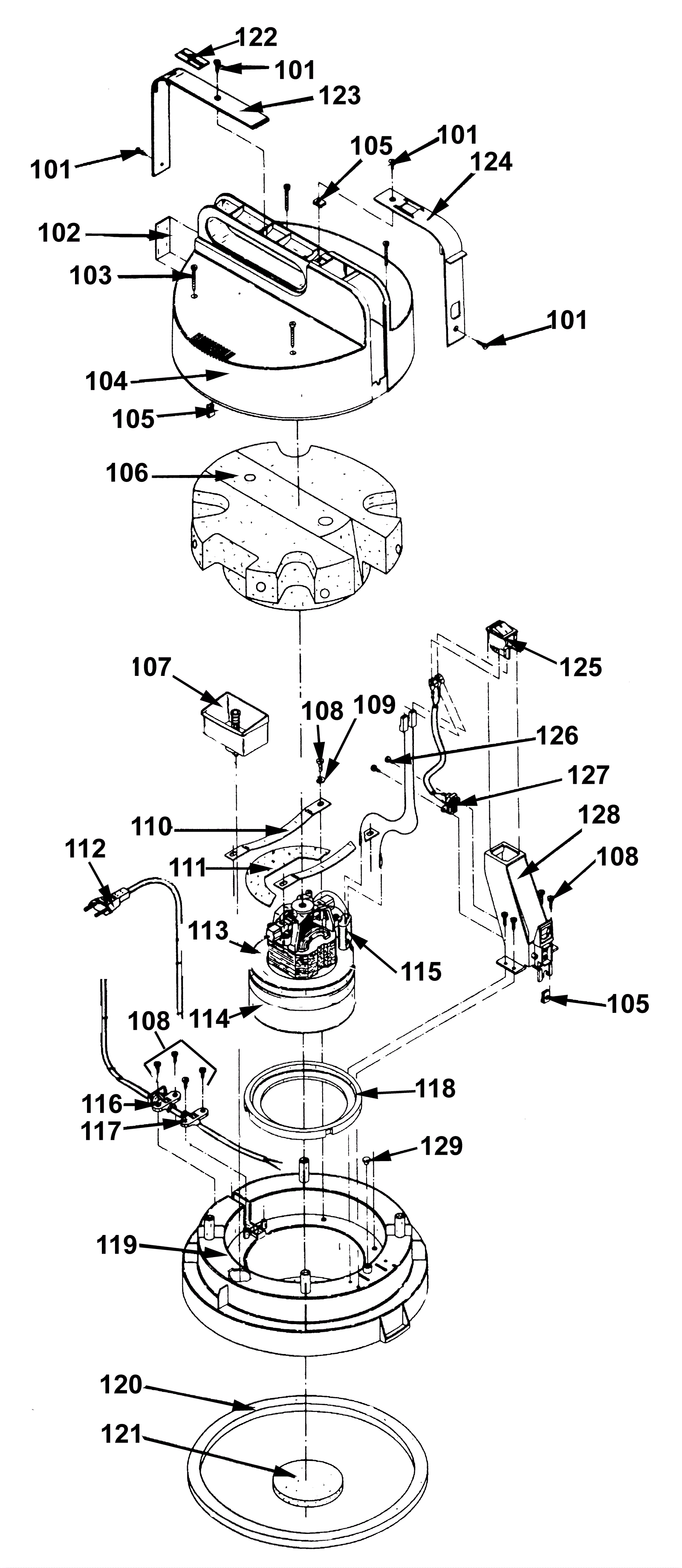

| # | Part | Description |
Req | Notes | Availability |
|---|
102 |
192-8446
|
Information label |
|
|
|
103 |
192-8443
|
Screw M4 x 30 cheese head |
4 |
|
|
104 |
N/A
|
Not available |
|
(Cap) |
|
105 |
192-5903
|
Quick nut |
3 |
|
|
106 |
192-5244
|
Noise absorbing cap (OBSOLETE) |
1 |
|
|
109 |
192-0149
|
Washer |
4 |
|
|
110 |
192-5580
|
Spring plate (OBSOLETE) |
2 |
|
|
111 |
N/A
|
Not available |
|
(Spacer) |
|
112 |
192-4921
|
120V 16/2 power cord (black) |
|
|
|
114 |
192-7288
|
Complete vacuum motor 115 volt (OBSOLETE) |
|
|
|
117 |
192-6782
|
Strain relief (OBSOLETE) |
1 |
|
|
118 |
192-6328
|
Sealing ring (OBSOLETE) |
1 |
|
|
119 |
192-4603
|
Intermediate piece |
|
|
|
120 |
192-3165
|
Cover gasket (OBSOLETE) |
1 |
|
|
121 |
192-3668
|
Filter disc (pkg of 10) |
1 |
|
|
124 |
N/A
|
Not available |
1 |
(Covering strip) |
|
125 |
N/A
|
Not available |
1 |
(Rocker switch) |
|
126 |
192-5444
|
Screw 3 1/2 x 9 1/2 pan head self tapping |
2 |
|
|
128 |
N/A
|
Not available |
1 |
|
|
N/S |
192-4581
|
Insulating tube 4 (OBSOLETE) |
|
|
|
N/S |
192-4583
|
Insulating tube 8 |
|
|
|
N/S |
192-8445
|
Double female plate clip |
|
|
|
N/S |
192-4616
|
Female isolation plate clip (OBSOLETE) |
|
|
|
N/S |
192-3588
|
Female plate clip 6 (OBSOLETE) |
|
|
|
N/S |
192-3587
|
Female plate clip 4 (OBSOLETE) |
|
|
|
N/S |
192-3370
|
Double female plate clip |
|
|
|
