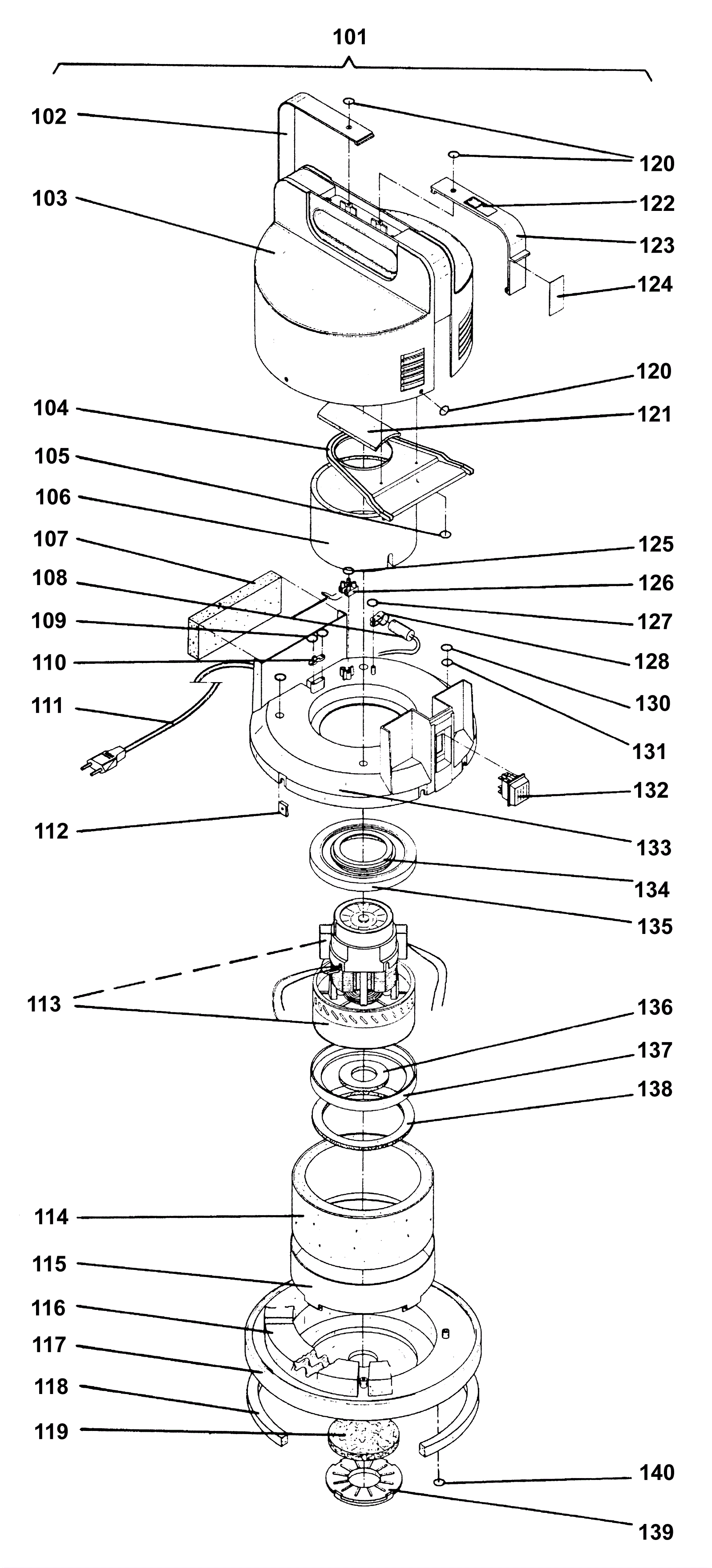

SAMBA S6 Top Part Assembly

#PartDescriptionPriceReqNotesAvailability
0.9835 192-4583 Insulating tube 8 $2.56 usually ships 1-5 days
101 N/A Not available Call for price Upper part vacuum cleaner usually ships 3-26 days
102 192-3203 Covering strip (OBSOLETE) $16.13 1 usually ships 1-5 days
103 192-2608 Cap (OBSOLETE) $119.68 usually ships 1-5 days
104 192-8318 Guiding plate (OBSOLETE) Call for price 1 usually ships 1-5 days
105 192-5444 Screw 3 1/2 x 9 1/2 pan head self tapping $5.50 2 usually ships 1-5 days
106 192-5253 Noise absorbing mantle (OBSOLETE) $37.18 1 usually ships 1-5 days
107 192-5267 Noise absorbing sheet (OBSOLETE) $5.91 1 usually ships 1-5 days
108 N/A Not available Call for price Noise support condenser usually ships 3-26 days
109 192-6285 Screw KA 40 x 16 $2.44 2 usually ships 1-5 days
110 192-8326 Clamp cable $0.94 usually ships 1-5 days
111 192-8327 Main cord Call for price usually ships 1-5 days
112 192-5903 Quick nut $2.44 6 usually ships 30-75 days
113a 192-7253 Vacuum motor 120 volt / 60hz (OBSOLETE) $816.64 usually ships 1-5 days
113b 192-8328 Carbon brush (OBSOLETE) Call for price usually ships 1-5 days
114 192-5252 Noise absorbing mantle (OBSOLETE) $35.35 1 usually ships 1-5 days
115 192-6524 Spacer (OBSOLETE) $69.74 usually ships 1-5 days
116 192-5271 Noise absorbing strip (OBSOLETE) $2.20 4 usually ships 1-5 days
117 192-8329 Base Call for price usually ships 1-5 days
118 192-1900 Base gasket (OBSOLETE) $25.42 1 usually ships 1-5 days
119 192-3668 Filter disc (pkg of 10) $9.85 1 ships same day
120 192-8321 Screw B 4, 2 x 13 countersunk tap $0.94 8 usually ships 1-5 days
121 192-5455 Screw M2-.9 x 16mm pan head tapping $3.78 1 usually ships 1-5 days
122 192-8322 Taski samba label Call for price 1 usually ships 1-5 days
123 192-3202 Covering strip (OBSOLETE) $15.15 1 usually ships 1-5 days
124 192-8330 Informating label Call for price usually ships 1-5 days
125 192-5455 Screw M2-.9 x 16mm pan head tapping $3.78 1 usually ships 1-5 days
126 192-2895 2 way connection block $2.44 1 usually ships 30-75 days
127 192-8324 Screw 4-13/64 x 19 pad head tapp. $0.92 1 usually ships 1-5 days
128 192-2579 Cable tie $2.44 1 usually ships 1-5 days
130 192-5925 Screw M4 x 40 raised cheese head $4.76 4 usually ships 30-75 days
131 999-0315 Washer #8 external star lock zinc plated $0.99 4 ships same day
132a 192-6095 Rocking switch (OBSOLETE) $45.69 1 usually ships 1-5 days
132b 192-2631 Cap with frame (OBSOLETE) $12.47 Includes 132b usually ships 1-5 days
133 192-8331 Intermediate piece Call for price usually ships 1-5 days
134 192-5418 Packing ring (OBSOLETE) $19.92 1 usually ships 1-5 days
135 192-6201 Rubber ring (OBSOLETE) $26.06 1 usually ships 1-5 days
136 192-6324 Sealing ring (OBSOLETE) $2.20 1 usually ships 1-5 days
137 192-0253 Gasket (OBSOLETE) $6.47 1 usually ships 30-75 days
138 192-6326 Sealing ring (OBSOLETE) $7.48 1 usually ships 1-5 days
139 192-3666 Complete filter (OBSOLETE) $9.39 1 usually ships 1-5 days
140 192-6154 Special screw M4 round head (OBSOLETE) $2.74 4 usually ships 1-5 days
N/S N/A Not available Call for price Cable clamp usually ships 3-26 days
