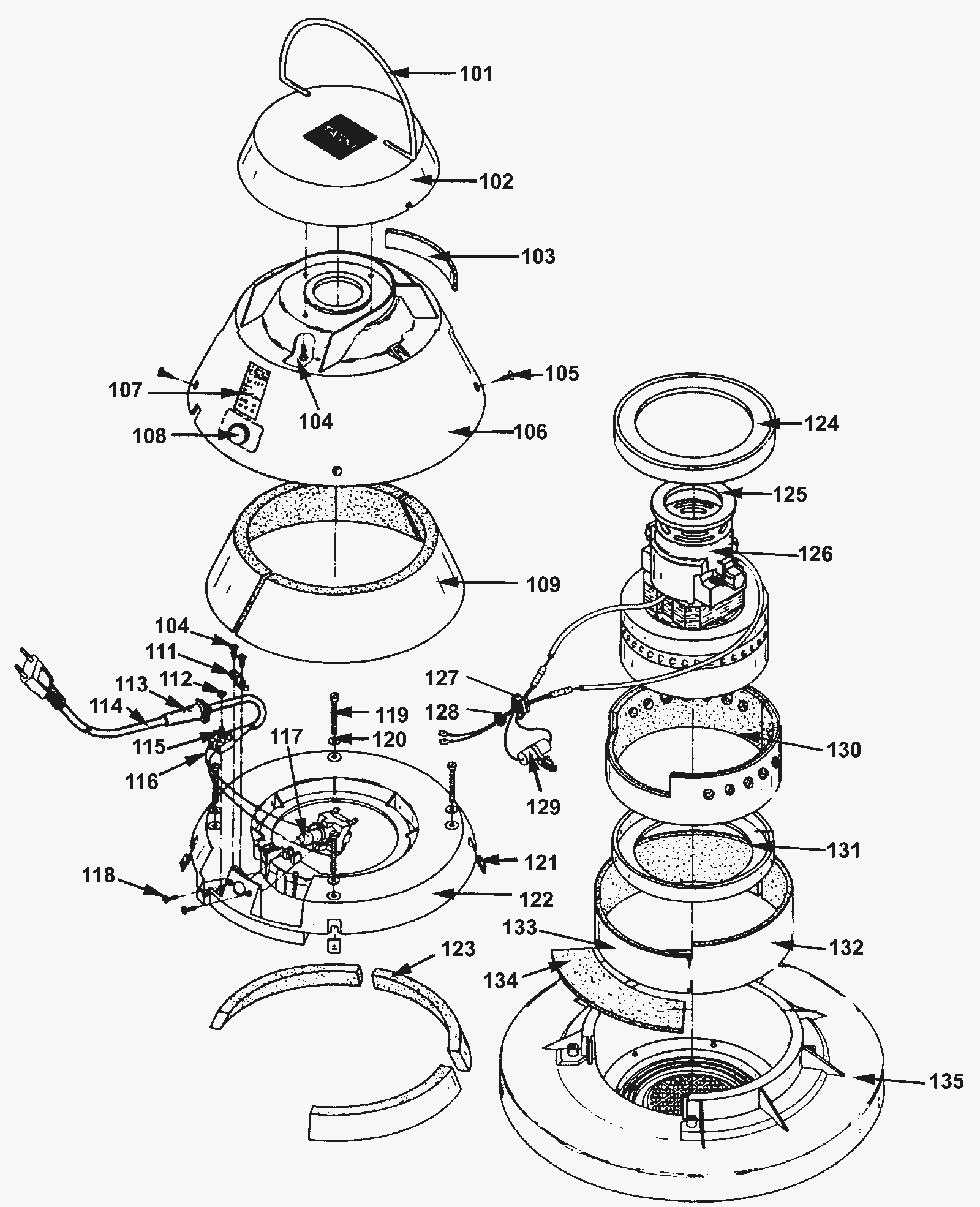

Lid Assembly

#PartDescription ReqNotesAvailability
101 N/A Not available 1 Handle
102 N/A Not available 1 Cover cap
103 N/A Not available 1 Anti-splash strip
104 192-8298 Screw B 4, 2 x 13 pan head tap 6
105 192-8321 Screw B 4, 2 x 13 countersunk tap 4
106 N/A Not available 1 (Top cover)
107 192-8402 Information label
108 192-8372 Switch cap 1
109 N/A Not available 2 Noise absorbing segment
112 192-8386 Washer retaining 1
113 192-2539 Cable grommet (OBSOLETE) 1
114 192-8403 Main cord
115 192-2895 2 way connection block 1
116 192-8374 Cable 1 mm2 2
117 N/A Not available 1 main switch
118 192-8375 Screw B 4, 2 x 13 countersunk tap 2
119 192-5925 Screw M4 x 40 raised cheese head 4
120 192-0149 Washer 4
121 192-5903 Quick nut 4
122 N/A Not available 1 Intermediate piece
123 N/A Not available 3 Noise absorbing segment
124 192-0253 Gasket (OBSOLETE) 1
125 192-8404 Sealing ring
126 192-8405 120V 2 stage vacuum motor peripheral
127 192-2499 Cable clamp (OBSOLETE) 1
128 192-8406 Ferrite tube
129 192-2867 Condensor
130 N/A Not available 1 Noise absorbing mantle
131 192-0253 Gasket (OBSOLETE)
132 N/A Not available 2 Noise absorbing segment
133 N/A Not available 1 Noise absorbing segment
134 N/A Not available 1 Sealing segment
135 N/A Not available 1 Motor base
