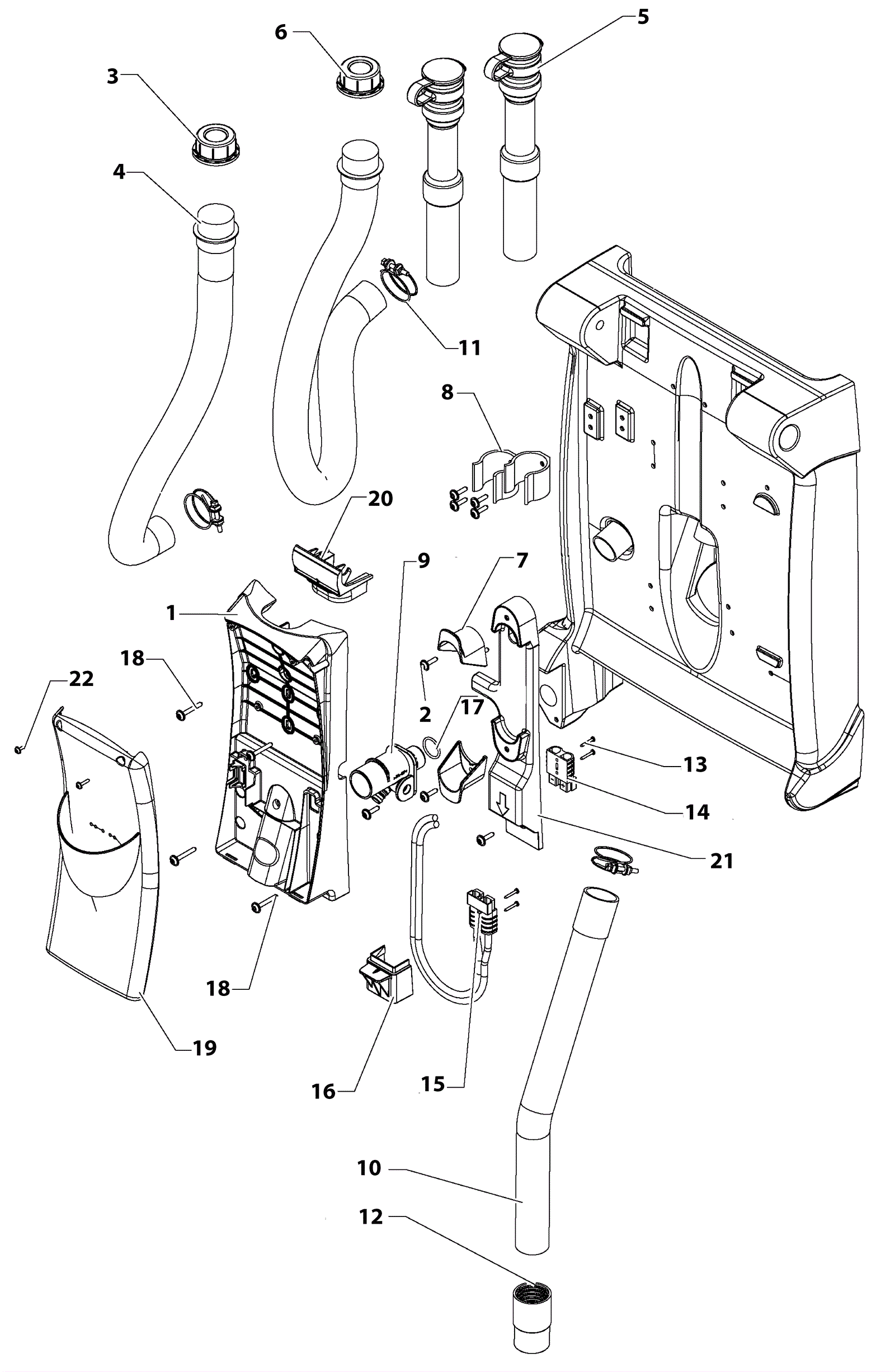

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
292-5408
|
Rear cover |
$34.39
|
1 |
|
usually ships 24-40 days |
2 |
192-1561
|
Screw 60 x 20 torx head |
$2.44
|
9 |
|
ships same day |
3 |
192-0236
|
Threaded cap (blue) |
$2.44
|
1 |
|
ships same day |
4 |
192-0979
|
Hose |
$27.18
|
2 |
|
ships same day |
5 |
192-8971
|
Drain hose with attached gray cap |
$99.22
|
2 |
(optional) |
ships same day |
6 |
192-0237
|
Threaded cap (red) |
$2.44
|
1 |
|
ships same day |
7 |
192-2550
|
Holder |
$2.88
|
2 |
|
ships same day |
8 |
192-0099
|
Hose holder |
$1.79
|
2 |
|
ships same day |
9 |
192-9243
|
Discharge housing includes o-rings |
$21.74
|
1 |
|
ships same day |
10 |
192-0133
|
Hose |
$18.93
|
1 |
|
ships same day |
11 |
192-0130
|
Hose clamp |
$2.44
|
3 |
|
ships same day |
12 |
192-0113
|
Hose cuff |
$2.88
|
1 |
|
ships same day |
13 |
192-0549
|
Screw KA 35 x 20 |
$2.44
|
4 |
|
ships same day |
14 |
192-0388
|
50amp charger plug SB50 with post (gray) |
$8.86
|
1 |
|
ships same day |
15 |
192-0389
|
50amp charger plug SB50 with hole (gray) |
$16.68
|
1 |
|
ships same day |
16 |
192-5595
|
Charger plug housing |
$2.93
|
1 |
|
ships same day |
17 |
192-5369
|
O-ring |
$2.44
|
1 |
|
usually ships 24-40 days |
18 |
192-1557
|
Screw 60 x 35 torx head |
$2.44
|
4 |
|
ships same day |
19 |
292-5410
|
Cover |
$26.00
|
1 |
|
usually ships 24-40 days |
20 |
192-9984
|
Cover |
$10.81
|
1 |
|
usually ships 24-40 days |
21 |
292-5411
|
Cover |
$11.23
|
1 |
|
ships same day |
22 |
192-1595
|
Screw M40 x 16mm torx head |
$2.44
|
2 |
|
ships same day |
