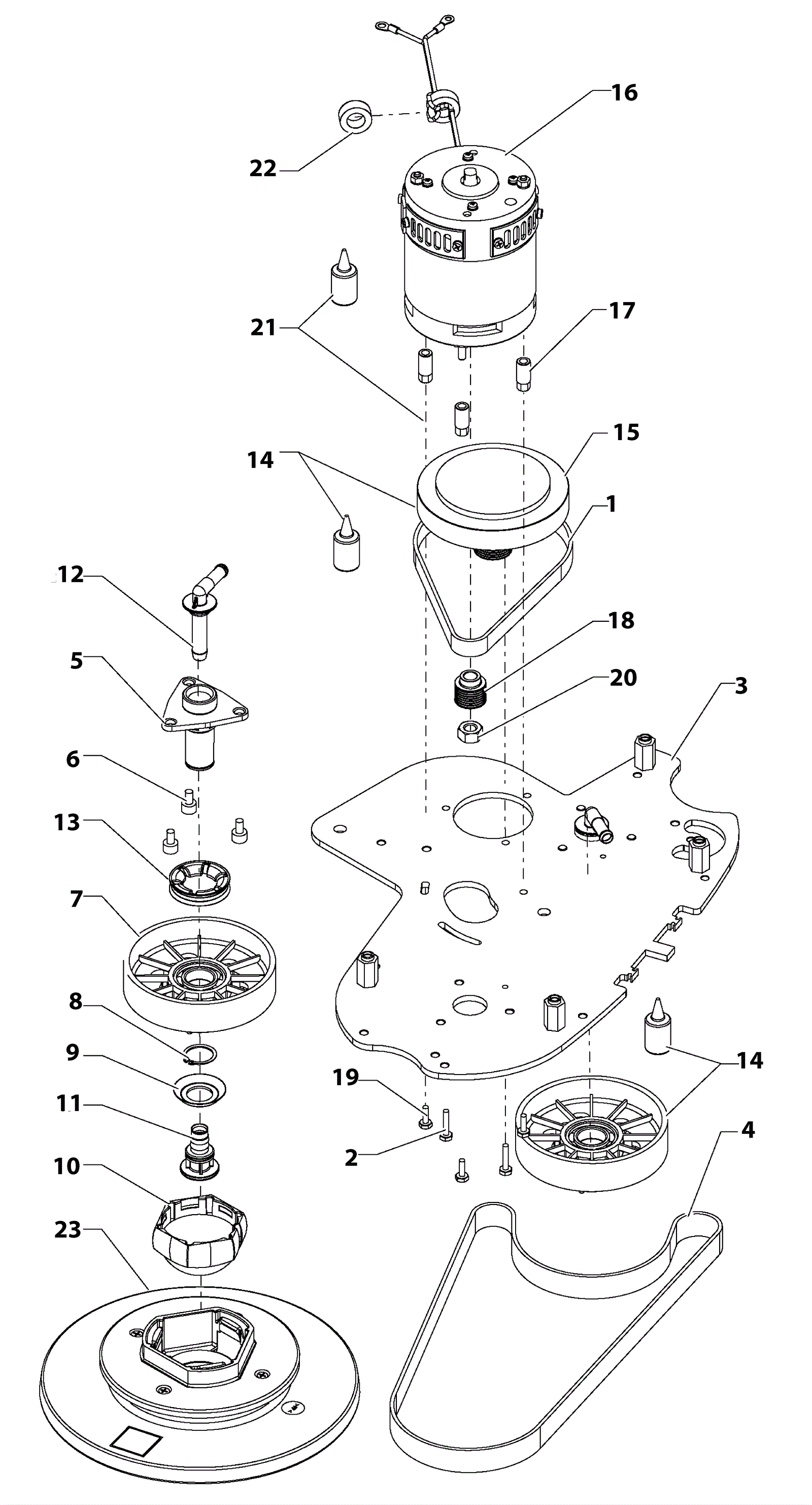

Swingo 955B Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-5626 Poly v-belt $22.69 1 ships same day
2 192-1285 Screw M6 x 25mm hex head $2.56 3 ships same day
3 192-9567 Base plate $216.28 1 usually ships 17-21 days
4 192-5623 Poly v-belt $70.97 1 ships same day
5 192-0590 Pulley axle $13.33 2 ships same day
6 192-0364 Screw M8 x 12mm socket head $2.64 6 ships same day
7 192-5814 Pulley with bearings (bearings not available separate) $33.08 2 ships same day
8 192-0503 Retaining ring $2.56 2 ships same day
9 192-6320 Sealing ring $2.56 2 ships same day
10 192-3032 Drive hub $16.80 2 ships same day
11 192-2728 Flanged bushing $5.64 2 ships same day
12 192-1677 Angled nipple $2.56 2 ships same day
13 192-6321 Sealing ring $3.93 2 ships same day
14 192-1872 Grease $11.99 1 ships same day
15 292-0068 Pulley kit (includes bearings and clips) $126.87 1 ships same day
16 192-5078 24V brush motor with noise suppression $345.87 1 ships same day
17 192-8633 Stud $7.82 3 ships same day
18 192-5815 Pulley $10.46 1 ships same day
19 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
20 192-0800 Nut M12 left hand thread hex $4.62 1 ships same day
21 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
22 192-0712 Coil with toric core $7.13 1 usually ships 17-21 days
23 192-9430 11 inch pad driver $173.38 2 ships same day
