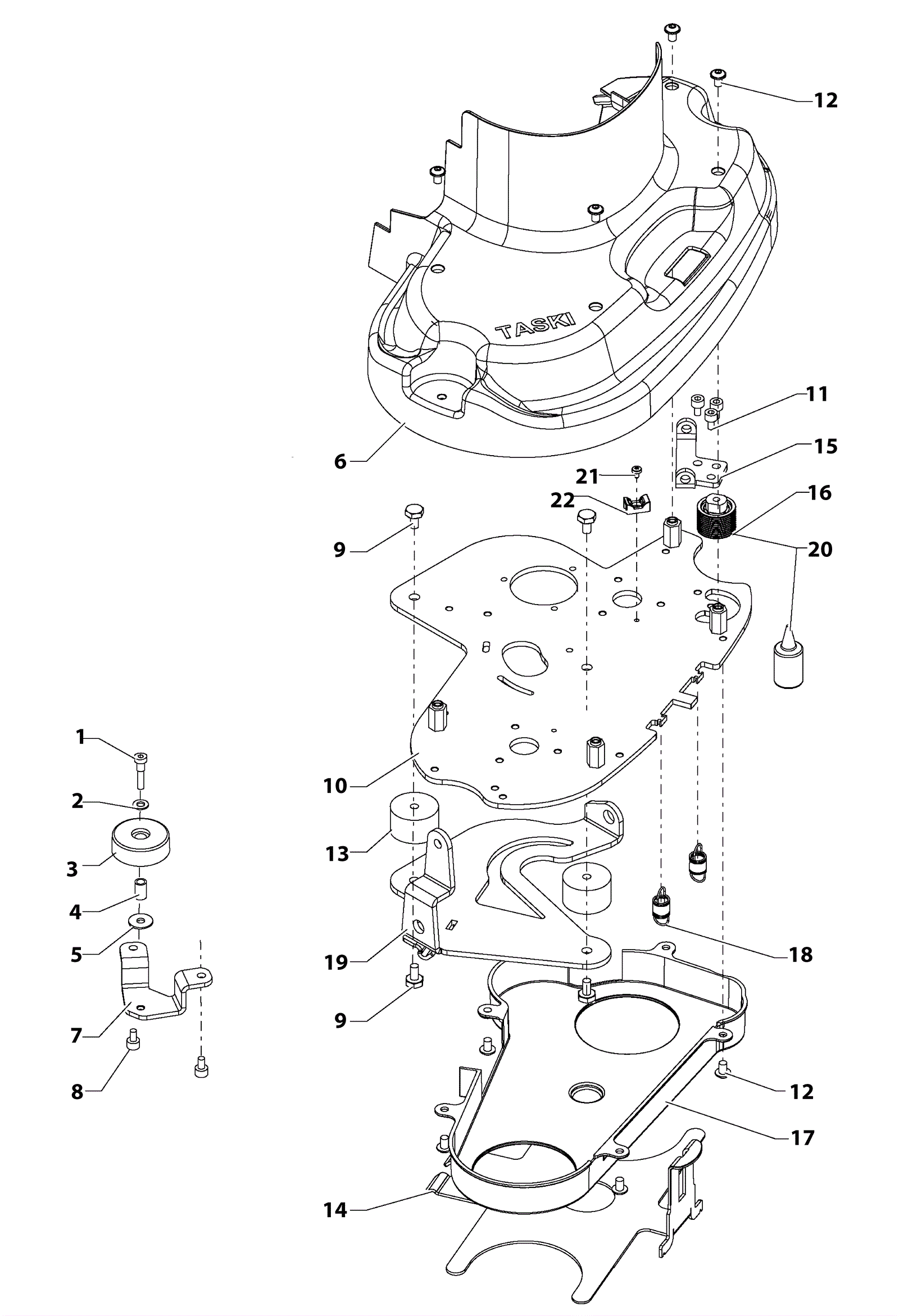

Swingo 955B Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-1289 Screw M8 x 35mm socket head cap $4.74 1 usually ships 17-21 days
2 192-0105 Washer M8 $2.56 1 ships same day
3 192-0329 Bumper wheel $3.66 1 ships same day
4 192-1290 Bushing $5.47 1 ships same day
5 192-0604 Washer M8 $2.56 1 ships same day
6 292-8038 Brush housing $149.08 1 usually ships 17-21 days
7 292-5103 Supporting angle $18.03 1 usually ships 17-21 days
8 192-1575 Buffer $2.56 2 usually ships 17-21 days
9 192-1455 Screw M10 x 16mm hex head $4.43 4 ships same day
10 192-9567 Base plate $216.28 1 usually ships 17-21 days
11 192-0364 Screw M8 x 12mm socket head $2.64 5 ships same day
12 192-0348 Screw M8 x 12mm truss head $2.56 9 ships same day
13 192-0492 Buffer $9.69 2 ships same day
14 192-9568 Bracket $60.72 1 usually ships 17-21 days
15 192-2826 Clamp $7.69 1 usually ships 17-21 days
16 192-4543 Axle idler kit $50.72 1 ships same day
17 192-9569 Protective cover $10.52 1 usually ships 17-21 days
18 192-9265 Tension spring $2.56 2 ships same day
19 192-9570 Bracket $70.20 1 usually ships 17-21 days
20 192-1872 Grease $11.99 1 ships same day
21 192-0162 Screw M5 x 8 self tapping forming $3.03 1 ships same day
22 292-8039 Clamp $2.76 1 ships same day
