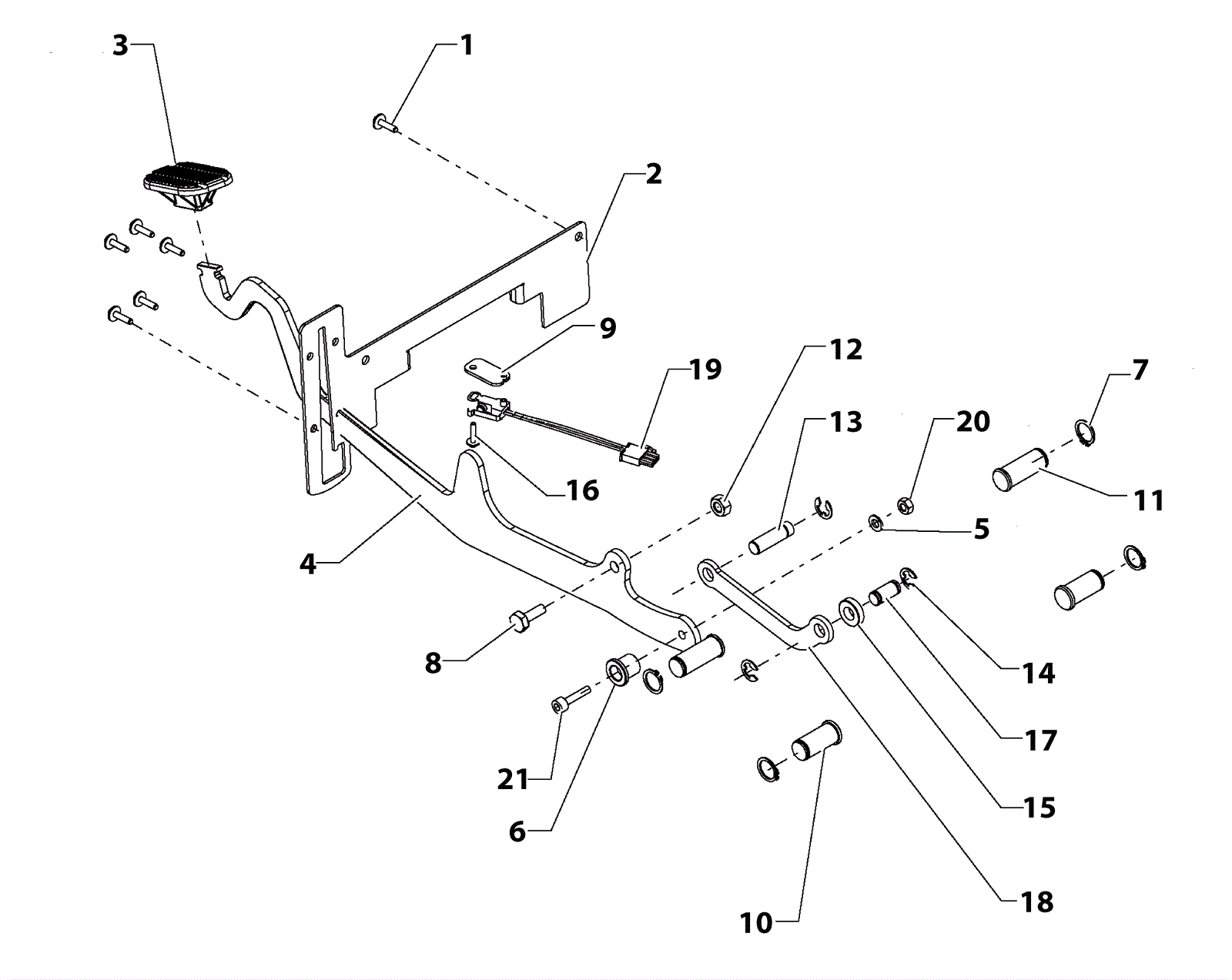

Swingo 955B Tool Lowering Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-1571 Screw M50 x 16mm $2.44 6 ships same day
2 292-8035 Plate $87.23 1 usually ships 24-40 days
3 192-8903 Pedal pad $2.44 1 ships same day
4 292-8034 Lever $51.48 1 usually ships 24-40 days
5 192-0200 Washer M6 $3.12 1 usually ships 24-40 days
6 192-8904 Bushing $5.32 1 ships same day
7 192-0075 Retaining ring $5.81 4 ships same day
8 192-0153 Screw M8 x 20mm hex head $0.89 1 ships same day
9 292-8037 Plate $4.28 1 usually ships 24-40 days
10 192-1776 Axle $8.79 2 usually ships 24-40 days
11 192-1775 Axle $8.99 2 ships same day
12 192-0347 Nut M8 hex $0.89 1 ships same day
13 192-1774 Axle $5.81 1 usually ships 24-40 days
14 192-0086 Snap ring $2.44 3 ships same day
15 192-7407 Insulating washer $2.44 1 usually ships 24-40 days
16 192-1595 Screw M40 x 16mm torx head $2.44 1 ships same day
17 292-8036 Bolt $10.09 1 usually ships 24-40 days
18 292-8033 Shackle $8.35 1 usually ships 24-40 days
19 192-4799 Limit switch $64.35 1 ships same day
20 192-0151 Nut M6 hex $2.44 1 ships same day
21 192-0066 Screw M6 x 25mm socket head cap $3.49 1 usually ships 24-40 days
