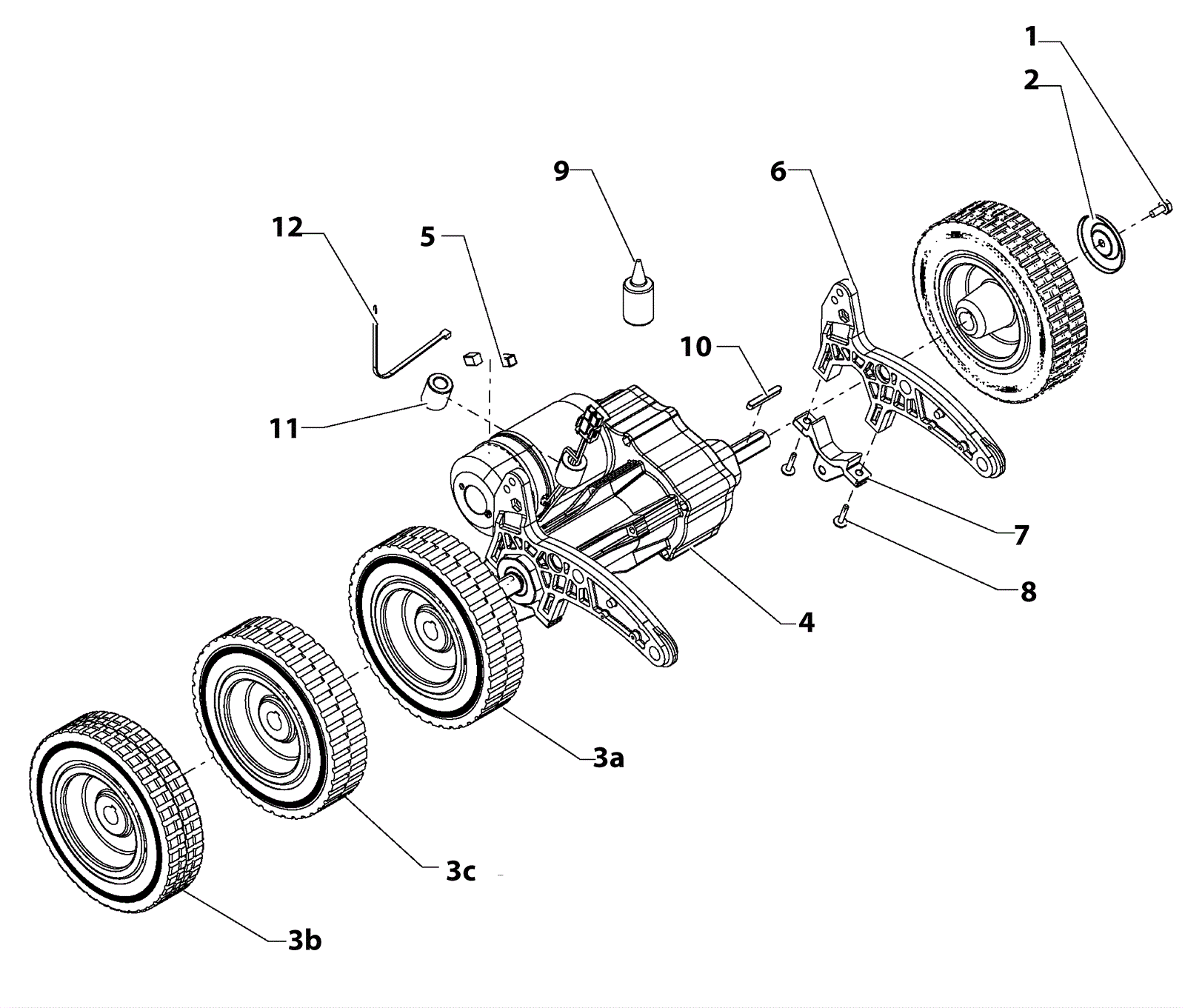

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
$0.99
|
2 |
|
ships same day |
2 |
192-3077
|
Disk |
$4.24
|
2 |
|
ships same day |
3a |
192-7505
|
Drive wheel (standard) (gray) |
$120.64
|
2 |
|
ships same day |
3b |
192-3397
|
Nonmarking drive wheel (gray) |
$123.97
|
2 |
(optional) |
ships same day |
3c |
192-7160
|
Traction drive wheel (brown) |
$158.72
|
2 |
(optional) |
usually ships 17-21 days |
4 |
192-1500
|
Transaxle drive unit |
$795.36
|
1 |
|
ships same day |
5 |
192-2665
|
Carbon brush (pkg of 2) |
$68.16
|
1 |
|
usually ships 17-21 days |
6 |
192-3209
|
Cradle |
$15.00
|
2 |
|
ships same day |
7 |
192-2168
|
Bracket |
$9.36
|
2 |
|
ships same day |
8 |
192-1509
|
Screw 60 x 25 torx head |
$4.57
|
4 |
|
ships same day |
9 |
192-1872
|
Grease |
$11.99
|
1 |
|
ships same day |
10 |
192-4651
|
Square keyway |
$2.56
|
2 |
|
usually ships 17-21 days |
11 |
192-1153
|
Toroidal choke |
$9.87
|
1 |
|
usually ships 17-21 days |
12 |
192-0102
|
7 3/4 inch cable tie |
$2.56
|
2 |
|
usually ships 17-21 days |
