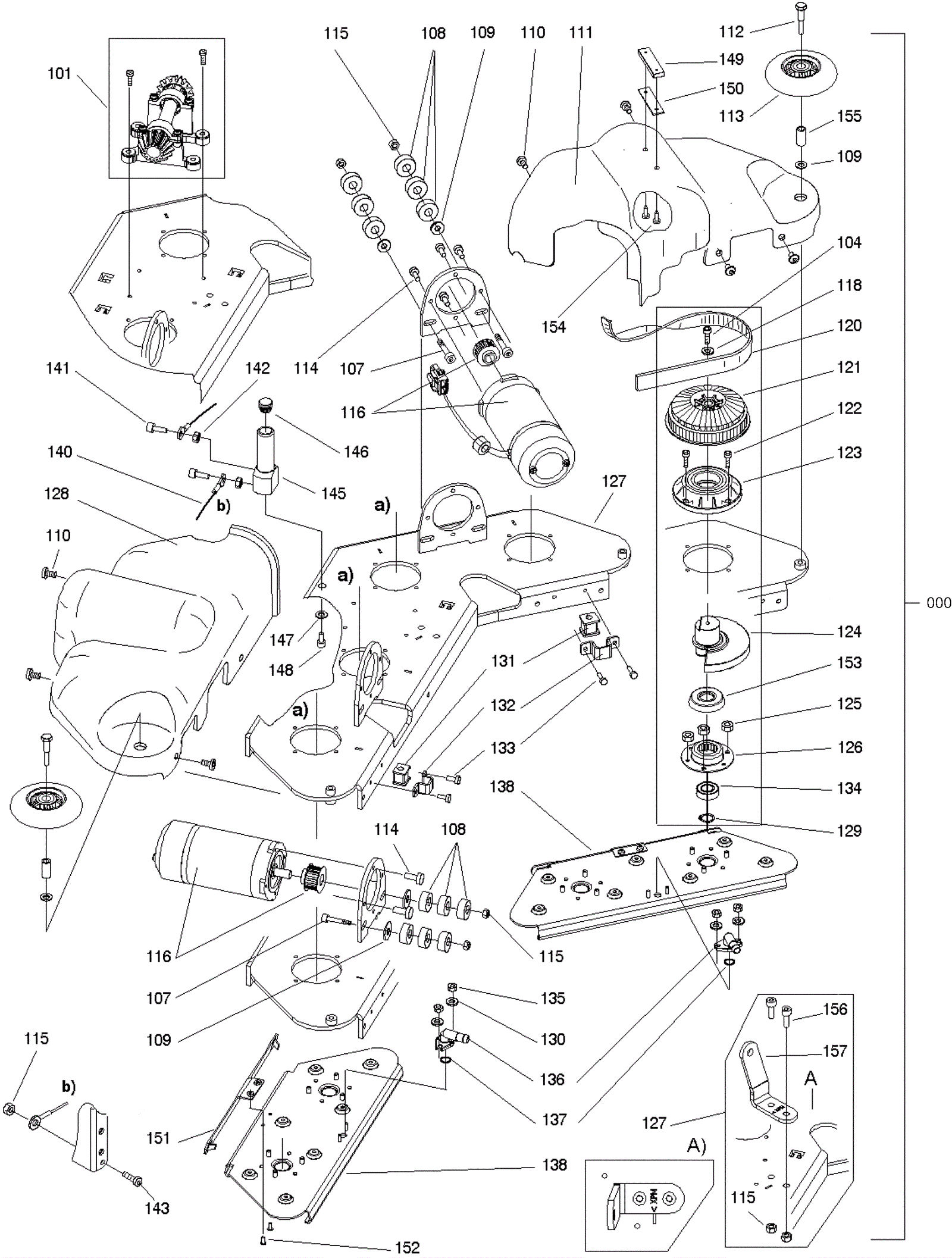

SWINGO XP Brush Drive Assembly - 1

#PartDescriptionPriceReqNotesAvailability
000 292-0747 Brush drive assembly $3,512.58 1 (includes 101-157) usually ships 30-75 days
101 192-4997 Support bracket with bearing kit $167.89 1 (includes support bracket and bearing) ships same day
104 192-0066 Screw M6 x 25mm socket head cap $3.49 4 ships same day
107 192-0082 Screw M8 x 40mm socket head cap $0.89 4 ships same day
108 192-1866 Ball bearing $2.44 12 usually ships 30-75 days
109 192-0105 Washer M8 $2.44 6 ships same day
110 192-0348 Screw M8 x 12mm truss head $2.44 8 ships same day
111 192-9224 Left hand brush housing $61.41 1 usually ships 30-75 days
112 192-9212 Screw M8 x 40/22mm hex $4.35 2 usually ships 30-75 days
113 192-8744 Wheel $31.57 2 ships same day
114 192-0077 Screw M5 x 12mm socket head $0.89 8 ships same day
115 192-0510 Nut M8 self locking $2.44 8 ships same day
116 192-8749 Motor $394.72 2 ships same day
118 192-0067 Washer 4 x 17 x 3 $2.44 4 ships same day
120 192-9225 Toothed belt $27.42 2 ships same day
121 192-9226 Bevel gear $19.78 4 ships same day
122 192-0007 Screw M6 x 16mm socket head cap $2.44 16 ships same day
123 192-9227 Flanged bearing $50.02 4 ships same day
124 192-9228 Eccentric shaft $121.68 4 ships same day
125 192-6345 Nut M6 self locking $2.44 12 ships same day
126 192-9229 Flanged bearing $39.03 4 usually ships 30-75 days
127 192-9230 Motor base plate $495.24 1 (includes 115, 156-157) usually ships 30-75 days
128 192-9231 Right hand brush housing $67.23 1 usually ships 30-75 days
129 192-6039 Retaining ring $2.44 4 ships same day
130 192-0325 Washer $2.44 4 usually ships 30-75 days
131 192-9195 Rubber bearing $2.44 2 usually ships 30-75 days
132 192-9196 Retaining clip $2.52 2 usually ships 30-75 days
133 192-0289 Screw M6 x 10mm socket head $2.44 4 ships same day
134 192-9146 Ball bearing $19.36 4 usually ships 30-75 days
135 192-0235 Nut M4 self locking $2.44 4 ships same day
136 192-9232 Angled nipple $13.19 2 ships same day
137 192-9233 O-ring $2.93 2 usually ships 30-75 days
138 192-9234 Brush console with bracket $325.37 2 (includes 151-152) usually ships 30-75 days
140 192-9235 Steel rope $30.60 2 usually ships 30-75 days
141 192-0243 Screw M8 x 20mm socket head $2.44 2 usually ships 30-75 days
142 192-4211 Nut M8 hex $2.44 2 ships same day
143 192-0078 Screw M8 x 16mm socket head $2.44 2 ships same day
145 292-0122 Bolt $47.08 1 usually ships 30-75 days
146 192-9694 Stopple $2.44 1 ships same day
147 192-0496 Washer M10 $2.44 1 ships same day
148 192-0264 Screw M10 x 20mm socket head cap $5.86 1 usually ships 30-75 days
149 292-0402 Plate $52.46 1 usually ships 30-75 days
150 292-0403 Gasket $4.10 1 usually ships 30-75 days
151 192-9321 Bracket $68.70 2 usually ships 30-75 days
152 192-0786 Screw 4 x 10 socket head $2.44 4 usually ships 30-75 days
153 192-9322 Bearing cover $6.84 4 usually ships 30-75 days
154 192-0941 Screw M40 x M10 for plastic $4.35 2 usually ships 30-75 days
155 192-9803 Bushing $2.52 2 ships same day
156 192-0327 Screw M8 x 22 socket head cap $5.01 2 usually ships 30-75 days
157 292-0404 Holder $18.76 1 usually ships 30-75 days
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
N/S 192-9210 Hose clamp $2.44 4 (included with KIT1) ships same day
N/S 192-0404 Wire reinforced hose (sold by the inch) $0.99 21 inch (included with KIT1) (2 21 inch sections required) usually ships 30-75 days
KIT 1 192-9418 Pad driver $177.78 2 ships same day
