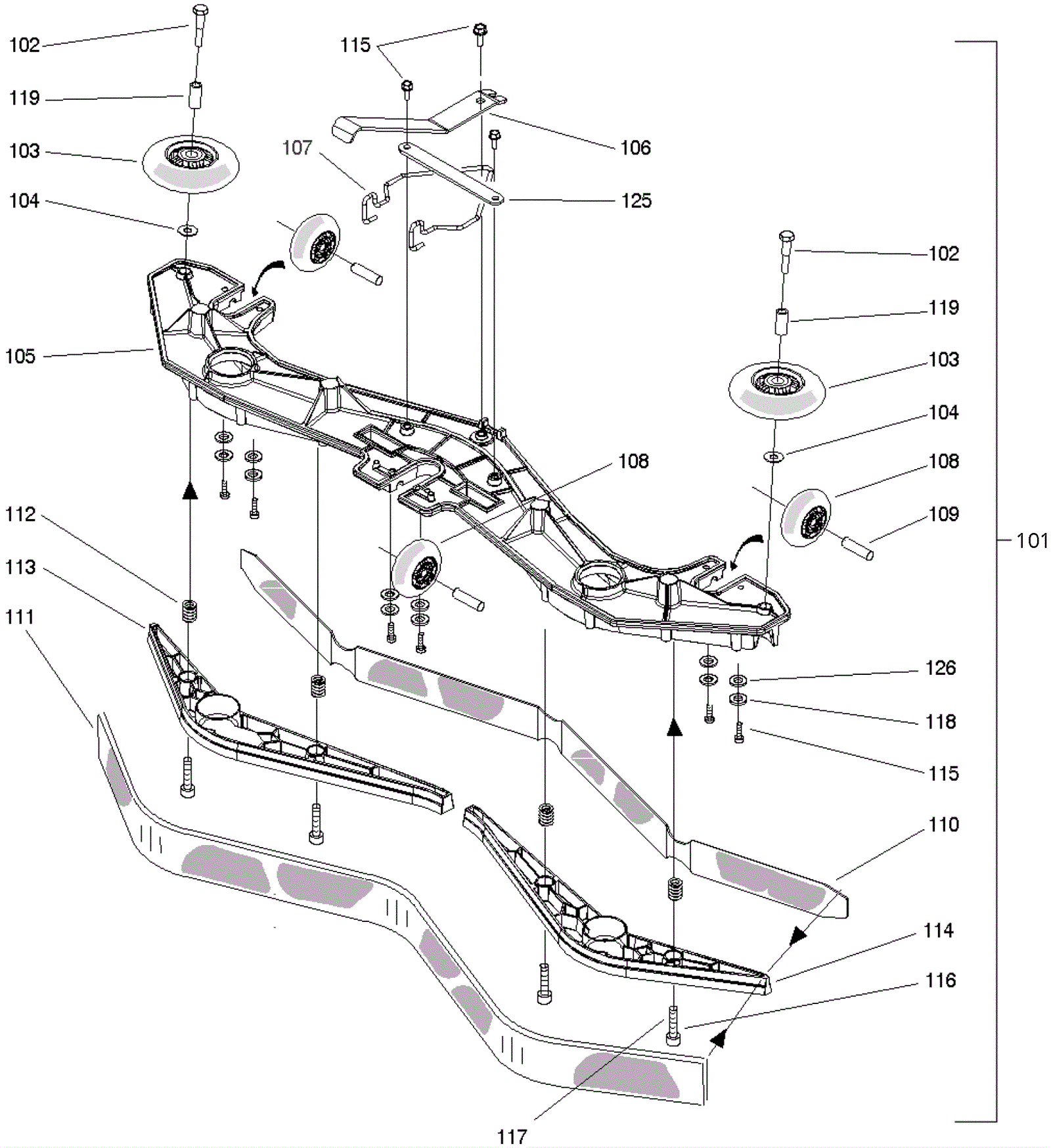

# | Part | Description | Price | Req | Notes | Availability |
101 |
192-9272
|
Squeegee assembly |
$629.75
|
1 |
(includes 102-126) |
ships same day |
102 |
192-9212
|
Screw M8 x 40/22mm hex |
$4.35
|
2 |
|
ships same day |
103 |
192-8744
|
Wheel |
$31.57
|
2 |
|
ships same day |
104 |
192-0105
|
Washer M8 |
$2.44
|
2 |
|
ships same day |
105 |
192-8745
|
Squeegee weldment |
$253.17
|
1 |
|
ships same day |
106 |
192-9213
|
Spring |
$29.06
|
1 |
|
ships same day |
107 |
192-9214
|
Click spring |
$56.99
|
1 |
|
ships same day |
108 |
192-8746
|
Wheel 2.5 x 1 inch |
$105.69
|
3 |
|
ships same day |
109a |
192-9215
|
Axle |
$19.00
|
3 |
|
ships same day |
109b |
292-8609
|
Bolt M8 x 10mm |
$7.57
|
3 |
(option) |
usually ships 10-39 days |
110a |
192-8747
|
Squeegee blade 39 inch front (clear) |
$97.66
|
1 |
|
ships same day |
110b |
192-9403
|
Squeegee blade 39 inch front |
$107.56
|
1 |
(option) |
usually ships 10-39 days |
110c |
192-9404
|
Squeegee blade 39 inch front |
$84.36
|
1 |
(option) |
ships same day |
110d |
292-0749
|
Squeegee blade 39 inch front |
$107.12
|
1 |
(option) |
usually ships 10-39 days |
111a |
192-9273
|
Squeegee blade 42 inch rear (clear) |
$109.89
|
1 |
|
ships same day |
111b |
292-9127
|
Squeegee blade 42 inch rear |
$35.25
|
1 |
(option) |
usually ships 10-39 days |
112 |
192-9216
|
Pressure spring |
$2.22
|
4 |
|
ships same day |
113 |
192-9274
|
Left hand squeegee blade retainer |
$137.88
|
1 |
|
ships same day |
114 |
192-9275
|
Right hand squeegee blade retainer |
$56.79
|
1 |
|
ships same day |
115 |
192-9360
|
Screw M6 x 16mm self tapping |
$2.66
|
9 |
|
ships same day |
116 |
192-9220
|
Screw M8 x 35 socket head cap |
$1.22
|
4 |
|
ships same day |
117 |
192-7444
|
Wear resistant spray fin super |
$166.92
|
1 |
|
usually ships 10-39 days |
118 |
192-0216
|
Washer |
$1.22
|
6 |
|
ships same day |
119 |
192-9803
|
Bushing |
$2.52
|
2 |
|
ships same day |
125 |
292-0126
|
Holder bar |
$6.73
|
1 |
|
ships same day |
126 |
292-0546
|
Washer |
$2.22
|
6 |
|
usually ships 10-39 days |
N/S |
991-1840
|
8mm allen wrench |
$7.32
|
1 |
|
usually ships 16-34 days |
