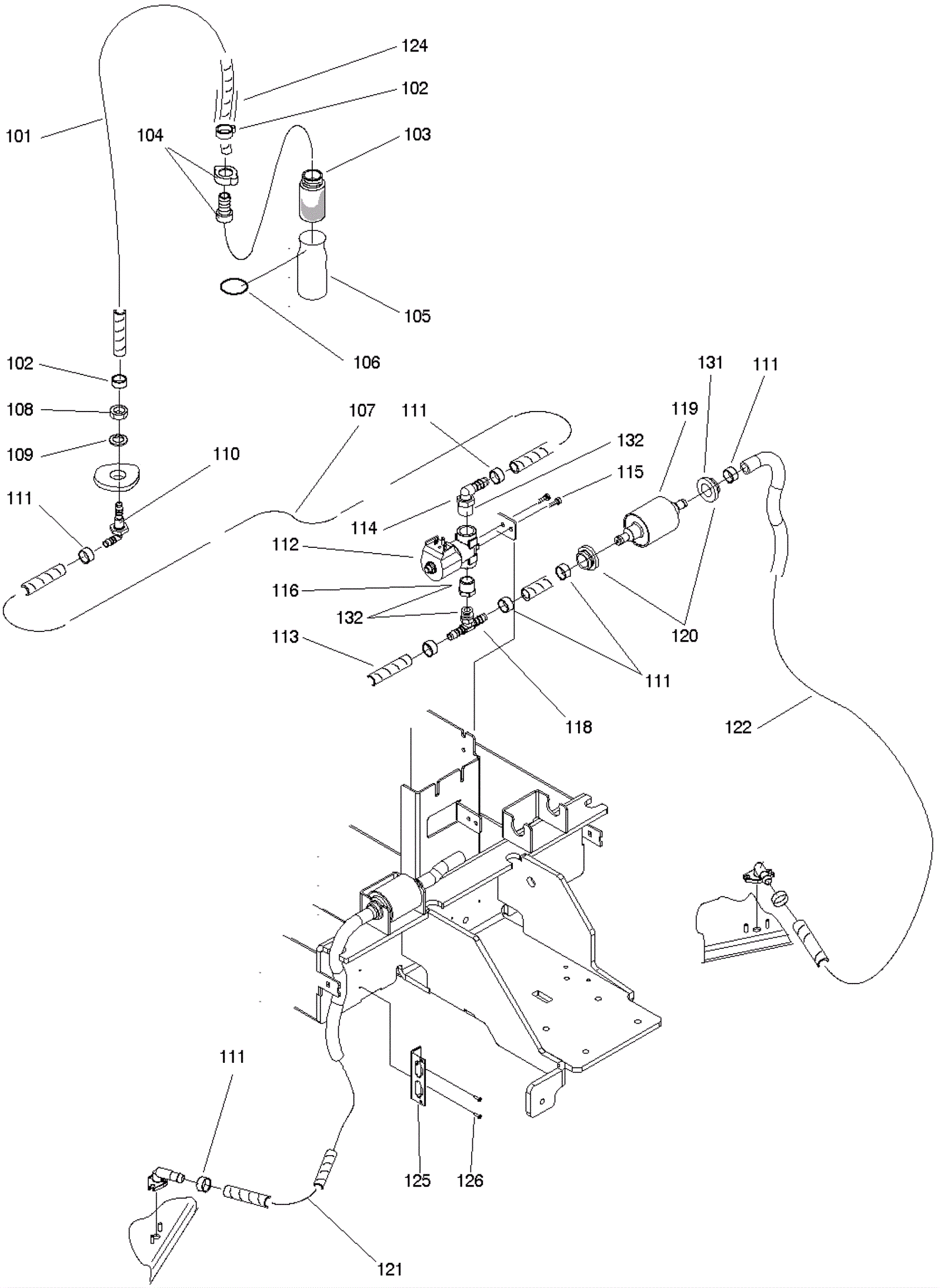

SWINGO XP Solution Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0400 Wire reinforced hose (sold by the inch) $0.99 63 in ships same day
102 192-9206 Hose clamp $2.62 2 ships same day
103 192-0992 Filter cage $9.47 1 ships same day
104 192-0990 Screwing socket $22.22 1 usually ships 10-39 days
105 192-0993 4 inch filter bag $19.61 1 ships same day
106 192-0991 O-ring $2.44 1 ships same day
107 192-9207 Hose with protection (sold by the inch) $22.22 73 in ships same day
108 192-4205 Nut M16 x 1-1/2 hex $2.22 1 ships same day
109 192-9208 Seal washer $2.51 1 ships same day
110 192-9209 Angled nipple $11.43 1 usually ships 10-39 days
111 192-9210 Hose clamp $2.44 10 ships same day
112 192-0396 24V magnetic valve $282.01 1 ships same day
113 192-4461 Tygon hose (sold by the inch) $1.46 7 in ships same day
114 192-9211 Angled hose nipple $7.40 1 ships same day
115 192-6485 Screw M5 x 8mm socket head cap $0.89 2 ships same day
116 192-5974 Reducing nipple 1/2 x 3/8 inch $12.96 1 ships same day
118 192-1138 T-pipe $6.06 1 usually ships 10-39 days
119 192-1474 Pump $178.15 2 ships same day
120 192-6161 Rubber bushing $3.11 4 ships same day
121a 192-0404 Wire reinforced hose (sold by the inch) $0.99 21 in (XP-M) ships same day
121b 192-0404 Wire reinforced hose (sold by the inch) $0.99 43 in (XP-R) ships same day
122a 192-0404 Wire reinforced hose (sold by the inch) $0.99 21 in (XP-M) ships same day
122b 192-0404 Wire reinforced hose (sold by the inch) $0.99 43 in (XP-R) ships same day
124 292-0384 Shrink tube (sold by the inch) $32.59 1 in usually ships 1-5 days
125 292-0383 Angle bracket $14.27 1 usually ships 1-5 days
126 192-0003 Screw M3 x 10mm raised head $1.13 2 ships same day
131 192-5471 Paste silicone 100 gr (OBSOLETE) $147.47 1 usually ships 10-39 days
132 192-0218 12mm teflon tape $4.38 1 ships same day
N/S 292-5581 Pipe (OBSOLETE) Call for price 46 in (IntelliDose) usually ships 1-5 days
N/S 292-0407 Chassis $1,037.94 1 usually ships 1-5 days
N/S 192-8805 Hose $14.99 8 in (XP-M) (2 8 inch sections required) ships same day
N/S 192-0260 2-way connection block $2.81 1 (XP-R) ships same day
N/S 192-0054 Screw M3 x 16mm raised cheese head $4.33 1 (XP-R) ships same day
