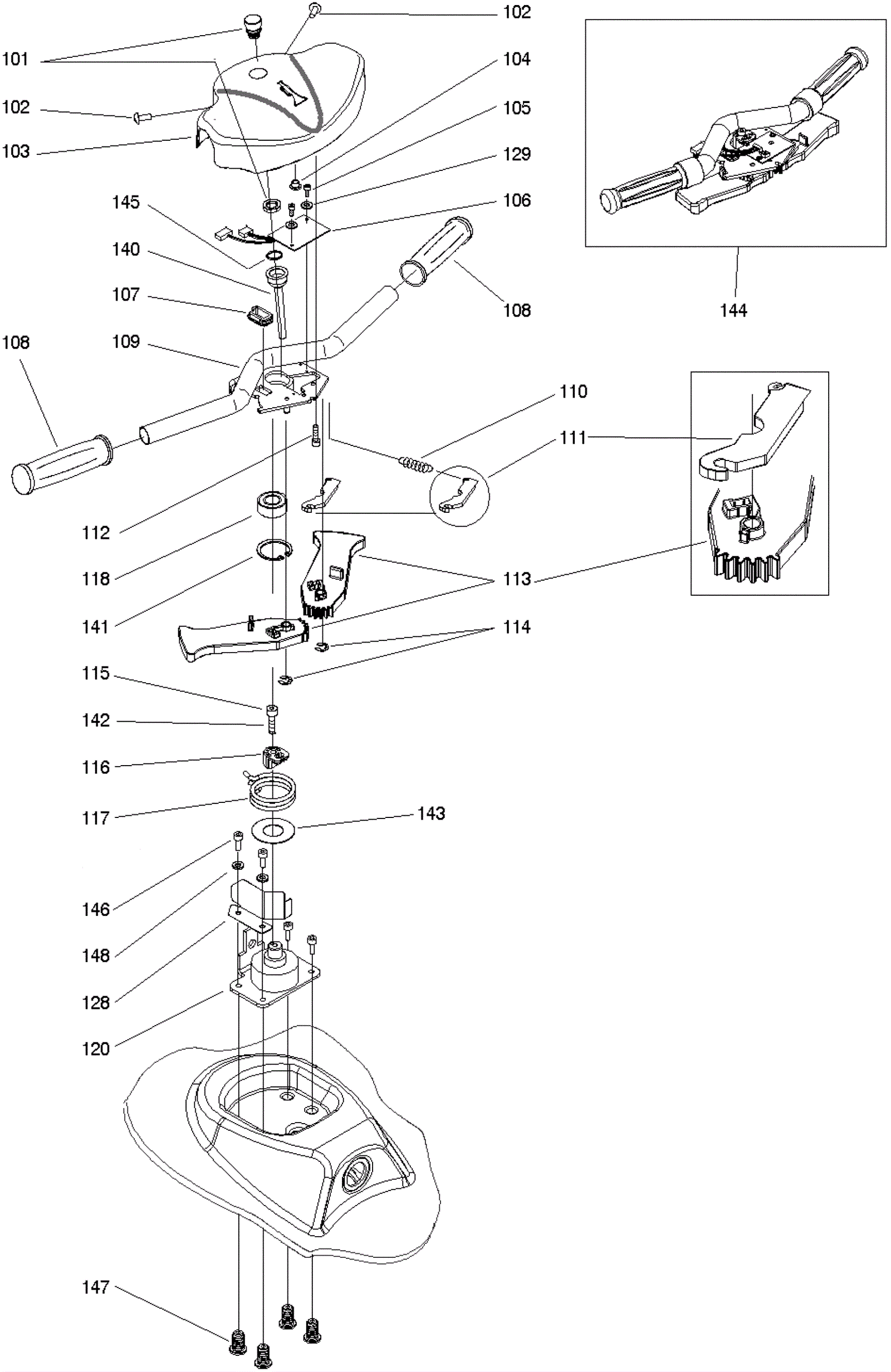

SWINGO XP Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-8729 Actuator stop button $160.44 1 ships same day
102 192-7179 Screw M6 x 16 truss head $4.35 2 usually ships 30-75 days
103 192-8755 Cover $30.04 1 usually ships 30-75 days
104 192-9141 Stopper $2.44 1 usually ships 30-75 days
105a 192-0013 Screw 3 x 5 raised head $4.59 2 (before 09.28.2009) usually ships 30-75 days
105b 192-0209 Screw M3 x 8 recessed countersunk head $2.44 2 (after 09.28.2009) ships same day
106 192-8751 Configured hall sensor board $260.03 1 ships same day
107 192-9142 Grommet $6.84 1 usually ships 30-75 days
108 192-8730 Handle grip (OBSOLETE) $6.06 2 usually ships 30-75 days
109 192-9143 Handle bar $126.69 1 usually ships 30-75 days
110 192-8731 Tension spring $2.44 1 ships same day
111 192-9144 Rocker $4.28 1 ships same day
112 192-1595 Screw M40 x 16mm torx head $2.44 1 ships same day
113 192-8732 Driving speed lever $33.89 2 usually ships 30-75 days
114 192-0840 Snap ring $2.44 2 ships same day
115 192-0066 Screw M6 x 25mm socket head cap $3.49 1 ships same day
116 192-9145 Magnetic guide bushing $28.57 1 usually ships 30-75 days
117 192-8733 Torsion spring $31.82 1 ships same day
118 192-9146 Ball bearing $19.36 1 usually ships 30-75 days
120 192-9148 Bracket $77.54 1 ships same day
128 292-0368 Cover $7.28 1 usually ships 30-75 days
129 192-0677 Washer M3 $2.44 2 usually ships 30-75 days
140 192-8769 Protection cap $14.05 1 usually ships 30-75 days
141 192-8770 Retaining ring $5.86 1 usually ships 1-5 days
142 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
143 292-0369 Washer $3.00 1 usually ships 30-75 days
144 292-0088 Steering assembly $470.99 1 (includes 105-111, 113-116, 118, 129, 141) usually ships 30-75 days
145 292-0370 Washer $7.45 1 usually ships 30-75 days
146 192-0007 Screw M6 x 16mm socket head cap $2.44 4 ships same day
147 292-0371 Bolt $23.76 4 usually ships 30-75 days
148 192-0216 Washer $1.22 2 ships same day
N/S 192-0102 7 3/4 inch cable tie $2.44 1 usually ships 30-75 days
