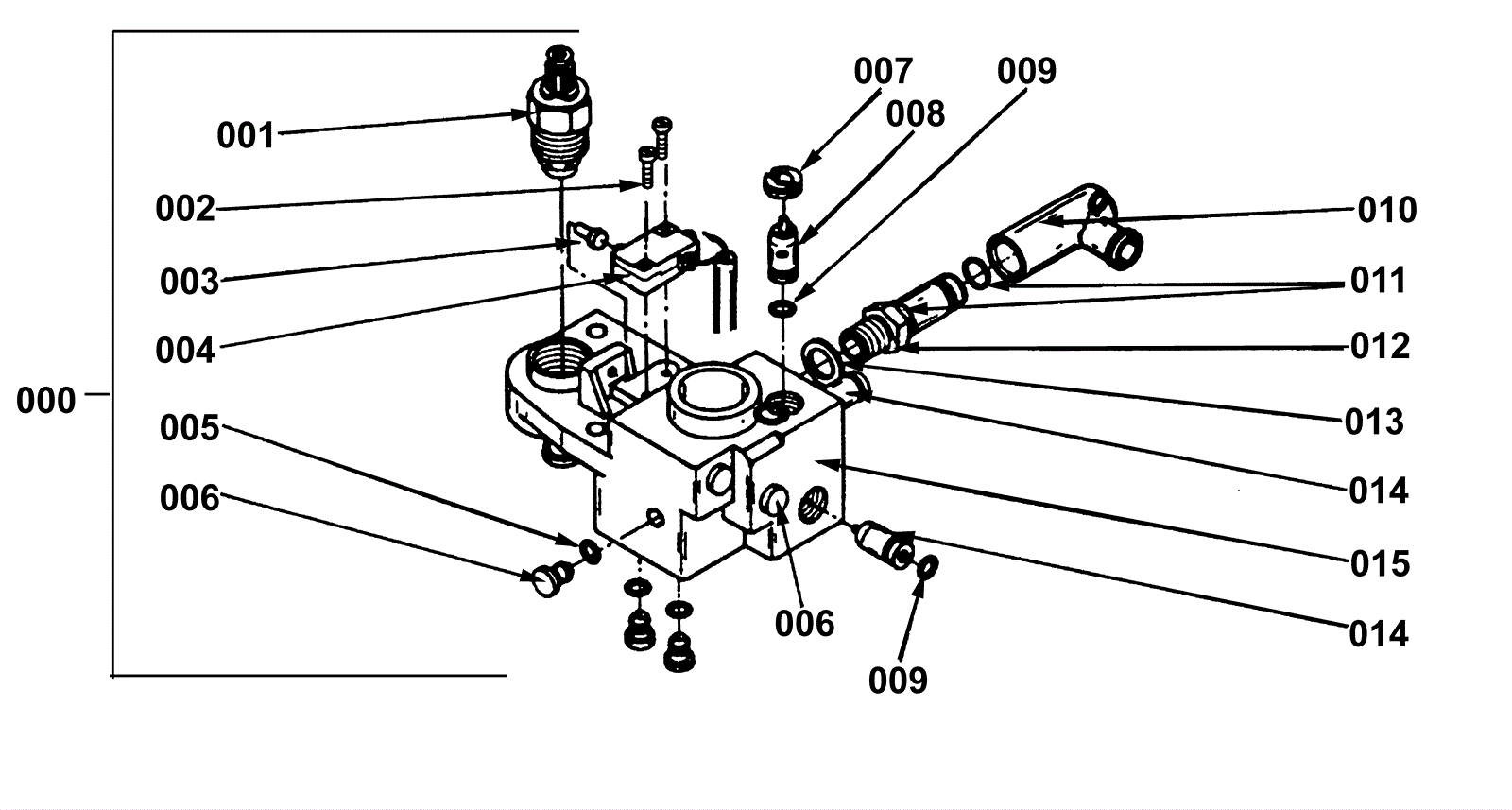

Valve Unit

#PartDescription ReqNotesAvailability
000 N/A Not available 1
000 192-7344 Valve unit FG1 assembly (OBSOLETE) 1
001 192-3799 Flow control valve 1
002 192-5292 Screw 9 x 16 notched self tapping 2
003 192-2935 Contact tappet (OBSOLETE) 1
004 192-5026 Microswitch 1
005 192-5368 O-ring 2 29/32 x 1 25/32 7
006 192-8577 Plug 5
007 192-4832 Locking nut 1
008 192-6247 Safety valve (stiff spring) 1
009 192-5394 O-ring 2
010 192-1678 Angle piece (OBSOLETE) 1
011 192-1603 O-ring 2
012 192-5163 Nipple (OBSOLETE) 1
013 192-3914 Gasket 1
014 192-6757 Stop valve (weak spring) 2
015 N/A Not available 1
051 192-4117 Brush hand (OBSOLETE) 1
053 192-4414 Hose nipple (OBSOLETE) 1
054 192-0204 Hose clamp 2
055 192-0203 Hose (sold by the inch) 2
056 192-4415 Hose nipple (OBSOLETE) 1
057 192-5907 Quick socket (OBSOLETE) 1
