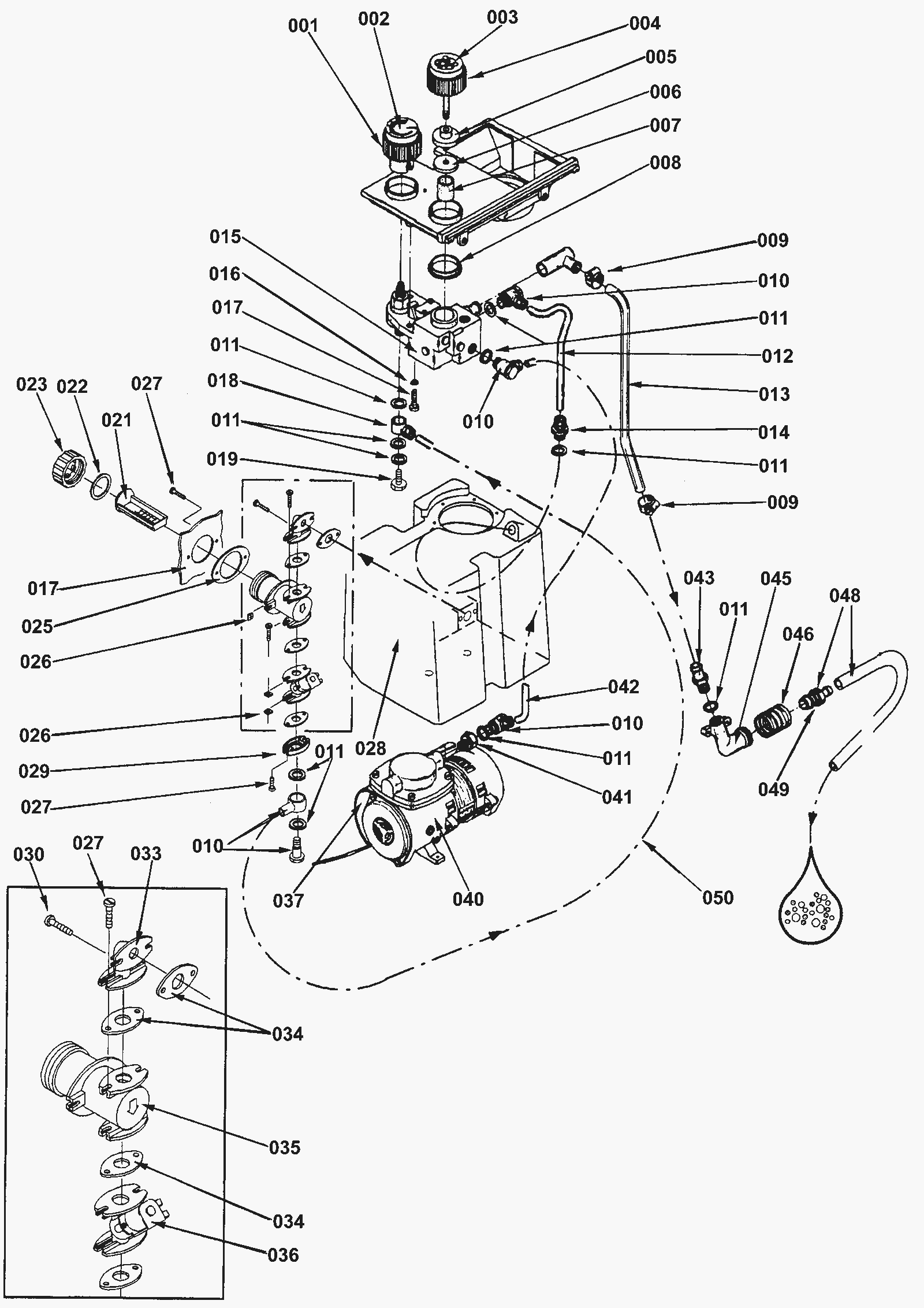

Main Assembly 2

#PartDescription ReqNotesAvailability
001 192-4901 Main control knob (OBSOLETE) 1
002 192-4714 Label with symbol (OBSOLETE) 1
003 192-4712 Label with symbol (OBSOLETE) 1
004 N/A Not available 1 (Knob)
005 192-6313 Sealing bushing (OBSOLETE) 1
006 192-8585 Knob gasket 1
007 192-1488 Sinter bushing 1
008 192-3912 Gasket 1
009 192-1230 Hose clamp 2
010 192-1680 1/4 inch angled socket 4
011 192-3914 Gasket 14
012 192-4427 Solution hose (clear) (sold by the inch) -
013 192-0399 Hose (clear) (sold by the inch) -
014 192-5000 1/4 inch male connector 1
015 N/A Not available 1
016 192-0382 Washer lock 2
017 192-0762 Screw 5mm-20 raised head 2
018 192-8586 Angled socket 1
019 192-5220 Screw nipple 1
020 192-1105 Screw M4 x 20mm socket head 6
021 292-0082 Filter kit 1
022 292-0082 Filter kit 1
023 292-0082 Filter kit 1
025 192-3925 Gasket 1
026 192-0915 Nut M4 square 8
027 192-0912 Screw M4 x 16mm raised head 8
028 192-7003 Tank (OBSOLETE) 1
029 192-3728 Flange 1
030 192-6286 Screw KA 40 x 18 2
033 192-1684 Angled flange 1
034 192-0914 Gasket 4
035 192-0910 Filter housing 1
036 292-5425 220V magnetic valve 1
037 192-4271 Hood (OBSOLETE) 1
040 N/A Not available 1 Compressor
041 192-5975 Reducing nipple 1/8-1/4 inch nickel plated 1
042 192-4427 Solution hose (clear) (sold by the inch) -
043 192-5520 Pipe socket (OBSOLETE) 1
045 192-3463 Elbow socket (OBSOLETE) 1
046 192-5907 Quick socket (OBSOLETE) 1
048a 192-0893 Hose (sold by the inch) 22 inch
048b 192-1204 Male quick connect 1
049 192-4413 Hose nipple (OBSOLETE) 1
050 192-4427 Solution hose (clear) (sold by the inch) -
N/S 192-0218 12mm teflon tape
