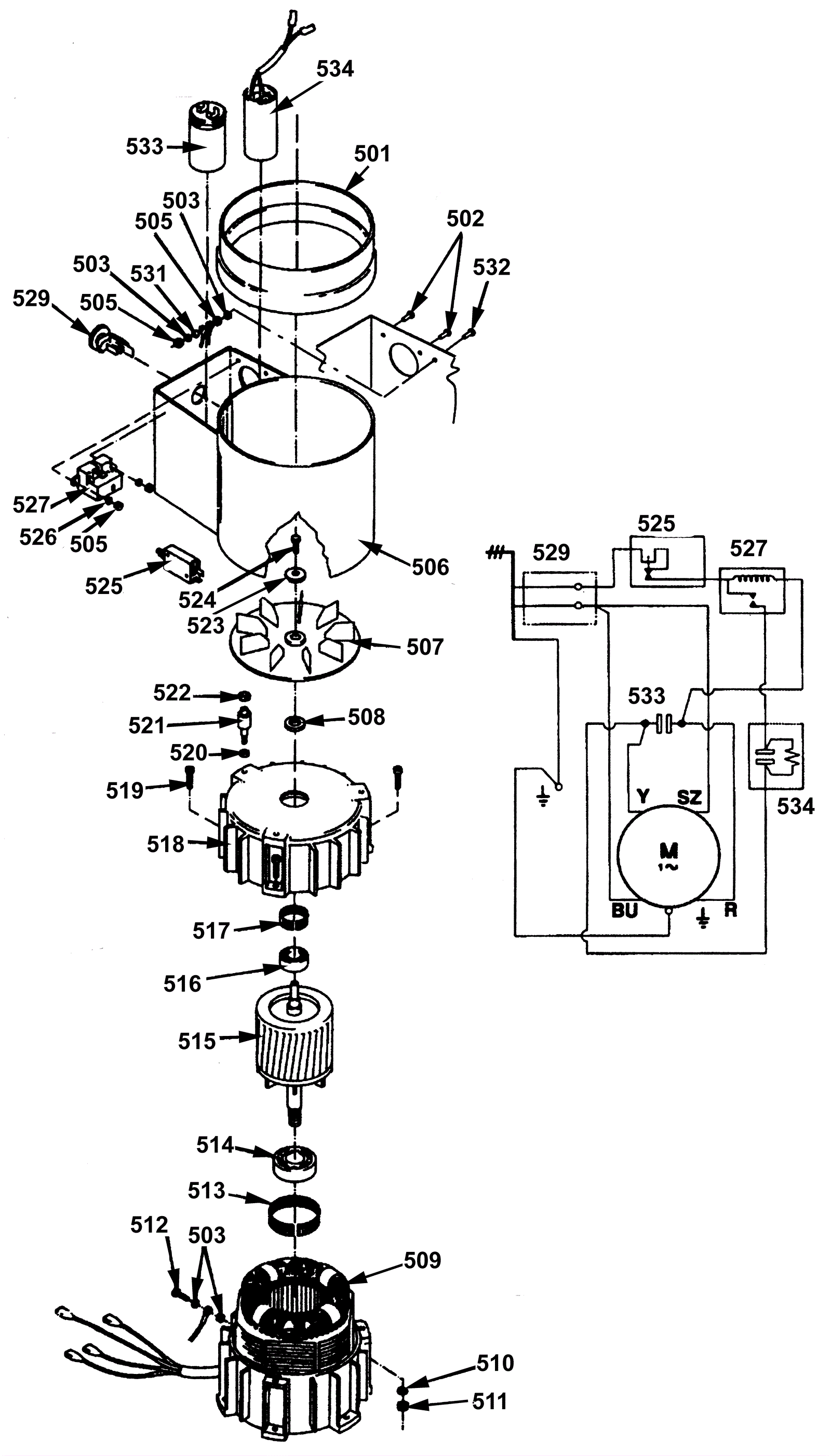

RANGER SUPERSON Motor Assembly

#PartDescriptionPriceReqNotesAvailability
501 192-6306 Seal strip (OBSOLETE) $39.50 1 usually ships 24-40 days
502 192-7624 Screw M4 x 10 $0.94 1 usually ships 1-5 days
503 999-0315 Washer #8 external star lock zinc plated $0.99 4 ships same day
505 192-0039 Nut M4 hex $4.10 2 usually ships 24-40 days
506 192-5100 Motor cowl (OBSOLETE) $249.77 1 usually ships 1-5 days
507 192-3563 Fan $50.13 1 ships same day
508 192-1050 Washer $3.62 1 usually ships 24-40 days
509 192-1737 Stator with housing assembly (OBSOLETE) $835.81 1 usually ships 1-5 days
510 192-1537 Washer M5 serrated lock $2.44 1 ships same day
511 192-6343 Nut M5 self locking $2.44 1 ships same day
512 192-0060 Screw M4 x 8 self tapping forming $2.44 1 usually ships 24-40 days
513 192-6678 Star ring (OBSOLETE) $4.47 1 usually ships 1-5 days
514 192-7619 Ball bearing $57.11 1 usually ships 1-5 days
515 192-6145 Rotor (OBSOLETE) $239.55 1 usually ships 1-5 days
516 192-1867 Ball bearing $3.74 1 usually ships 24-40 days
517 192-6677 Star ring (OBSOLETE) $5.21 1 usually ships 1-5 days
518 192-2681 Top motor case (OBSOLETE) $176.69 1 usually ships 1-5 days
519 192-6481 Screw M5 x 30 socket head cap $2.44 3 usually ships 1-5 days
520 192-0179 Washer M6 serrated lock $2.44 3 usually ships 24-40 days
521 192-3545 Plated extension stud (OBSOLETE) $25.30 3 usually ships 1-5 days
522 192-5158 Washer neoprene (OBSOLETE) $2.20 3 usually ships 1-5 days
523 192-0705 Washer $2.44 1 usually ships 24-40 days
524 192-7625 Screw M5 x12 hex $0.94 1 usually ships 1-5 days
525 192-0678 Circuit breaker $50.99 1 (Circuit breaker) ships same day
526 192-0281 Spring washer $2.44 2 usually ships 1-5 days
527a 192-6725 Start relay set (OBSOLETE) $99.47 1 usually ships 24-40 days
527b 192-1478 Relay set (OBSOLETE) $1,312.67 1 4 wire usually ships 1-5 days
529 N/A Not available Call for price 1 Cable entry usually ships 3-26 days
531 192-7416 Washer 4. 3/8 $2.44 1 usually ships 24-40 days
532 192-2767 Screw M4 x 14 cheese head (OBSOLETE) $2.20 1 usually ships 1-5 days
533 192-6213 Run capacitor (white) $9.89 1 usually ships 24-40 days
534 N/A Not available Call for price 1 Start capacitor usually ships 3-26 days
