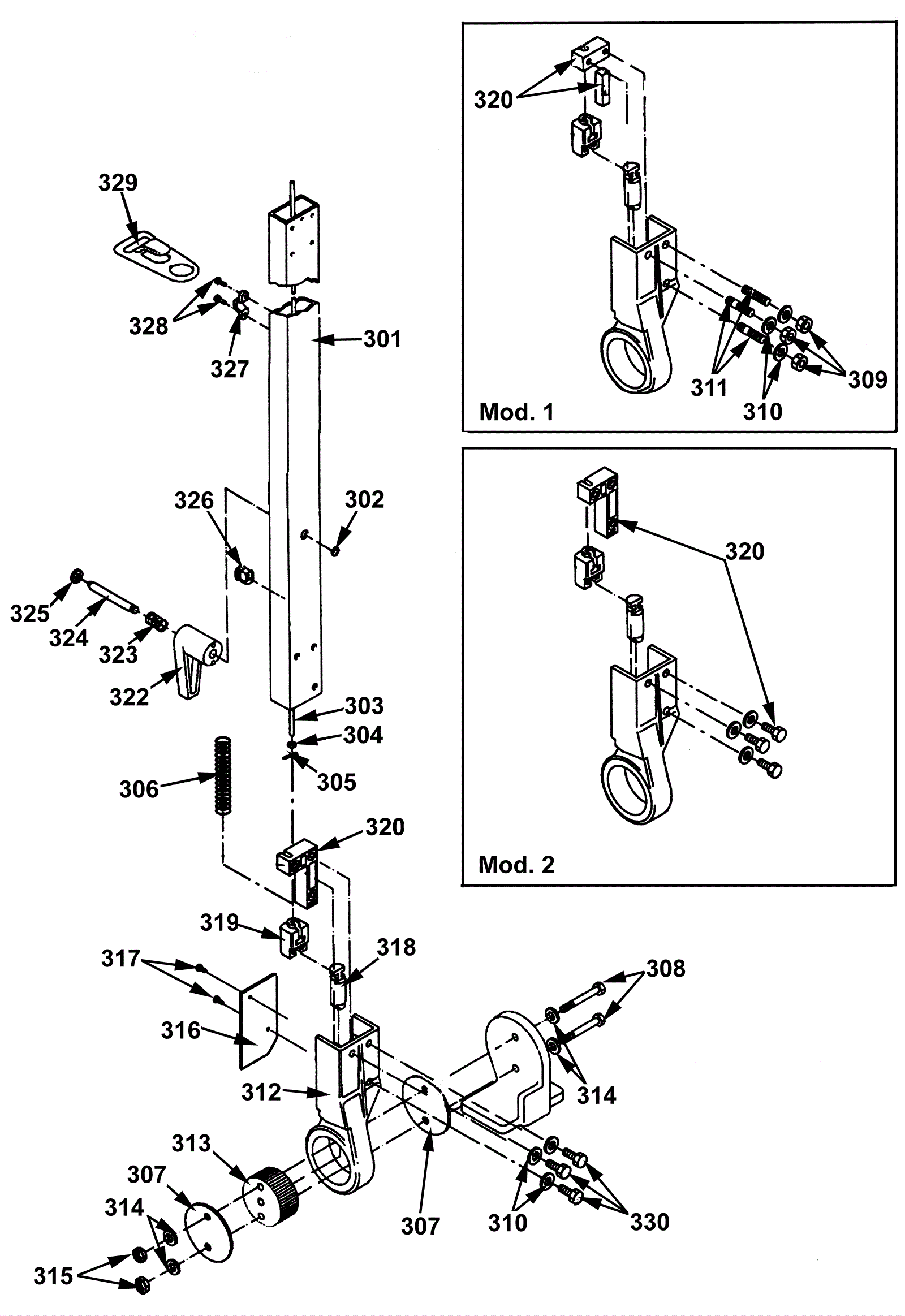

RANGER SUPERSON Handle Bottom Assembly

#PartDescriptionPriceReqNotesAvailability
301 N/A Not available Call for price 1 Guide bar usually ships 3-26 days
302 192-1348 Retaining ring $6.18 1 usually ships 30-75 days
303 N/A Not available Call for price 1 Plunger rod usually ships 3-26 days
304 192-0206 Washer M5 $1.80 1 ships same day
305 192-2968 Cotter pin (OBSOLETE) $2.20 1 usually ships 1-5 days
306 192-5669 Pressure spring (OBSOLETE) $2.20 1 usually ships 1-5 days
307 N/A Not available Call for price 2 Washer usually ships 3-26 days
308 192-0865 Screw M10 x 70 hex head $2.44 2 usually ships 30-75 days
309 192-6338 Nut 5/16 self locking (OBSOLETE) $2.20 3 usually ships 1-5 days
310 192-0105 Washer M8 $2.44 3 ships same day
311 192-6806 Stud 5/16 x 1 x 1/4 (OBSOLETE) $2.20 3 usually ships 1-5 days
312 192-4029 Gear housing (OBSOLETE) $158.52 1 usually ships 1-5 days
313 192-1479 Gear (OBSOLETE) $79.57 1 usually ships 1-5 days
314 192-0496 Washer M10 $2.44 4 ships same day
315 192-6339 Nut M10 self locking $2.44 2 ships same day
316 N/A Not available Call for price 1 Cover usually ships 3-26 days
317 192-5444 Screw 3 1/2 x 9 1/2 pan head self tapping $5.50 2 usually ships 1-5 days
318 N/A Not available Call for price 1 (Plunger) usually ships 3-26 days
319 N/A Not available Call for price 1 (Plunger retainer) usually ships 3-26 days
320 192-6024 Retainer set $27.72 1 usually ships 1-5 days
322 N/A Not available Call for price 1 Cleat usually ships 3-26 days
323 192-5670 Pressure spring (OBSOLETE) $2.20 1 usually ships 1-5 days
324 192-5491 Pin (OBSOLETE) $6.67 1 usually ships 1-5 days
325 192-6672 Cap $2.44 1 ships same day
326 192-2429 Strain relief bushing (OBSOLETE) $2.20 1 usually ships 30-75 days
327 192-2502 Cable clamp $2.44 1 usually ships 30-75 days
328 N/A Not available Call for price 2 Rivet usually ships 3-26 days
329 192-0569 Hook (OBSOLETE) $2.88 1 usually ships 30-75 days
330 192-0822 Screw M8 x 25 hex head $3.30 3 usually ships 30-75 days
