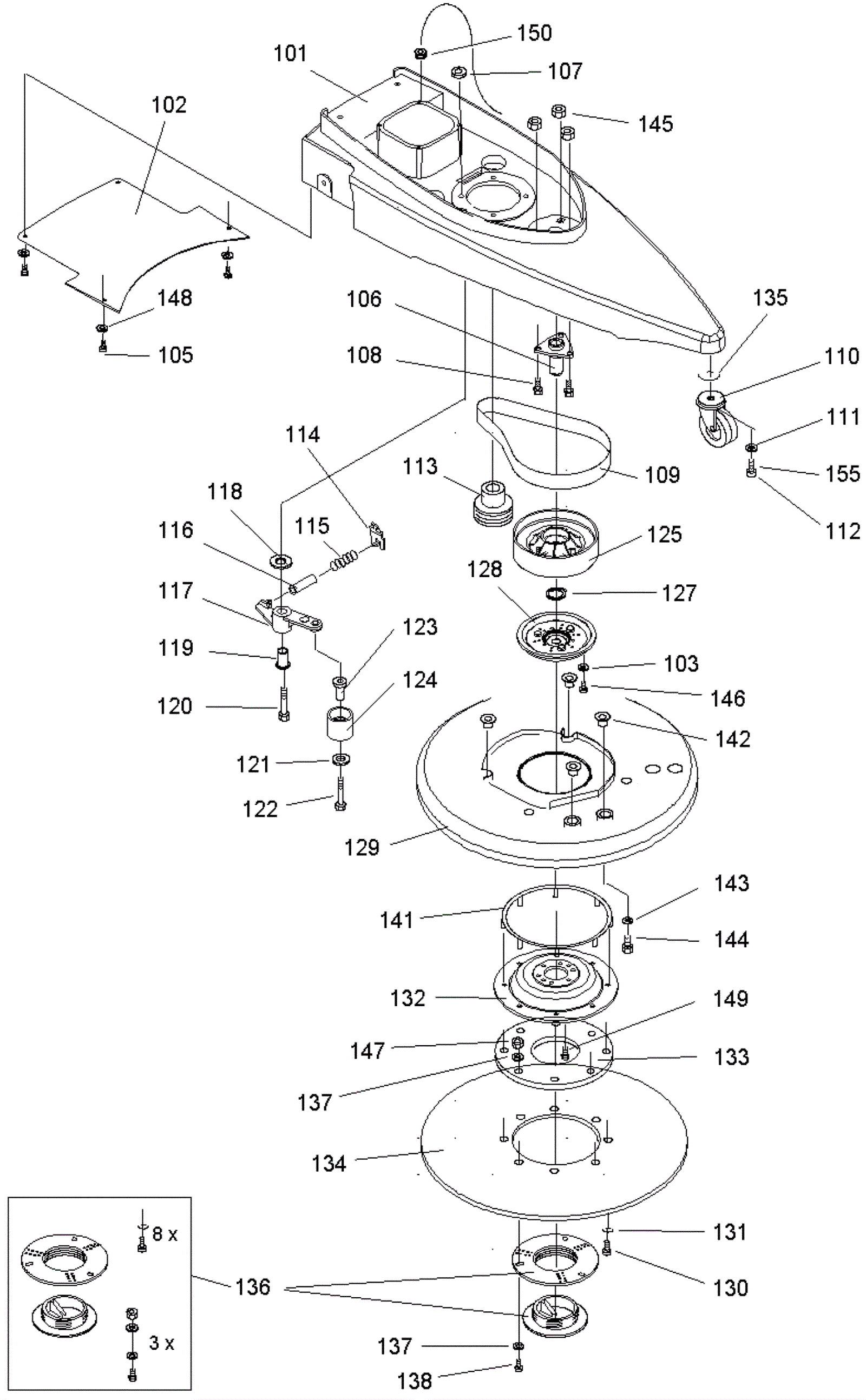

Lower Drive Assembly

#PartDescription ReqNotesAvailability
101 192-0578 Base casting 1
102 192-0588 Cover 1
103 192-0880 Washer M5 3
105 192-0101 Screw M5 x 12mm self tapping form 4
106 192-0590 Pulley axle 1
107 N/A Not available 1
108 192-0153 Screw M8 x 20mm hex head 3
109a 192-0591 Belt 1 (50hz)
109b 192-0592 Belt 1 (60hz)
110 192-0593 Dual caster - upgraded from single caster 1
111 192-0496 Washer M10 1
112 192-0594 Screw socket head cap 1
113a 192-0595 Pulley 1 (50hz)
113b 192-0595 Pulley 1 (60 hz)
114 292-0222 Support 1
115 192-0598 Pressure spring 1
116 192-0599 Hose (sold by the inch) 2 inches
117 192-0600 Belt stretcher 1
118 192-0601 Spacer disc 1
119 192-0602 Bushing 1
120 192-0603 Screw hex 1
121 192-0604 Washer M8 1
122 192-0605 Screw 8 x 45 hex 1
123 192-0606 Bushing 1
124 192-0607 Belt tensioner roller 1
125 192-0608 Pulley with bearings 1
127 192-0503 Retaining ring 1
128 192-0609 Intermediate ring 1
129 192-0610 Brush housing 1
130 192-0320 Screw 50 x 12 for plastic 8
131 192-0615 Washer 8
132 192-0616 Coupling bell 1
133 192-0617 Ring 1
134 192-0618 Flex drive 1
135 192-0619 Washer 1
136 192-1384 Pad holder with ring 1
137 192-1195 Washer M4 6
138 192-0326 Screw M4 x 16 raised head 3
141 192-0623 8 bolt ring 1
142 192-0624 Grommet 4
143 192-0216 Washer 4
144 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
145 192-0347 Nut M8 hex 3
146 192-0625 Screw 50 x 25 for plastic 3
147 192-0235 Nut M4 self locking 3
148 192-0971 Washer 4
149 192-0539 Screw 50 x 20 6
150 192-0627 Grommet 1
155 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
N/S 192-0613 Cap 2
N/S 192-0614 Dummy plate 2
