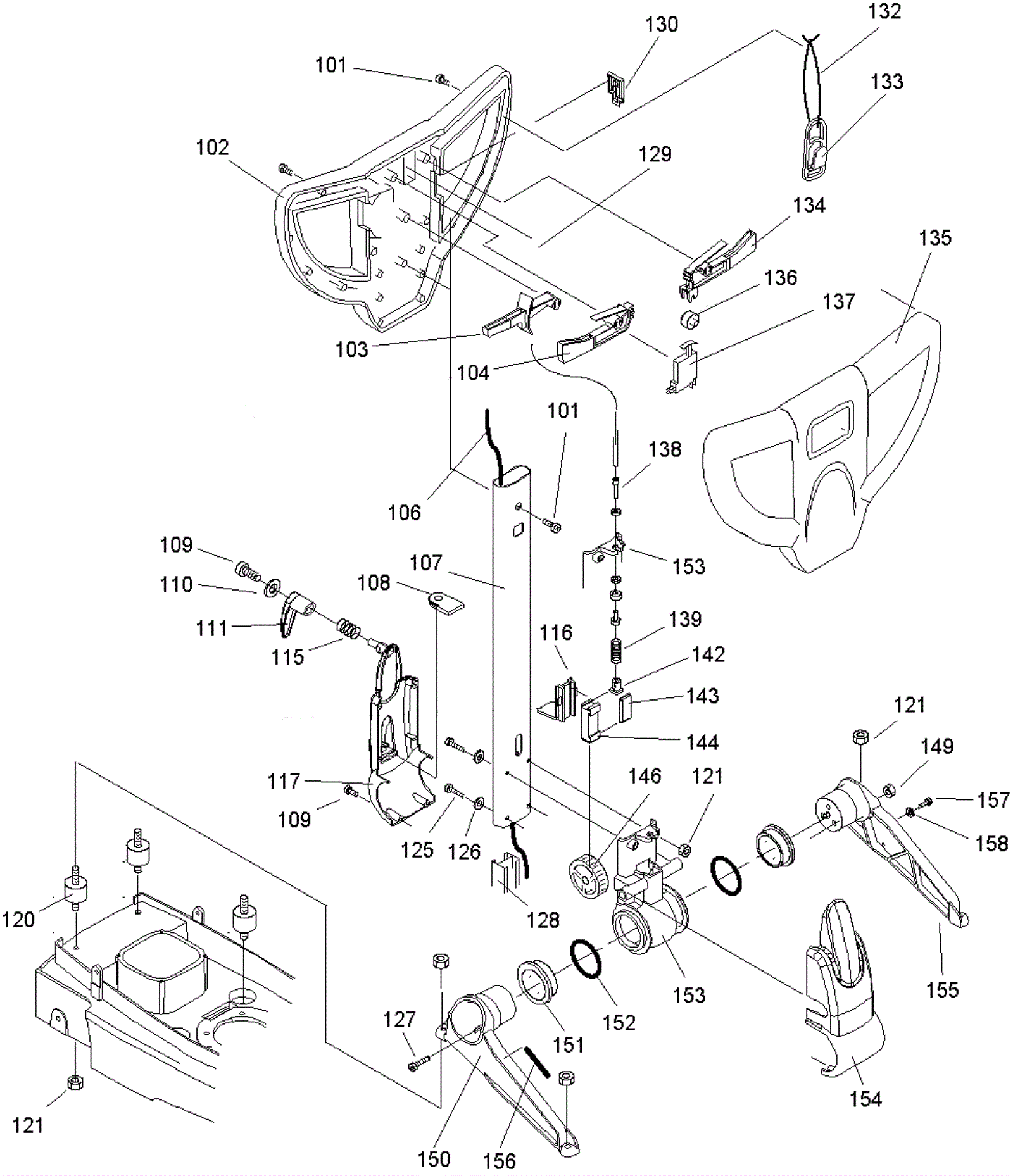

ERGODISC 1200 Guide Bar Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0539 Screw 50 x 20 $2.44 22 ships same day
102 192-0552 Rear handle $34.99 1 ships same day
103 192-0553 Disengaging lever $3.00 1 ships same day
104a 192-0554 Right hand switch lever with key $8.13 1 (includes 104b) usually ships 30-75 days
104b 192-0555 Push button $2.44 1 usually ships 30-75 days
106a 192-5086 Motor cable $34.63 1 (240V) usually ships 30-75 days
106b 192-0586 Interconnect cord $72.16 1 (120V) usually ships 30-75 days
107 192-0556 Guide bar $76.02 1 usually ships 30-75 days
108 192-0557 Cable bushing $3.42 1 usually ships 30-75 days
109 192-0547 Screw KA 40 x 14 $2.44 5 ships same day
110 192-0971 Washer $2.44 1 usually ships 30-75 days
111 192-0558 Cable hook $3.49 1 ships same day
115 192-5680 Pressure spring $6.23 1 ships same day
116 192-0560 Guide block $7.28 1 usually ships 30-75 days
117 192-0561 Handle joint cover $18.39 1 ships same day
120 192-0562 Buffer $17.09 4 ships same day
121 192-0563 Nut M6 self-locking $2.44 12 ships same day
125 192-7559 Screw M6 x 45/24 socket head $2.44 4 usually ships 30-75 days
126 192-0200 Washer M6 $3.12 8 ships same day
127 192-0082 Screw M8 x 40mm socket head cap $0.89 3 ships same day
128 192-0565 Handle profile $12.53 1 ships same day
129 192-0566 Ball $2.44 1 usually ships 30-75 days
130 192-0567 Cover $2.44 1 ships same day
132 192-0568 Retention loop $4.71 1 usually ships 30-75 days
133 192-0569 Hook (OBSOLETE) $2.88 1 usually ships 30-75 days
134 192-0570 Left hand switch lever with roller $7.77 1 ships same day
135 192-0571 Front handle $32.92 1 ships same day
136 192-0572 Roller $2.44 1 ships same day
137a 192-5795 12amp protective motor switch $2.44 1 ships same day
137b 192-0587 16amp protective motor switch $49.04 1 usually ships 30-75 days
138 192-0573 Cable $19.49 1 ships same day
139 192-0574 Pressure spring $2.44 1 ships same day
142 192-0575 Bolt $3.42 1 ships same day
143 192-0576 Sliding block $3.06 1 usually ships 30-75 days
144 192-0577 Locking bolt with teeth $25.10 1 ships same day
146 192-0579 Gear $24.30 1 usually ships 30-75 days
149 192-0510 Nut M8 self locking $2.44 3 ships same day
150 192-0580 Right hand bracket $22.30 1 usually ships 30-75 days
151 192-0581 Bushing $3.30 2 usually ships 30-75 days
152 192-0582 O-ring $4.03 2 usually ships 30-75 days
153 192-0583 Handle joint $38.47 1 usually ships 30-75 days
154 192-2600 Cap $18.88 1 usually ships 30-75 days
155 192-0585 Left hand bracket $22.30 1 ships same day
156 192-2351 Bumper (sold by the inch) $3.29 2 inches ships same day
157 192-0101 Screw M5 x 12mm self tapping form $2.44 1 ships same day
158 192-1537 Washer M5 serrated lock $2.44 1 ships same day
