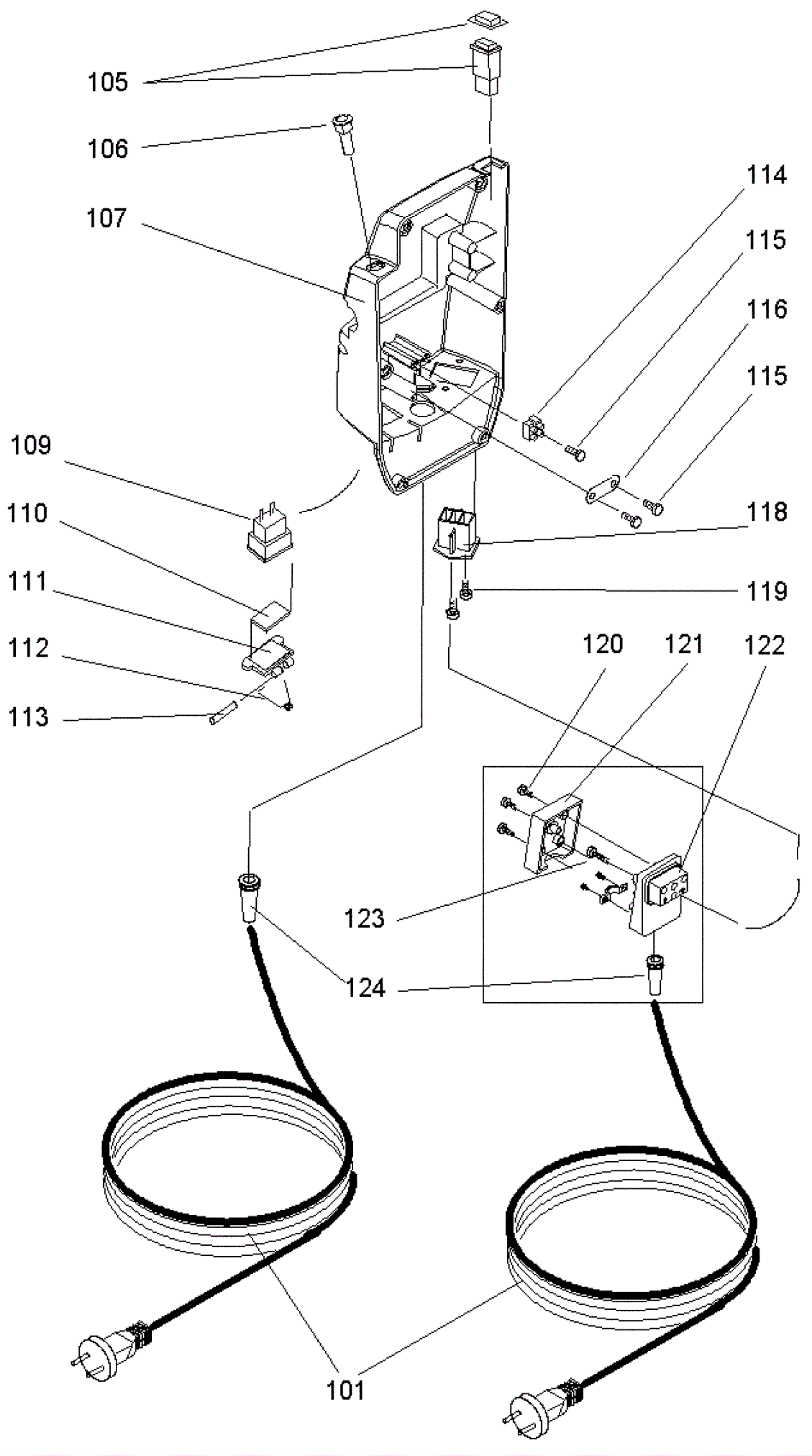

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
192-0932
|
14/3 120V main cord |
1 |
|
|
105 |
192-0541
|
Switch |
1 |
|
|
106 |
192-0936
|
Signal lamp |
1 |
|
|
107 |
192-0937
|
Cable cover |
1 |
|
|
109 |
192-0542
|
Socket |
1 |
|
|
110 |
192-0543
|
Gasket |
1 |
|
|
111 |
192-0544
|
Flap |
1 |
|
|
112 |
192-0545
|
Tension spring |
1 |
|
|
113 |
192-0546
|
Pin 2 x 36 |
1 |
|
|
114 |
192-0954
|
3 way connection block |
1 |
|
|
115 |
192-0452
|
Screw for plastic KA 30 x 16mm |
3 |
|
|
116 |
192-2496
|
Cable clamp |
1 |
|
|
118 |
192-0938
|
Socket plug |
1 |
|
|
119 |
192-0547
|
Screw KA 40 x 14 |
2 |
|
|
120 |
192-0548
|
Screw KA 35 x 10 |
4 |
|
|
121 |
192-0939
|
Plug cover |
1 |
|
|
122 |
192-0940
|
Right angle plug |
1 |
|
|
123 |
192-0549
|
Screw KA 35 x 20 |
1 |
|
|
124 |
192-0550
|
Strain relief |
1 |
|
|
N/S |
192-0551
|
Decal |
1 |
|
|
