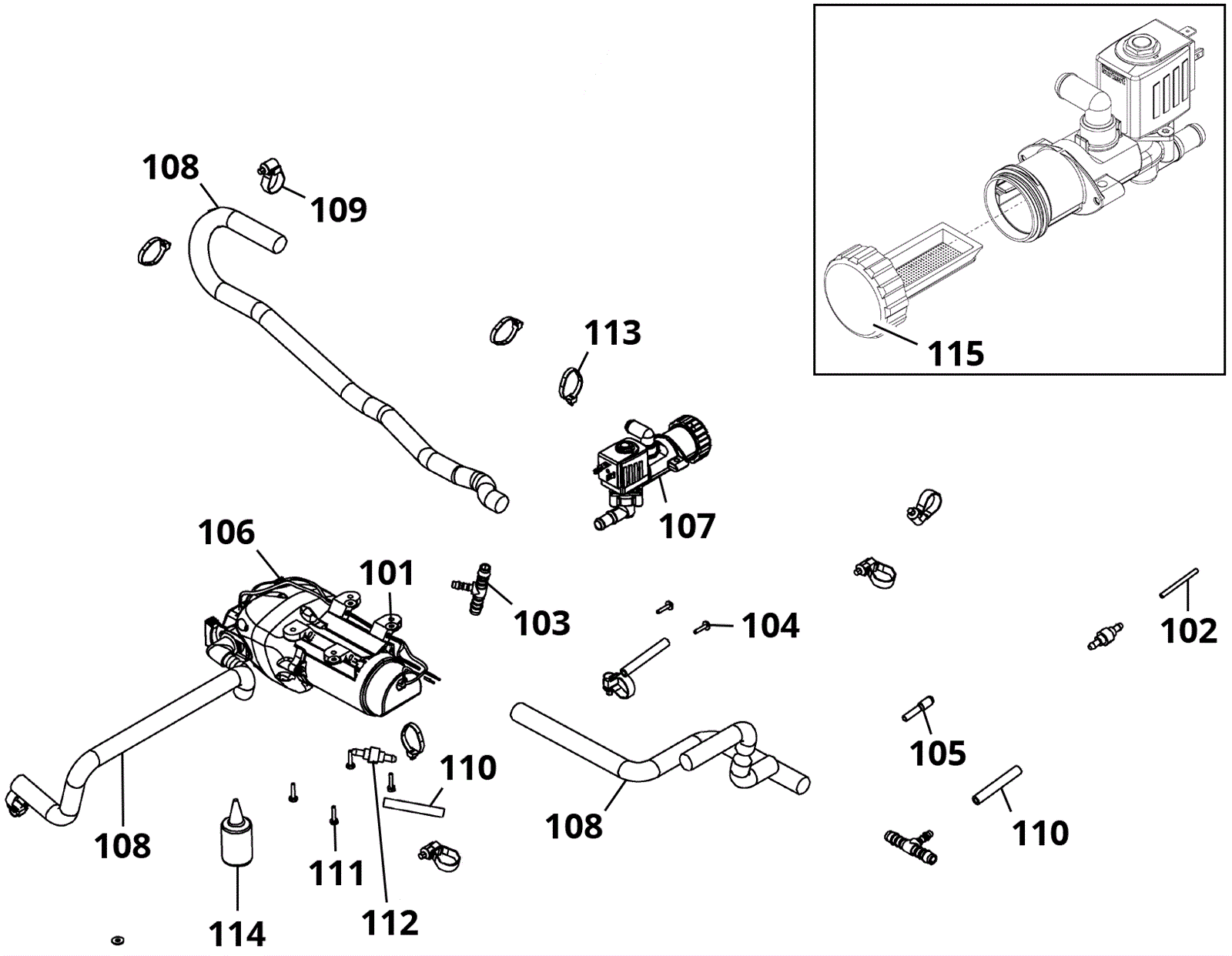

SWINGO 1850 Solution Assembly - After V5

#PartDescriptionPriceReqNotesAvailability
101 192-0325 Washer $2.44 4 usually ships 30-75 days
102 292-5581 Pipe (OBSOLETE) Call for price 28 in usually ships 1-5 days
103 192-0894 T-nipple $5.01 2 ships same day
104 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
105 192-9824 Connector $15.53 1 usually ships 30-75 days
106 292-9269 24V pump $290.20 1 usually ships 30-75 days
107 192-9276 Solenoid and filter assembly $296.90 1 (includes 115) ships same day
108a 192-0400 Wire reinforced hose (sold by the inch) $0.99 12 in ships same day
108b 192-0400 Wire reinforced hose (sold by the inch) $0.99 13 in ships same day
108c 192-0400 Wire reinforced hose (sold by the inch) $0.99 3 in ships same day
108d 192-0400 Wire reinforced hose (sold by the inch) $0.99 27 in ships same day
109 192-0334 Hose clamp $3.26 7 usually ships 12-29 days
110a 192-5331 Nut M6 $10.13 2 in usually ships 1-5 days
110b 192-4344 Hose (sold by the inch) $3.74 36 in usually ships 30-75 days
110c 192-4344 Hose (sold by the inch) $3.74 55 in usually ships 30-75 days
111 192-0920 Screw M4 x 16 hex $2.44 4 usually ships 30-75 days
112 192-1601 Check valve $27.42 2 ships same day
113 192-0102 7 3/4 inch cable tie $2.44 11 usually ships 30-75 days
114 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
115 192-9276 Solenoid and filter assembly $296.90 1 ships same day
