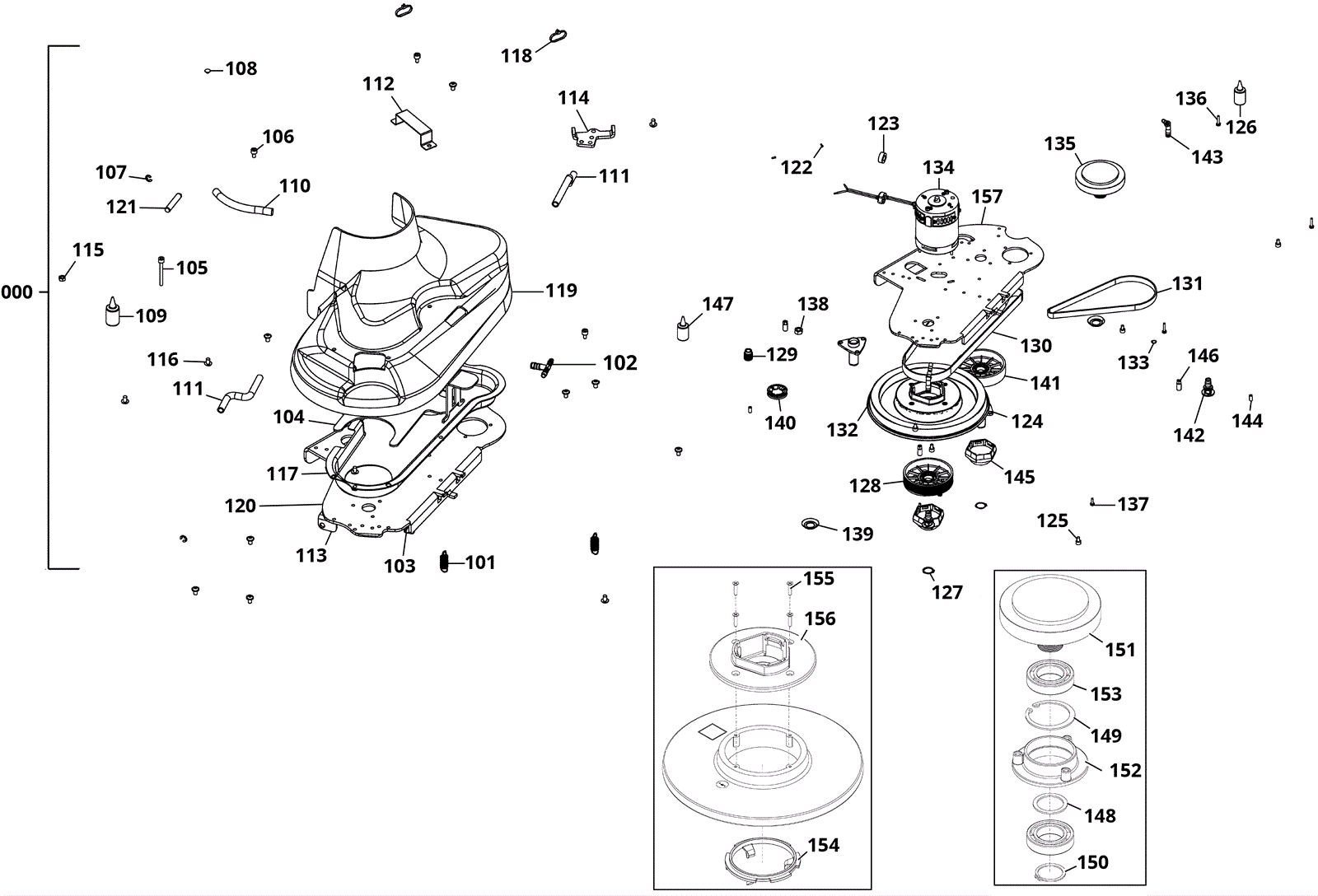

SWINGO 1850 Scrub Deck Assembly - After V5 - 4135541

#PartDescriptionPriceReqNotesAvailability
000 292-1041 Brush drive assembly Call for price 1 (includes101-121) usually ships 30-75 days
101 192-9265 Tension spring $2.44 2 usually ships 30-75 days
102 292-9314 T-nipple $5.98 1 ships same day
103 292-1042 Support Call for price 1 usually ships 30-75 days
104 192-9264 Decoupling bow $72.12 1 usually ships 30-75 days
105 192-9262 Screw M8 x 65mm socket head $2.44 1 usually ships 30-75 days
106 192-0364 Screw M8 x 12mm socket head $2.52 3 usually ships 30-75 days
107 192-0086 Snap ring $2.44 2 ships same day
108 192-9259 Cap $2.44 1 usually ships 30-75 days
109 192-1872 Grease $11.99 3 ships same day
110 192-0400 Wire reinforced hose (sold by the inch) $0.99 11 in ships same day
111a 192-0404 Wire reinforced hose (sold by the inch) $0.99 7 in ships same day
111b 192-0404 Wire reinforced hose (sold by the inch) $0.99 7 in ships same day
112 192-9396 Bracket $8.43 1 ships same day
113 192-9269 Bracket $11.47 1 usually ships 30-75 days
114 192-2826 Clamp $18.39 1 ships same day
115 192-0347 Nut M8 hex $0.89 1 ships same day
116 192-0348 Screw M8 x 12mm truss head $2.44 14 ships same day
117 192-9266 Base plate cover $18.39 1 ships same day
118 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
119 292-0345 Brush housing $278.71 1 ships same day
120 192-9260 Bracket $252.63 1 ships same day
121 192-9270 Axle $13.31 1 ships same day
122 192-7525 Wire sleeve $5.57 2 ships same day
123 192-0712 Coil with toric core $6.79 1 usually ships 30-75 days
124 192-0590 Pulley axle $12.69 2 ships same day
125 192-0364 Screw M8 x 12mm socket head $2.52 6 usually ships 30-75 days
126 192-5471 Paste silicone 100 gr (OBSOLETE) $162.22 1 usually ships 30-75 days
127 192-0503 Retaining ring $2.44 2 ships same day
128 292-0137 Pulley $43.78 1 ships same day
129 192-9388 Pulley $8.99 1 ships same day
130 192-9261 Poly v belt $62.34 1 ships same day
131 192-9258 Poly v belt $30.77 1 usually ships 30-75 days
132 192-9434 13 inch pad driver $136.65 2 (includes 154-156) ships same day
133 192-5358 O-ring $5.81 1 usually ships 30-75 days
134 192-5078 24V brush motor with noise suppression $474.97 1 ships same day
135 292-0068 Pulley kit (includes bearings and clips) $183.15 1 (includes 148-153) usually ships 30-75 days
136 192-1285 Screw M6 x 25mm hex head $2.44 3 ships same day
137 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
138 192-0800 Nut M12 left hand thread hex $4.40 1 ships same day
139 192-6320 Sealing ring $2.44 2 ships same day
140 192-6321 Sealing ring $3.74 2 ships same day
141 192-5814 Pulley with bearings (bearings not available separate) $31.50 1 ships same day
142 192-2728 Flanged bushing $5.37 2 ships same day
143 192-9395 Hose nipple $2.44 2 ships same day
144 292-1043 Bushing Call for price 1 usually ships 30-75 days
145 192-3032 Drive hub $15.99 2 ships same day
146 192-8633 Stud $7.45 3 ships same day
147 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
148 192-0482 Spacer $2.44 1 ships same day
149 192-0483 Retaining ring $2.44 1 ships same day
150 192-0485 Retaining ring $5.08 1 usually ships 30-75 days
151 192-4607 Intermediate pulley $45.18 1 ships same day
152 192-0484 Flanged bearing $74.26 1 usually ships 30-75 days
153 192-0481 Ball bearing $10.21 2 ships same day
154 292-8682 Ring (yellow) $4.84 1 ships same day
155 192-0445 Screw M5 x 25mm pan head tap $2.44 4 usually ships 30-75 days
156 192-3013 Brush coupling $13.19 1 ships same day
157 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
N/S 192-4543 Axle idler kit $48.30 1 ships same day
