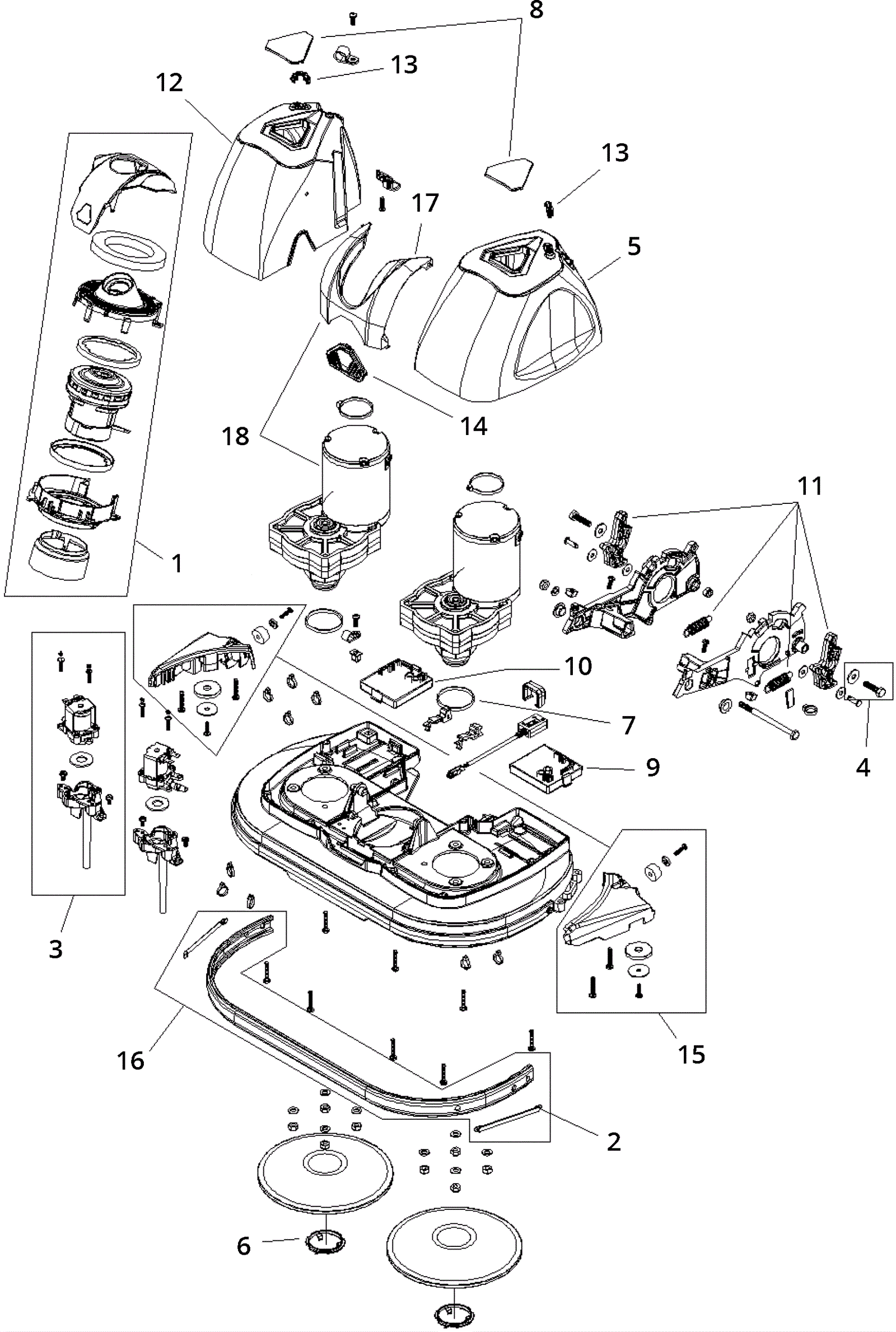

SWINGO 250 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 392-0005 Vacuum motor set $301.19 1 ships same day
2 392-0001 Trim glide $21.68 2 usually ships 24-40 days
3 392-0006 Solenoid set $110.57 1 usually ships 24-40 days
4 192-9025 Screw and washer set Call for price 2 usually ships 24-40 days
5 392-0003 Right hand motor cover $139.32 1 usually ships 24-40 days
6 292-0885 Pad holder $143.79 2 usually ships 24-40 days
7 292-0886 Snap ring $80.47 1 usually ships 24-40 days
8 292-0882 Motor vent cover set $118.07 1 usually ships 24-40 days
9 292-0879 Right hand motor controller $583.02 1 ships same day
10 292-0880 Left hand motor controller $583.02 1 usually ships 24-40 days
11 292-0884 Lowering unit $234.43 1 usually ships 24-40 days
12 392-0002 Left hand motor cover $139.27 1 usually ships 24-40 days
13 292-0881 Hose clamp $118.07 1 usually ships 24-40 days
14 292-0878 Grill $25.20 1 usually ships 24-40 days
15 392-0007 Deck wing set $101.95 1 ships same day
16 392-0008 Deck buffer set $115.29 1 (includes 2) usually ships 24-40 days
17 292-0883 Center cover $87.77 1 usually ships 24-40 days
18 392-0004 Brush motor set $1,208.79 2 usually ships 24-40 days
