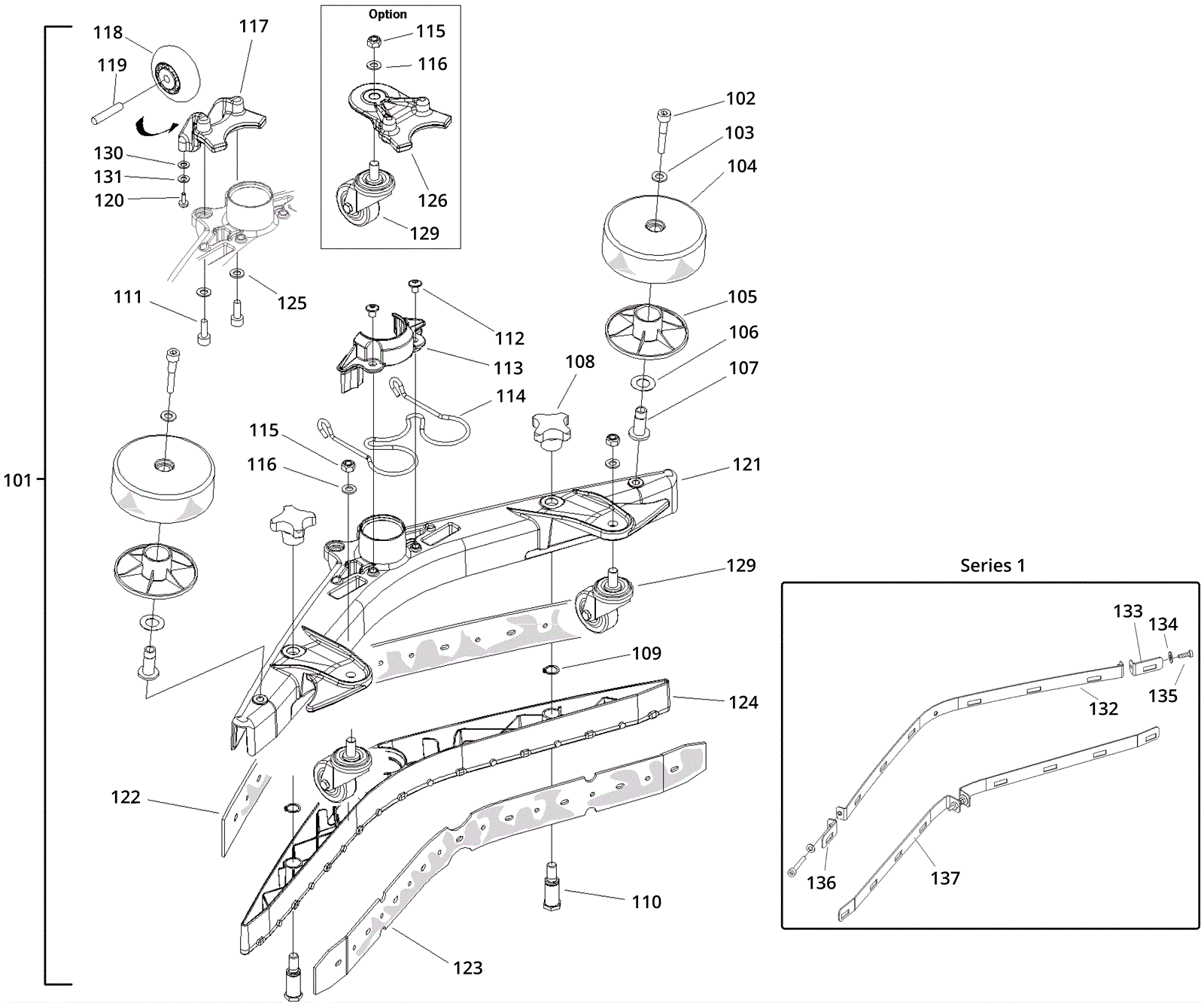

| # | Part | Description | Price | Req | Notes | Availability |
|---|
101 |
192-3898
|
Squeegee assembly |
$536.31
|
1 |
(includes 102-131) |
ships same day |
102 |
192-0104
|
Screw M8 x 45mm socket head cap |
$2.56
|
2 |
|
ships same day |
103 |
192-0105
|
Washer M8 |
$2.56
|
2 |
|
ships same day |
104 |
192-1397
|
Guide wheel |
$5.51
|
2 |
|
ships same day |
105 |
192-0108
|
Retaining disc |
$4.95
|
2 |
|
ships same day |
106 |
192-1344
|
Wave washer |
$6.74
|
2 |
|
ships same day |
107 |
192-1354
|
Bushing |
$8.34
|
2 |
|
ships same day |
108 |
292-0004
|
Star knob |
$4.43
|
2 |
(series 2) |
ships same day |
109 |
192-0075
|
Retaining ring |
$6.11
|
2 |
(series 2) |
ships same day |
110 |
292-0005
|
Screw M10 hex head |
$24.70
|
2 |
(series 2) |
ships same day |
111 |
192-0036
|
Screw M8 x 20mm socket head |
$2.56
|
2 |
(series 2) |
ships same day |
112 |
192-1524
|
Screw M8 x 20mm flange socket head |
$2.56
|
2 |
|
ships same day |
113 |
192-9515
|
Cover |
$8.03
|
1 |
|
ships same day |
114 |
192-9516
|
Click spring |
$18.80
|
1 |
|
ships same day |
115 |
192-6339
|
Nut M10 self locking |
$2.56
|
2 |
|
ships same day |
116 |
192-0496
|
Washer M10 |
$2.56
|
2 |
|
ships same day |
117 |
292-5366
|
Adapter |
$25.89
|
1 |
|
ships same day |
118 |
192-8746
|
Wheel 2.5 x 1 inch |
$12.89
|
1 |
|
ships same day |
119a |
192-9215
|
Axle |
$19.95
|
1 |
|
ships same day |
119b |
292-8609
|
Bolt M8 x 10mm |
$7.95
|
1 |
(option) (series 2) |
usually ships 24-40 days |
120 |
192-0101
|
Screw M5 x 12mm self tapping form |
$2.56
|
2 |
|
ships same day |
121 |
292-5367
|
Upper squeegee body |
$165.39
|
1 |
|
ships same day |
122a |
192-1487
|
Squeegee blade 29-1/2 inch urethane rear |
$53.92
|
1 |
|
ships same day |
122b |
292-0920
|
Squeegee blade |
$23.28
|
1 |
(option) (series 2) |
ships same day |
123a |
192-1486
|
Squeegee blade 28 inch urethane front |
$47.70
|
1 |
|
ships same day |
123b |
192-9522
|
Squeegee blade 27 inch urethane (closed front blade) |
$116.74
|
1 |
(option) (closed front blade) (for use with tiled and rubber floors) |
ships same day |
123c |
292-8610
|
Squeegee blade 27 inch front |
$109.75
|
1 |
(option) (series 2) |
ships same day |
124 |
292-5368
|
Lower squeegee body |
$25.12
|
1 |
(series 2) |
ships same day |
125 |
192-0105
|
Washer M8 |
$2.56
|
2 |
(series 2) |
ships same day |
126 |
192-3899
|
Adapter |
$31.03
|
1 |
(series 2) |
ships same day |
129 |
192-9520
|
Caster wheel |
$17.05
|
2 |
|
ships same day |
130 |
292-8611
|
Washer |
$2.56
|
2 |
(series 2) |
ships same day |
131 |
192-0971
|
Washer |
$2.56
|
2 |
(series 2) |
ships same day |
132 |
192-9513
|
Long rear squeegee strap (OBSOLETE) |
$46.35
|
1 |
(series 1) |
usually ships 24-40 days |
133 |
192-9514
|
Left rear squeegee strap |
$5.97
|
1 |
(series 1) |
ships same day |
134 |
192-0206
|
Washer M5 |
$1.80
|
2 |
(series 1) |
ships same day |
135 |
192-1003
|
Screw M5 x 35mm raised cheese head torx |
$2.56
|
2 |
(series 1) |
ships same day |
136 |
192-9517
|
Rear right squeegee strap |
$5.97
|
1 |
(series 1) |
ships same day |
137 |
192-9519
|
Front squeegee strap |
$70.08
|
1 |
(series 1) |
usually ships 24-40 days |
N/S |
192-1872
|
Grease |
$11.99
|
1 |
|
ships same day |
