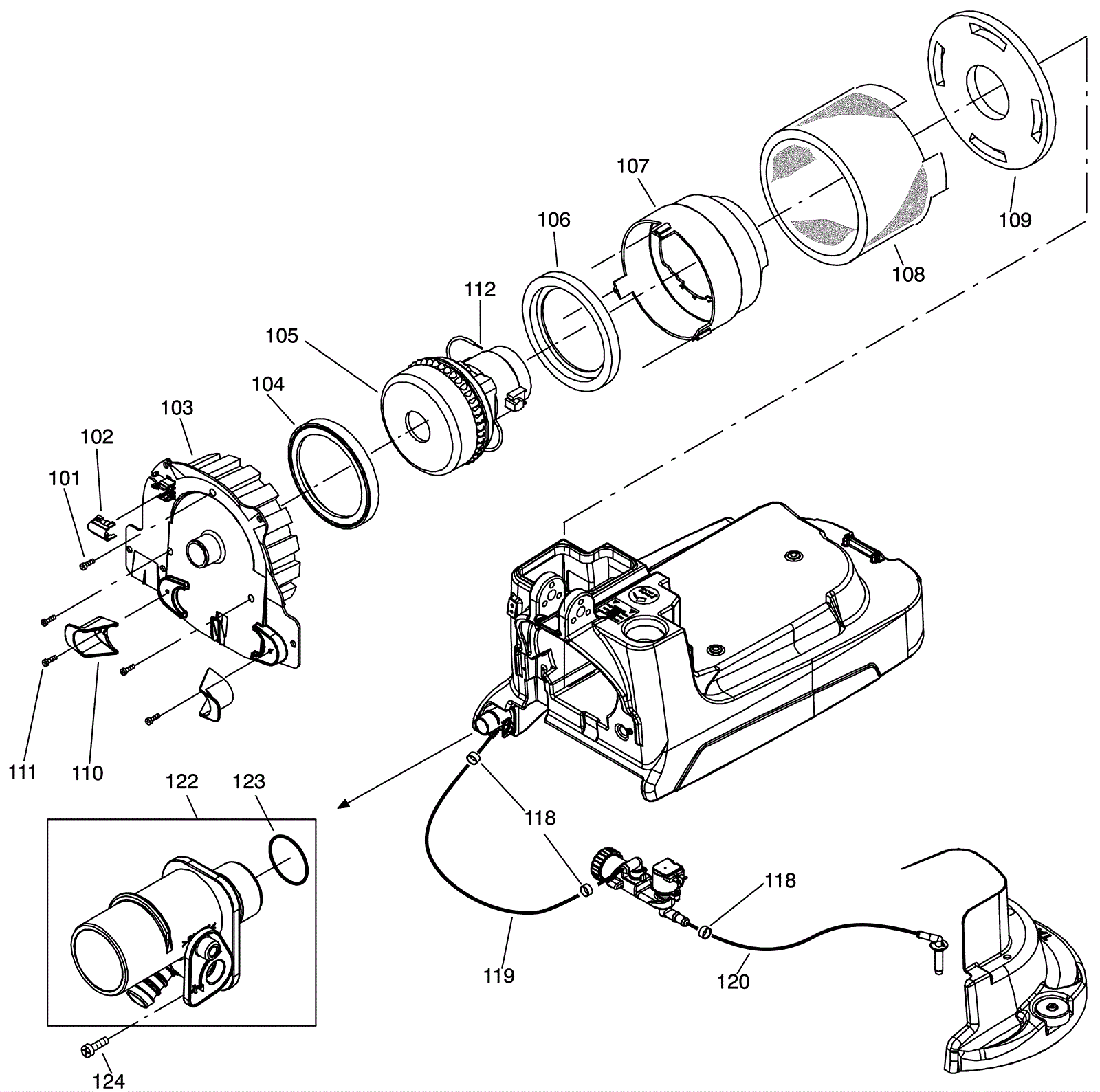

SWINGO 455B Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-6286 Screw KA 40 x 18 $2.44 3 usually ships 30-75 days
102 192-9585 Cover $2.68 1 usually ships 30-75 days
103 192-8914 Vacuum unit cover $24.90 1 usually ships 30-75 days
104 192-1562 Guide ring $7.39 1 ships same day
105a 192-0770 24V 2 stage vacuum motor $257.63 1 (series 1) ships same day
105b 292-8095 24V 16amp vacuum motor $95.00 1 (series 2) ships same day
106 192-8915 Sealing ring $9.59 1 usually ships 30-75 days
107 192-0774 Motor housing $19.98 1 usually ships 30-75 days
108 192-8916 Sound damping $15.51 1 usually ships 30-75 days
109 192-8917 Sound damping $7.33 1 usually ships 30-75 days
110 192-2550 Holder $2.88 2 (BMS) ships same day
111 192-1571 Screw M50 x 16mm $2.44 2 (BMS) ships same day
112 192-7525 Wire sleeve $5.57 2 ships same day
118 192-0334 Hose clamp $3.26 3 usually ships 12-29 days
119 192-0400 Wire reinforced hose (sold by the inch) $0.99 38 in ships same day
120 192-0404 Wire reinforced hose (sold by the inch) $0.99 26 in ships same day
122 192-9972 Water regulation kit $21.44 1 (includes 123) ships same day
123 192-5369 O-ring $2.44 1 ships same day
124 192-1561 Screw 60 x 20 torx head $2.44 1 ships same day
