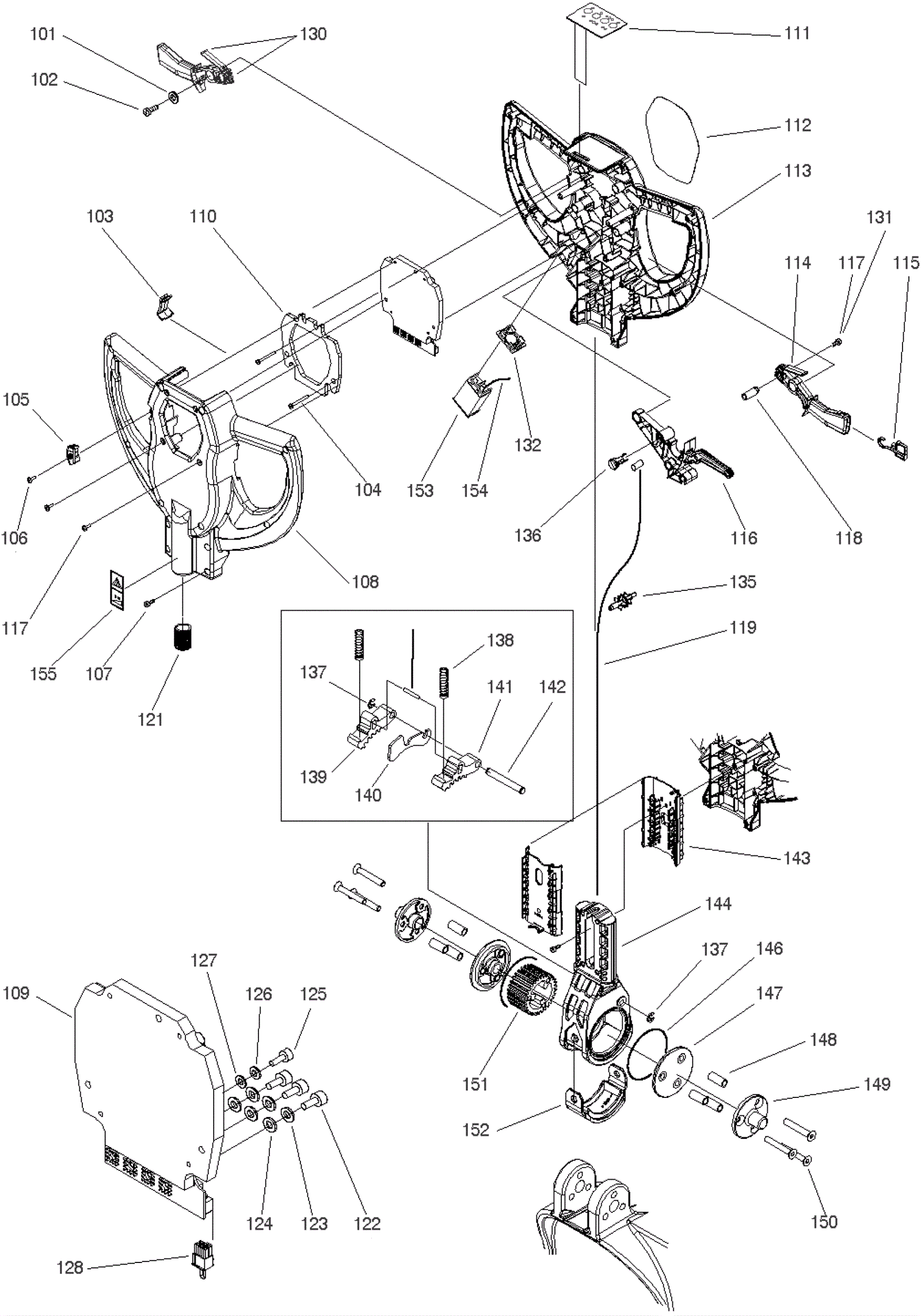

SWINGO 455B Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0705 Washer $2.44 2 usually ships 30-75 days
102 192-9948 Screw KA 50 x 30 $2.44 2 ships same day
103 192-9949 Cover $2.44 1 ships same day
104 192-6281 Screw KA 40 x 35 $5.98 3 usually ships 30-75 days
105 192-8792 Cover $2.44 1 usually ships 30-75 days
106 192-6282 Screw KA 30 x 10 $3.54 1 ships same day
107 192-0539 Screw 50 x 20 $2.44 13 ships same day
108 192-8793 Rear handle $40.41 1 ships same day
109 192-8794 Control board (eco) $549.25 1 ships same day
110 192-8796 Gasket $4.10 1 usually ships 30-75 days
111 192-9950 Control panel and ribbon cable $70.94 1 ships same day
112 192-8797 Decorative decal $5.81 1 ships same day
113 192-8798 Front handle $40.41 1 ships same day
114 192-8799 Trigger lever $6.06 2 usually ships 30-75 days
115 192-8800 Push button $2.44 2 ships same day
116 192-9951 Lever $6.42 1 ships same day
117 192-0148 Screw M4 x 10mm raised cheese head $2.44 5 usually ships 30-75 days
118 192-8802 Bolt with magnet $15.51 1 usually ships 30-75 days
119 192-9952 Bowden cable $23.44 1 ships same day
121 192-8805 Hose $16.49 1 ships same day
122 192-0407 Screw M5 x 10mm socket head cap $0.89 3 ships same day
123 192-1537 Washer M5 serrated lock $2.44 3 ships same day
124 192-0880 Washer M5 $0.89 3 ships same day
125 192-0425 Screw M4 x 10mm socket head cap $2.44 1 usually ships 30-75 days
126 999-0315 Washer #8 external star lock zinc plated $0.99 1 ships same day
127 192-1195 Washer M4 $2.44 1 ships same day
128 192-8806 Jumper $15.75 1 (non BMS) ships same day
130 192-1872 Grease $11.99 1 ships same day
131 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
132 192-3548 False cover $4.10 1 ships same day
135 192-9953 Roll $2.44 1 usually ships 30-75 days
136 192-9954 Eccentric shaft $4.22 1 ships same day
137 192-0902 Snap ring $2.44 2 ships same day
138 192-9955 Pressure spring $5.37 2 ships same day
139 192-9956 Toothed rocker $16.61 1 ships same day
140 192-9957 Plate $2.44 1 ships same day
141 192-9958 Toothed rocker $16.61 1 usually ships 30-75 days
142 192-9959 Axle $6.35 1 ships same day
143 192-9960 Guide bar $10.38 1 ships same day
144a 292-9454 Articulation $58.61 1 (series 1) ships same day
144b 292-9454 Articulation $58.61 1 (series 2) ships same day
146 192-8912 O-ring $2.44 2 usually ships 30-75 days
147 192-8810 Retaining plate $12.45 2 ships same day
148 192-9962 Bushing $6.23 6 ships same day
149 192-9963 Cover disc $7.94 2 usually ships 30-75 days
150 192-9964 Screw M8 x 55mm countersunk $2.44 6 ships same day
151 192-9965 Toothed wheel $47.44 1 ships same day
152 192-9966 Cover $2.76 1 ships same day
153 192-0033 24V hour meter $81.88 1 (optional) usually ships 30-75 days
154 192-9486 Wiring harness $7.28 1 (optional) usually ships 30-75 days
155 192-8817 2% decal (OBSOLETE) $2.44 1 usually ships 1-5 days
