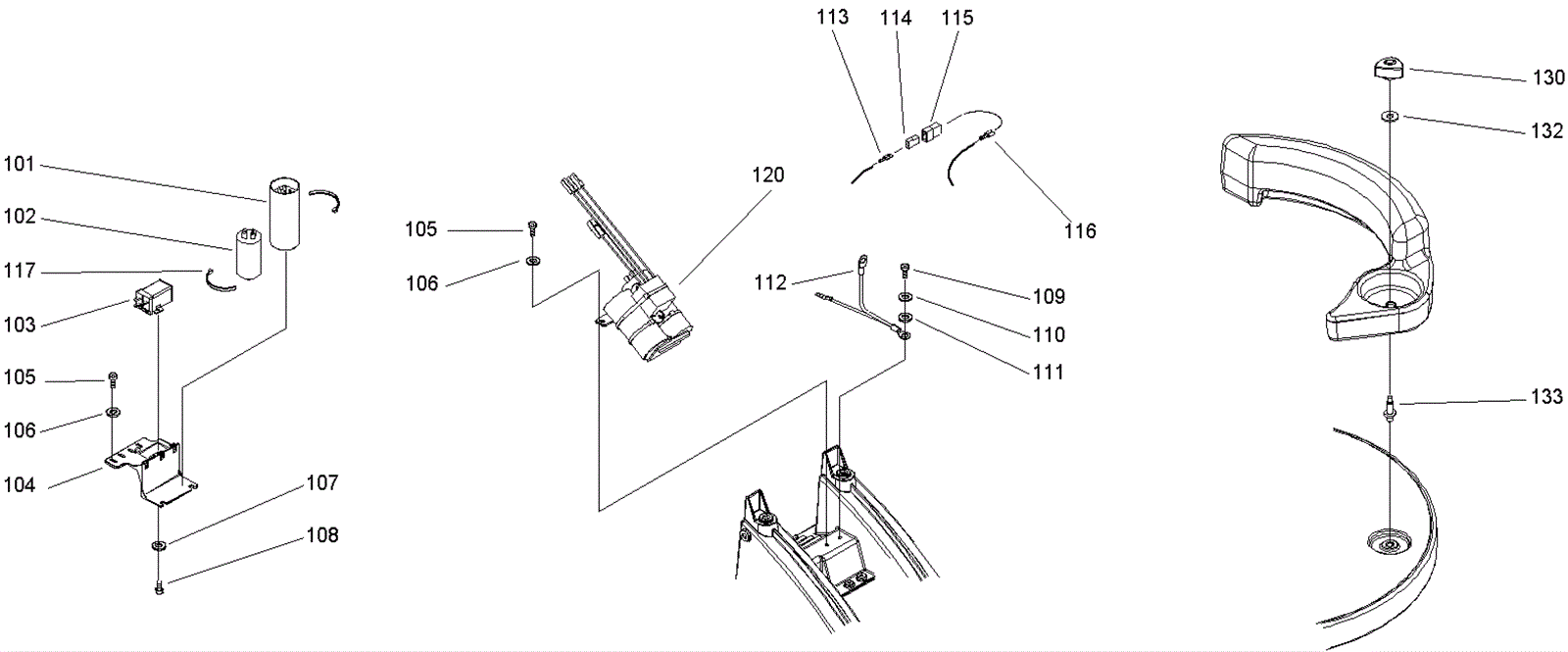

ERGODISC HD Electrical Components Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-5141 Start capacitor $32.31 1 usually ships 1-5 days
102 192-0665 Run capacitor (white) $11.11 1 ships same day
103 192-5993 230V Relay $140.17 1 ships same day
104 292-5142 Support $3.12 1 usually ships 30-75 days
105 192-0035 Screw M5 x 16mm socket head cap $1.11 2 ships same day
106 192-0971 Washer $2.44 2 usually ships 30-75 days
107 192-0615 Washer $1.91 1 ships same day
108 192-1240 Screw M5 x 10mm raised cheese head $3.25 1 usually ships 30-75 days
109 192-0035 Screw M5 x 16mm socket head cap $1.11 1 ships same day
110 192-1537 Washer M5 serrated lock $2.44 1 ships same day
111 192-0382 Washer lock $2.44 1 usually ships 30-75 days
112 292-5143 Wire harness earthing $2.88 1 usually ships 1-5 days
113 192-3760 Flat crimp connector $2.44 5 usually ships 30-75 days
114a 192-5596 2 pole plug housing $2.44 1 usually ships 30-75 days
114b 192-1388 3 pole plug housing $2.44 1 usually ships 30-75 days
115a 192-3759 2 way flat connector housing $5.25 1 usually ships 30-75 days
115b 192-1387 3 way plug housing $2.44 1 usually ships 30-75 days
116 192-3592 Female plate clip $2.56 5 usually ships 30-75 days
117 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
120 292-5144 Electrical elements plate $194.46 1 ships same day
130 292-5146 Knob with plug $13.07 1 ships same day
132 192-0079 Washer $0.89 1 ships same day
133 292-5145 Flanged bolt $14.05 1 usually ships 1-5 days
