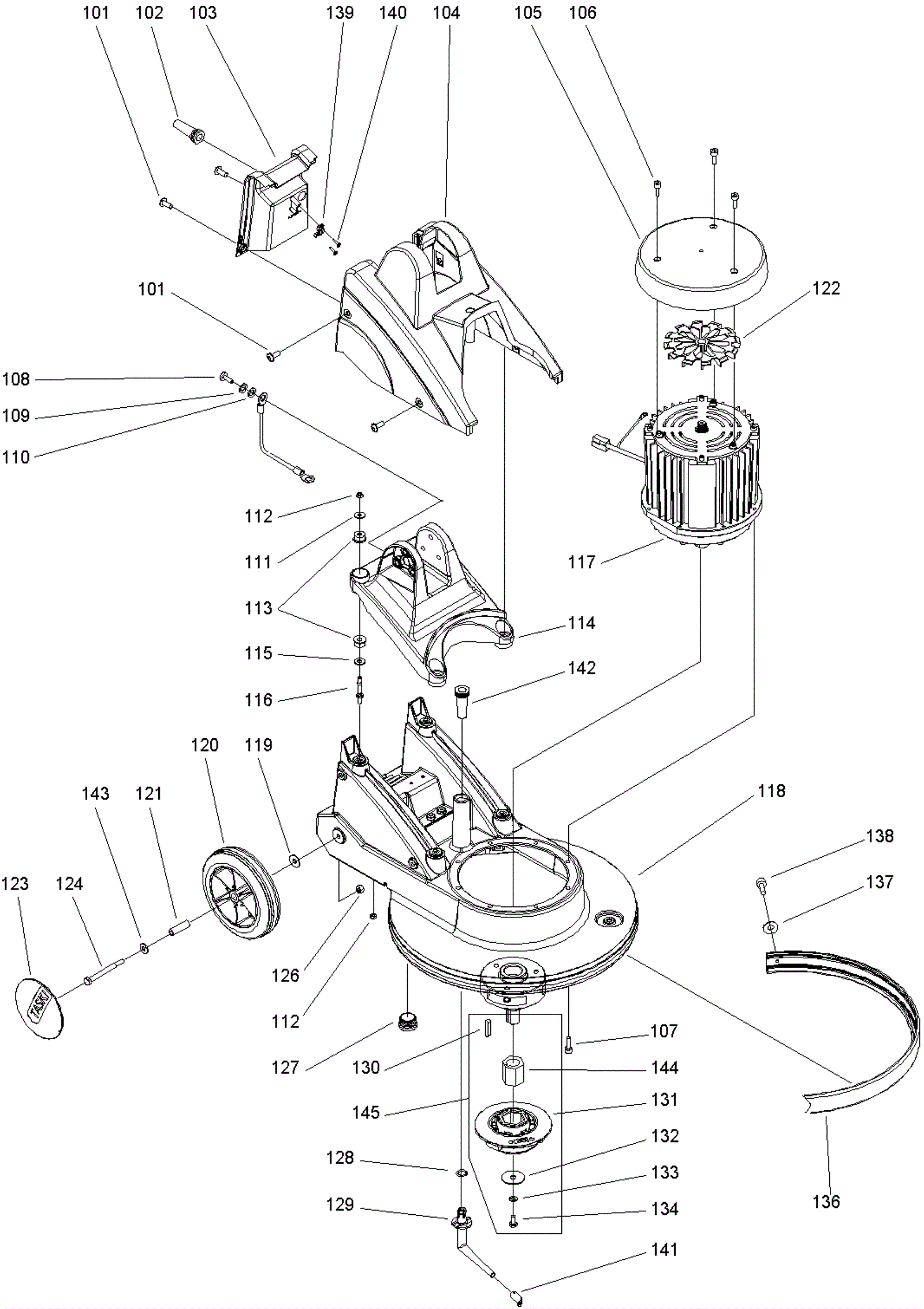

ERGODISC HD Base Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1524 Screw M8 x 20mm flange socket head $2.56 6 ships same day
102 192-2536 Cable grommet $2.56 1 usually ships 1-5 days
103 292-5127 Cover $14.36 1 usually ships 1-5 days
104 292-5128 Cover $75.38 1 usually ships 1-5 days
105 292-5129 Motor hood $22.90 1 usually ships 1-5 days
106 192-6489 Screw M6 x 16 socket head cap $2.56 3 usually ships 1-5 days
107 192-0158 Screw M6 x 20mm socket head cap $0.89 8 ships same day
108 292-5130 Screw M6-1 x 16mm torx $3.80 1 ships same day
109 192-0179 Washer M6 serrated lock $2.56 1 usually ships 19-25 days
110 192-6620 Washer spring $4.74 1 usually ships 1-5 days
111 192-7421 Washer $2.56 4 usually ships 19-25 days
112 192-0563 Nut M6 self-locking $2.56 8 ships same day
113 192-2322 Buffer $2.82 8 usually ships 19-25 days
114 292-5131 Support $100.25 1 usually ships 1-5 days
115 192-0079 Washer $0.89 4 ships same day
116 192-6809 Axle stud $5.26 4 usually ships 19-25 days
117 292-1021 240V gear motor Call for price 1 usually ships 19-25 days
118 292-5133 Chassis $405.82 1 usually ships 1-5 days
119 192-0604 Washer M8 $2.56 2 ships same day
120 192-7462 Wheel $64.23 2 usually ships 19-25 days
121 292-5134 Bushing $2.77 2 usually ships 1-5 days
122 292-5135 Fan blade $5.84 1 usually ships 1-5 days
123 192-7512 Wheel cover $10.33 2 usually ships 19-25 days
124 192-0646 Screw M8 x 90 hex head $2.56 2 usually ships 19-25 days
126 192-0510 Nut M8 self locking $2.56 2 ships same day
127 292-5136 Plug $2.56 1 usually ships 1-5 days
128 192-9233 O-ring $3.08 1 usually ships 19-25 days
129 292-5137 Angled nipple $2.56 1 usually ships 1-5 days
130 292-1022 Key Call for price 1 usually ships 19-25 days
131 292-1023 Brush coupling Call for price 1 usually ships 19-25 days
132 192-9557 Washer $18.34 1 usually ships 19-25 days
133 192-1180 Spring washer $2.56 1 usually ships 19-25 days
134 999-0783 Screw M8-1.25 x 16mm hex head $0.99 1 ships same day
136 292-5140 Protecting profile $21.67 1 usually ships 1-5 days
137 192-7420 Washer 6/16 $4.95 2 usually ships 19-25 days
138 192-6489 Screw M6 x 16 socket head cap $2.56 2 usually ships 1-5 days
139 192-2496 Cable clamp $2.56 1 usually ships 19-25 days
140 192-0547 Screw KA 40 x 14 $2.56 2 ships same day
141 292-5132 Pipe bend $2.56 1 usually ships 1-5 days
142 192-0550 Strain relief $2.56 1 ships same day
143 192-0604 Washer M8 $2.56 2 ships same day
144 292-1024 Bushing Call for price 1 usually ships 19-25 days
145 292-5139 Brush coupling $104.10 1 usually ships 19-25 days
N/S 192-4850 Lubricant oks 420 1kg $443.59 1 usually ships 1-5 days
