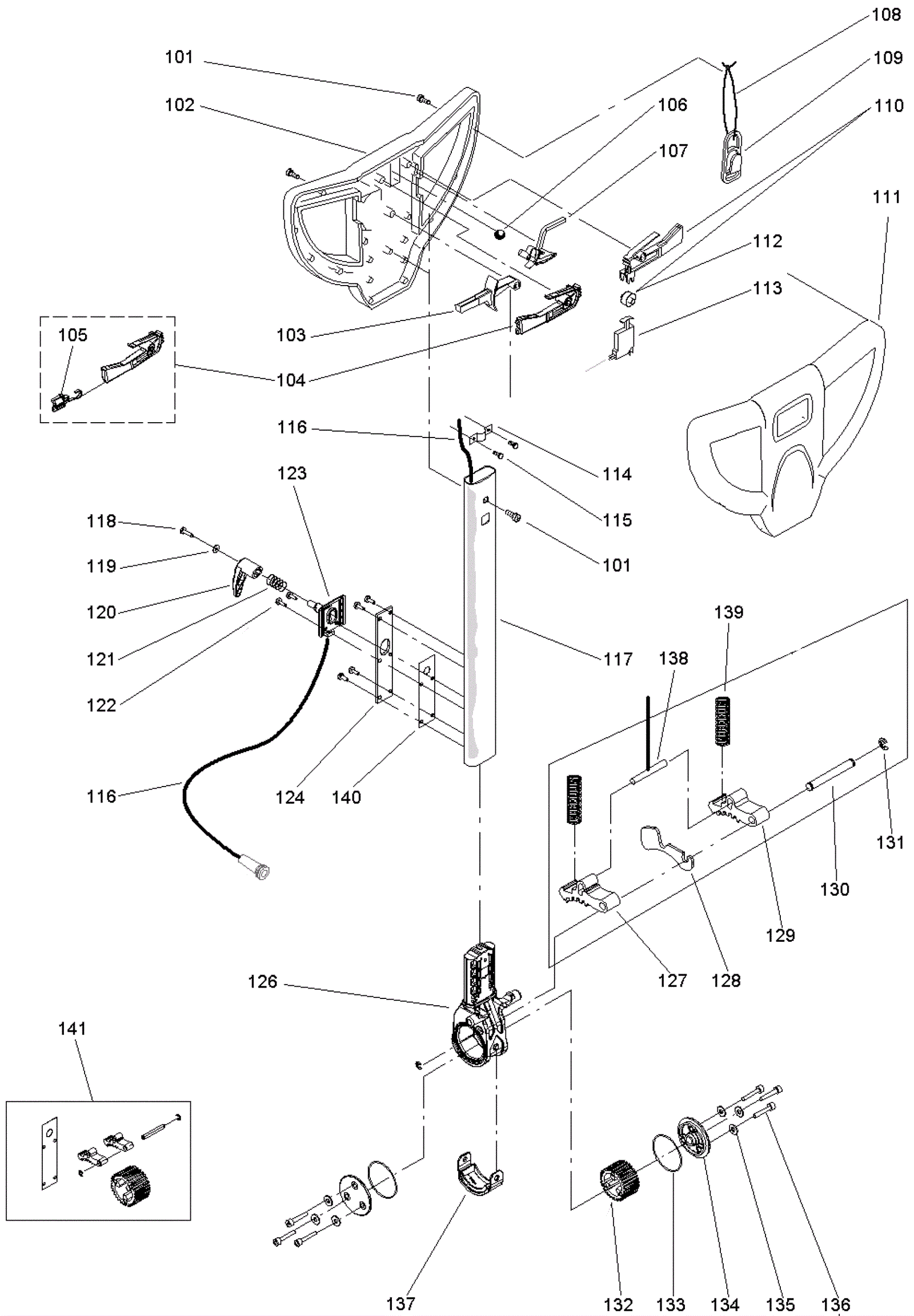

ERGODISC HD Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0539 Screw 50 x 20 $2.56 22 ships same day
102 192-0552 Rear handle $36.74 1 ships same day
103 192-0553 Disengaging lever $3.16 1 ships same day
104 192-0554 Right hand switch lever with key $8.54 1 (includes 105) usually ships 17-21 days
105 192-0555 Push button $2.56 1 usually ships 17-21 days
106 192-0566 Ball $2.56 1 usually ships 17-21 days
107 192-6579 Spray lever $7.69 1 usually ships 17-21 days
108 192-0568 Retention loop $4.95 1 usually ships 17-21 days
109 192-0569 Hook (OBSOLETE) $2.88 1 usually ships 17-21 days
110 192-0570 Left hand switch lever with roller $8.15 1 (includes 112) ships same day
111 192-0571 Front handle $34.56 1 ships same day
112 192-0572 Roller $2.56 1 ships same day
113a 192-5795 12amp protective motor switch $2.56 1 ships same day
113b 192-0587 16amp protective motor switch $51.49 1 ships same day
114 192-2496 Cable clamp $2.56 1 usually ships 17-21 days
115 192-0452 Screw for plastic KA 30 x 16mm $2.56 2 usually ships 17-21 days
116a 292-5147 Connecting cable $13.28 1 usually ships 17-21 days
116b 292-1019 Connecting cable Call for price 1 usually ships 17-21 days
117 292-5148 Guide bar $68.20 1 usually ships 1-5 days
118 192-0547 Screw KA 40 x 14 $2.56 1 ships same day
119 192-0971 Washer $2.56 1 ships same day
120 192-0558 Cable hook $3.66 1 ships same day
121 192-5680 Pressure spring $6.53 1 ships same day
122 292-0182 Screw M6 x 20mm $4.36 6 usually ships 17-21 days
123 292-0183 Support $4.18 1 usually ships 17-21 days
124 292-0181 Cover $11.11 1 usually ships 1-5 days
126 292-5149 Articulation $61.23 1 usually ships 1-5 days
127 192-9956 Toothed rocker $17.44 1 ships same day
128 192-9957 Plate $2.56 1 ships same day
129 192-9958 Toothed rocker $17.44 1 usually ships 17-21 days
130 192-9959 Axle $6.67 1 ships same day
131 192-0902 Snap ring $2.56 2 ships same day
132 192-9965 Toothed wheel $49.82 1 ships same day
133 192-8912 O-ring $2.56 2 ships same day
134 192-8810 Retaining plate $13.08 2 ships same day
135 192-0079 Washer $0.89 6 ships same day
136 192-0082 Screw M8 x 40mm socket head cap $0.89 6 ships same day
137 192-9966 Cover $2.89 1 ships same day
138 292-5150 Bowden cable $33.92 1 usually ships 1-5 days
139 192-9955 Pressure spring $5.64 2 ships same day
141 292-1020 Toothed wheel set Call for price 1 usually ships 17-21 days
140 292-8603 Gasket $11.79 1 usually ships 17-21 days
N/S 192-1872 Grease $11.99 1 ships same day
N/S 192-0102 7 3/4 inch cable tie $2.56 1 usually ships 17-21 days
N/S 192-0467 Lite thread lock compound $249.05 1 usually ships 1-5 days
