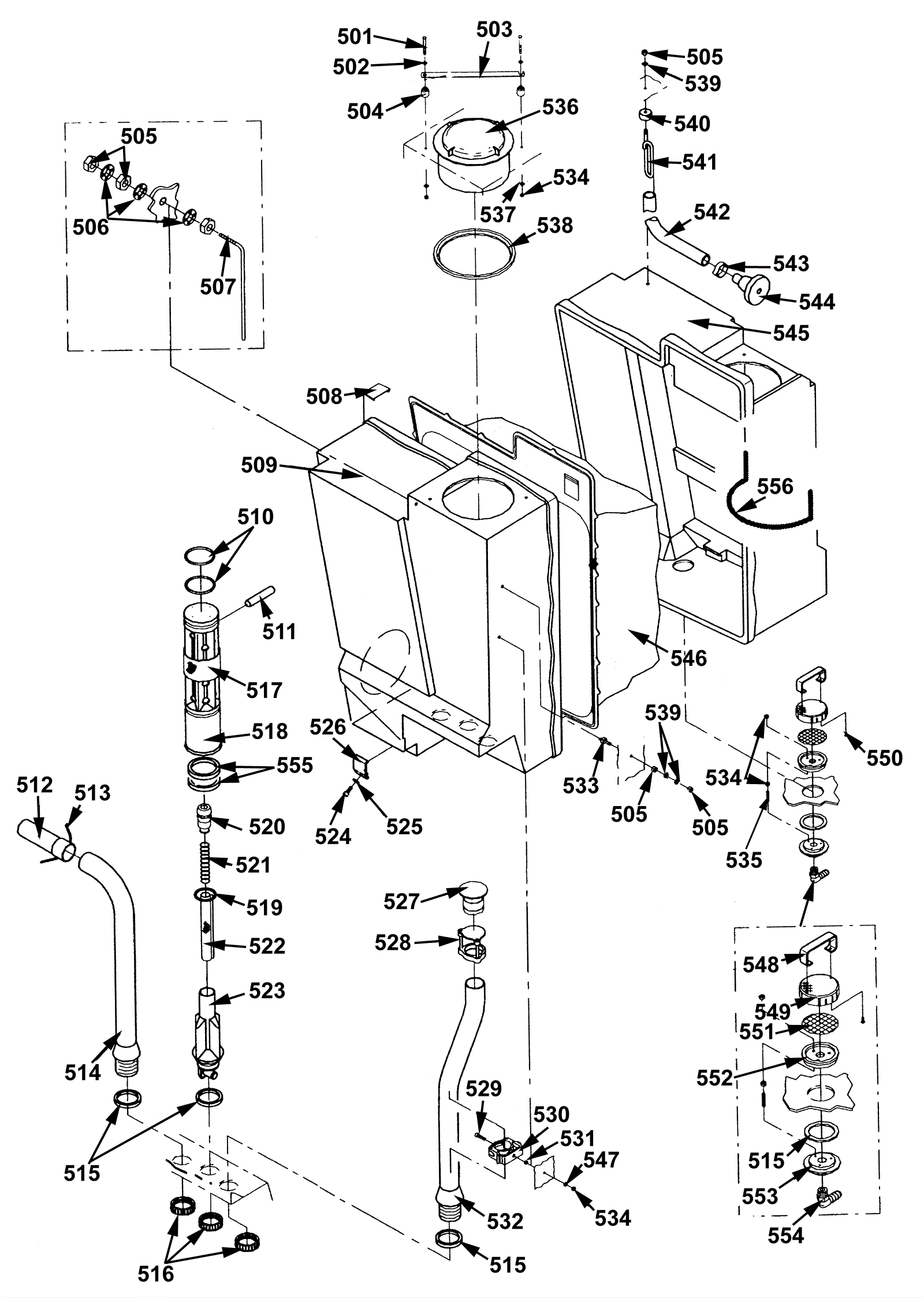

COMBIMAT 1900 Tank Assembly - Series 2-3 - Before 02.1997

#PartDescription ReqNotesAvailability
501 192-0174 Screw M5 x 35 hexagon 4 usually ships 11-14 days
502 192-0175 Washer countersunk 8 usually ships 18-25 days
503 192-1454 Protector 2 usually ships 1-5 days
504 192-0177 Spacer 4 usually ships 18-25 days
505 999-1308 Nut M6-1 hex stainless steel 6 usually ships 11-14 days
506 192-0179 Washer M6 serrated lock 3 usually ships 18-25 days
507 192-0180 Probe 1 usually ships 18-25 days
508 192-0181 Protector 25 usually ships 18-25 days
509 192-0182 Recovery tank 1 usually ships 1-5 days
510 192-0220 O-ring 2 usually ships 18-25 days
511 192-0221 Pin 1 usually ships 18-25 days
512 192-0231 Hose (sold by the inch) (OBSOLETE) 16 in usually ships 1-5 days
513 192-0102 7 3/4 inch cable tie 1 usually ships 18-25 days
514 192-0230 Pipe elbow (OBSOLETE) 1 usually ships 18-25 days
515 192-0186 Gasket 4 usually ships 18-25 days
516 192-0187 Threaded collar 3 usually ships 18-25 days
517 192-0222 10 inch outer filter sleeve 1 usually ships 18-25 days
518 192-0223 Filter cage 1 usually ships 18-25 days
519 192-0227 O-ring 17.2 x 2.62mm 1 usually ships 18-25 days
520 192-0225 Cone 1 usually ships 18-25 days
521 192-0226 Pressure spring 1 usually ships 18-25 days
522 192-0228 Inner filter sleeve 1 usually ships 18-25 days
523 192-0229 Outlet 1 usually ships 1-5 days
524 192-0036 Screw M8 x 20mm socket head 2 usually ships 18-25 days
525 192-0079 Washer 2 usually ships 18-25 days
526 192-0188 Tank mounting bracket 2 usually ships 1-5 days
527 192-0189 Suction tube filter 1 usually ships 18-25 days
528 192-0190 Protection flap 1 usually ships 18-25 days
529 192-0035 Screw M5 x 16mm socket head cap 1 usually ships 18-25 days
530 192-0191 Hose bracket 1 usually ships 1-5 days
531 192-4207 Hexagon nut M5 (OBSOLETE) 1 usually ships 1-5 days
532 192-0193 Intake 1 usually ships 18-25 days
533 192-0194 Screw M6 x 20mm socket head cap 1 usually ships 18-25 days
534 192-0195 Nut M5 hex 11 usually ships 1-5 days
535 192-0196 Screw M5 x 25 grub 3 usually ships 18-25 days
536 192-0197 Cover 2 usually ships 18-25 days
537 192-0971 Washer 4 usually ships 18-25 days
538 192-0199 Gasket 2 usually ships 18-25 days
539 192-0200 Washer M6 3 usually ships 18-25 days
540 192-0201 Bushing (OBSOLETE) 1 usually ships 1-5 days
541 192-0202 Hose holder 1 usually ships 1-5 days
542 192-0203 Hose (sold by the inch) 70 in usually ships 18-25 days
543 192-0204 Hose clamp 1 usually ships 18-25 days
544 192-0205 Filling hose 1 usually ships 18-25 days
545 192-0183 Solution tank 1 usually ships 1-5 days
546 192-0184 Tank membrane (OBSOLETE) 1 usually ships 18-25 days
547 192-0206 Washer M5 1 usually ships 18-25 days
548 192-0207 Bracket 1 usually ships 18-25 days
549 192-0208 Filter 1 usually ships 18-25 days
550 192-0209 Screw M3 x 8 recessed countersunk head 2 usually ships 18-25 days
551 192-0210 Filter 1 usually ships 18-25 days
552 192-0211 Flange 1 usually ships 18-25 days
553 192-0212 Flange 1 usually ships 18-25 days
554 192-0213 90 degree fitting 1 usually ships 1-5 days
555 192-6322 Sealing ring (OBSOLETE) 2 (series 3) (after 06.1995) usually ships 1-5 days
556 192-0214 Handle 1 (series 3) (after 06.1995) usually ships 1-5 days
